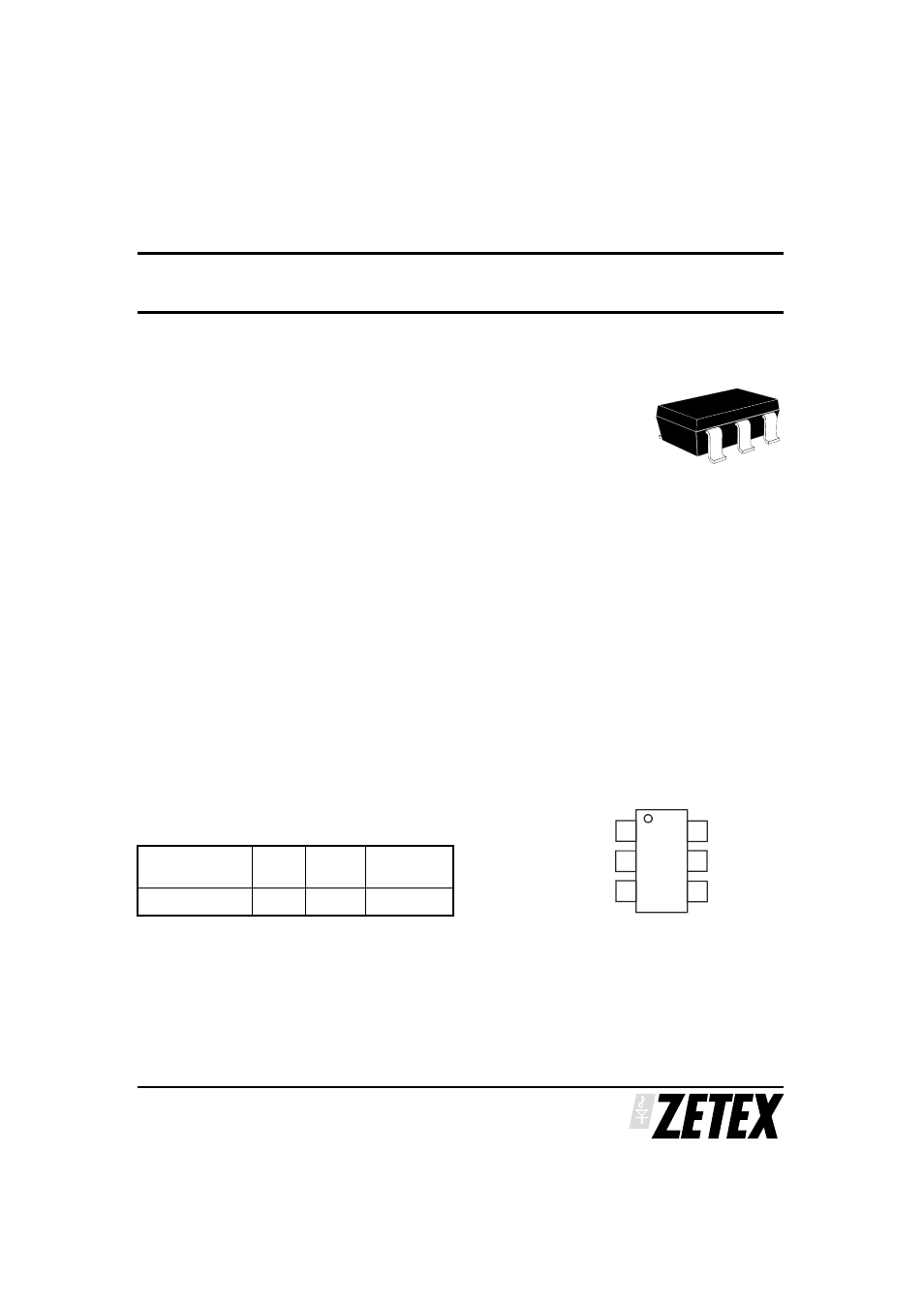

DESCRIPTION
The ZXSC400 is a voltage mode boost converter in the SOT23-6 package. Its low
feedback voltage allows the current in a chain of LEDs to be set and accurately
monitored with a single resistor giving minimal losses. Its excellent load and line
regulation means that for the full supply range from lithium-ion cells, the LED
current will typically change by less than 1%. Using high efficiency Zetex switching
transistors with ratings of 20V and higher allow many LEDs to be chained in series
for the best LED current matching possible.
FEATURES
•
1.8V to 8V supply range
•
Typical output regulation of Ϯ1%
•
Over 80% typical efficiency
•
4.5 ␮A typical shutdown current
•
Series connection for ultimate LED current matching
APPLICATIONS
•
White LED backlighting for colour LCD panels
•
General LED backlighting
•
High performance white LED flashlights
•
General LED driving from batteries
DEVICE MARKING
•
C400
ZXSC400
ISSUE 1 - JANUARY 2003
1
LED DRIVER BOOST CONVERTER
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY
PER REEL
ZXSC400E6TA 7“ 8mm 3000 units
ORDERING INFORMATION
STDN
GND
V
CC
DRIVE
SENSE
V
FB
PINOUT
SOT23-6
Top View
