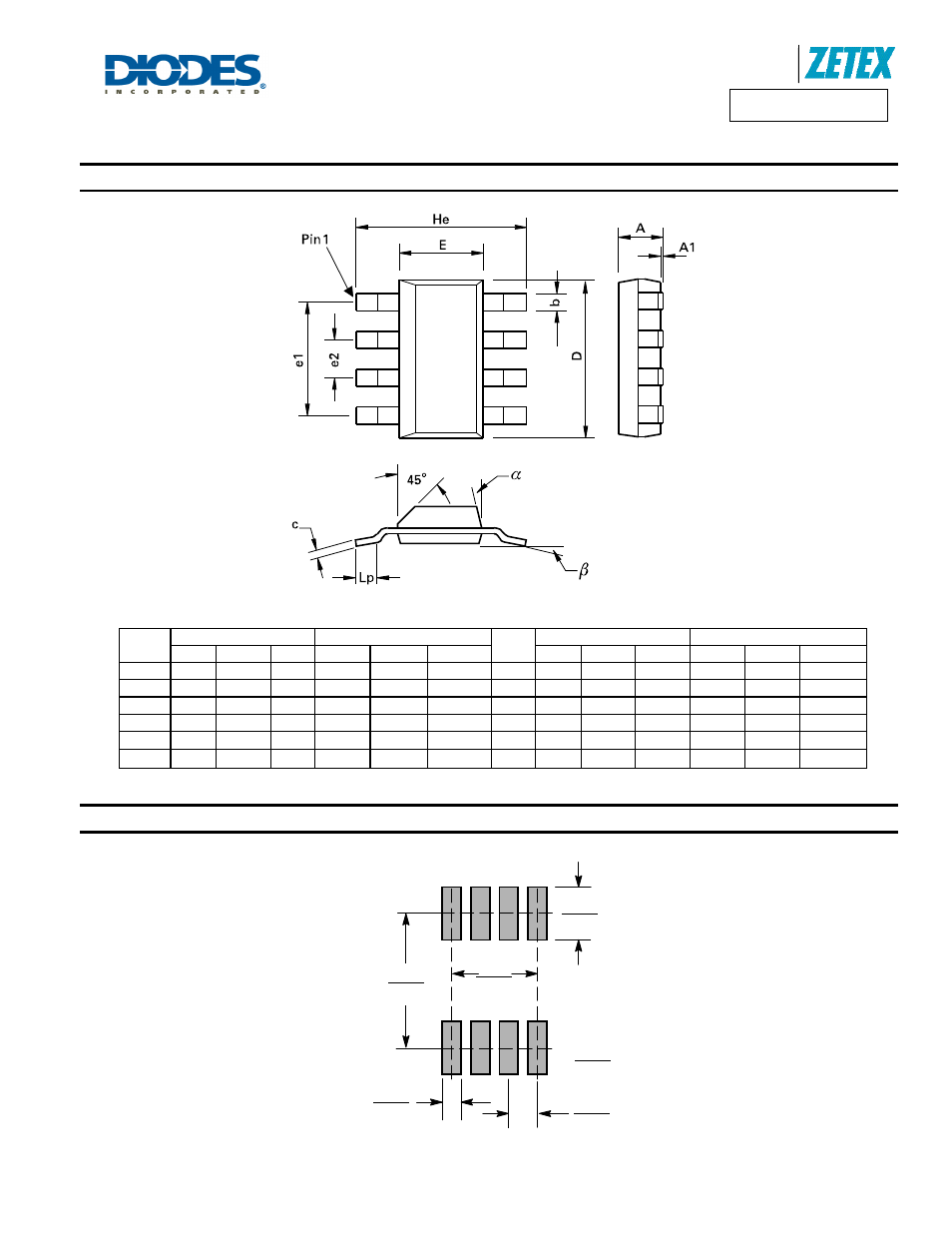

Package Outline Dimensions
DIM Millimeters Inches DIM Millimeters Inches
Min Max Typ. Min Max Typ. Min Max Typ. Min Max Typ.
A - 1.7 - - 0.067 - e1 - - 4.59 - - 0.1807
A1 0.02 0.1 - 0.008 0.004 - e2 - - 1.53 - - 0.0602
b - - 0.7 - - 0.0275 He 6.7 7.3 - 0.264 0.287 -
c 0.24 0.32 - 0.009 0.013 - Lp 0.9 - - 0.035 - -
D 6.3 6.7 - 0.248 0.264 - α - 15° - - 15° -
E 3.3 3.7 - 0.130 0.145 - β - - 10° - - 10°
Suggested Pad Layout
2.8
0.110
6.8
0.268
4.6
0.181
0.95
0.037
1.52
0.060
mm
inches
