Diodes ZXMS6005DT8 - Manual (Page 2)

ZXMS6005DT8
Document number: DS32248 Rev. 2 - 2
2 of 9
www.diodes.com
March 2013
© Diodes Incorporated
ZXMS6005DT8
ADVAN
CE I
N
F
O
RM
ATI
O
N
IntelliFET ® is a trademark of Diodes Incorporated, registered in the United States and other jurisdictions worldwide.
A Product Line of
Diodes Incorporated

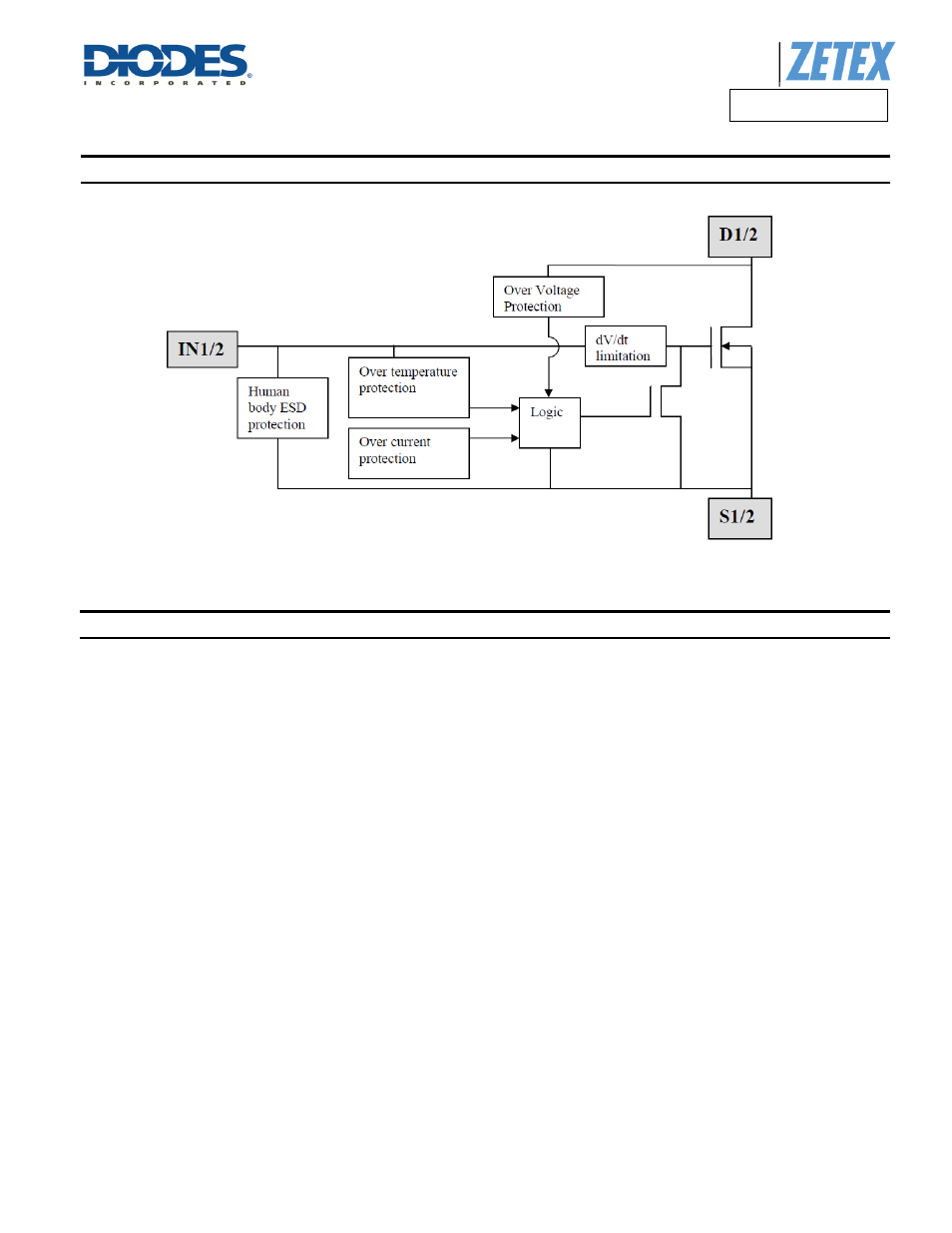

Functional Block Diagram
Application Information
 Two completely isolated independent channels
 Especially suited for loads with a high in-rush current such as lamps and motors.
 All types of resistive, inductive and capacitive loads in switching applications.
 μC compatible power switch for 12V DC applications.
 Automotive rated.
 Replaces electromechanical relays and discrete circuits.
 Linear Mode capability - the current-limiting protection circuitry is designed to de-activate at low V
DS
to minimise on state power dissipation.
The maximum DC operating current is therefore determined by the thermal capability of the package/board combination, rather than by the
protection circuitry. This does not compromise the product’s ability to self-protect at low V
DS
.
