Diodes ZXMS6005DT8 User Manual
Product summary, Description, Applications

ZXMS6005DT8
Document number: DS32248 Rev. 2 - 2
1 of 9
March 2013
© Diodes Incorporated
ZXMS6005DT8
ADVAN
CE I
N
F
O
RM
ATI
O
N
IntelliFET
®
is a trademark of Diodes Incorporated, registered in the United States and other jurisdictions worldwide.
A Product Line of
Diodes Incorporated
60V DUAL N-CHANNEL SELF PROTECTED ENHANCEMENT MODE
INTELLIFET
®
MOSFET
Product Summary
Continuos drain source voltage 60V
On-state resistance 200m
Nominal load current (V
IN
= 5V) 1.8A
Clamping Energy 210mJ
Description
The ZXMS6005DT8 is a dual self protected low side MOSFET with
logic level input. It integrates over-temperature, over-current, over-
voltage (active clamp) and ESD protected logic level functionality. The
ZXMS6005DT8 is ideal as a general purpose switch driven from 3.3V
or 5V microcontrollers in harsh environments where standard
MOSFETs are not rugged enough.
Applications
Lamp
Driver
Motor
Driver
Relay
Driver
Solenoid
Driver
Features and Benefits
Compact Dual Package
Low Input Current
Logic Level Input (3.3V and 5V)
Short Circuit Protection with Auto Restart
Over Voltage Protection (active clamp)
Thermal Shutdown with Auto Restart
Over-Current
Protection
Input Protection (ESD)
High Continuous Current Rating
Lead-Free Finish; RoHS compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SM-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish
Weight: 0.117 grams (approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXMS6005DT8TA
ZXMS6005D
7
12
1,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”

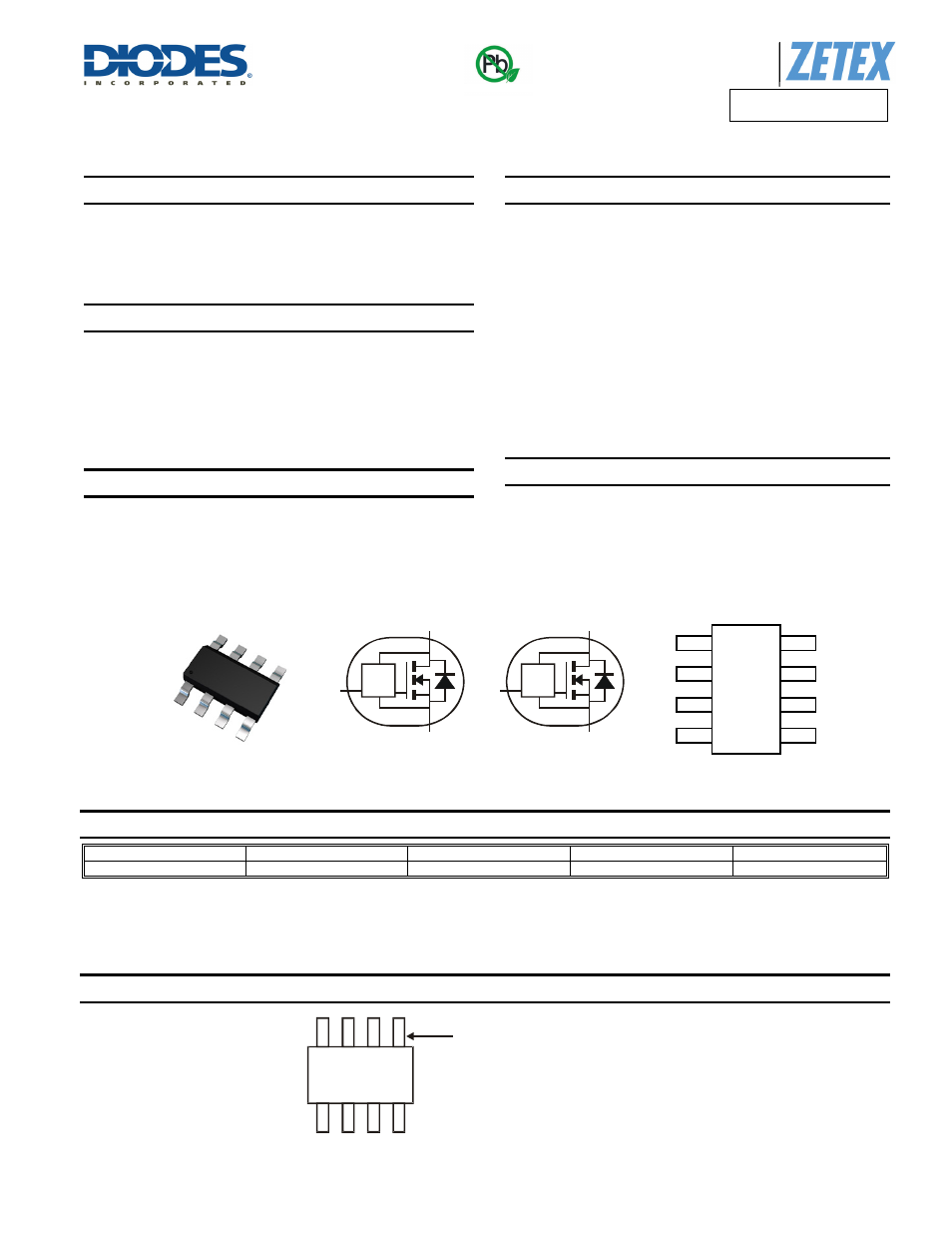

Marking Information
Top View
SM-8
Top view
Pin-Out
ZXMS6005D = Product Type Marking Code
Device Symbol
Top View
IN1
S1
S2
IN2
D1
D1
D2
D2
1
D2
S2
IN2
D1
S1
IN1
ZXMS
6005D
Pin 1
Green
