ZXMN10A11G
Document Number DS32056 Rev. 6 - 2
7 of 8
www.diodes.com
January 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXMN10A11G
ADVAN
CE I
N
F
O
RM
ATI
O
N

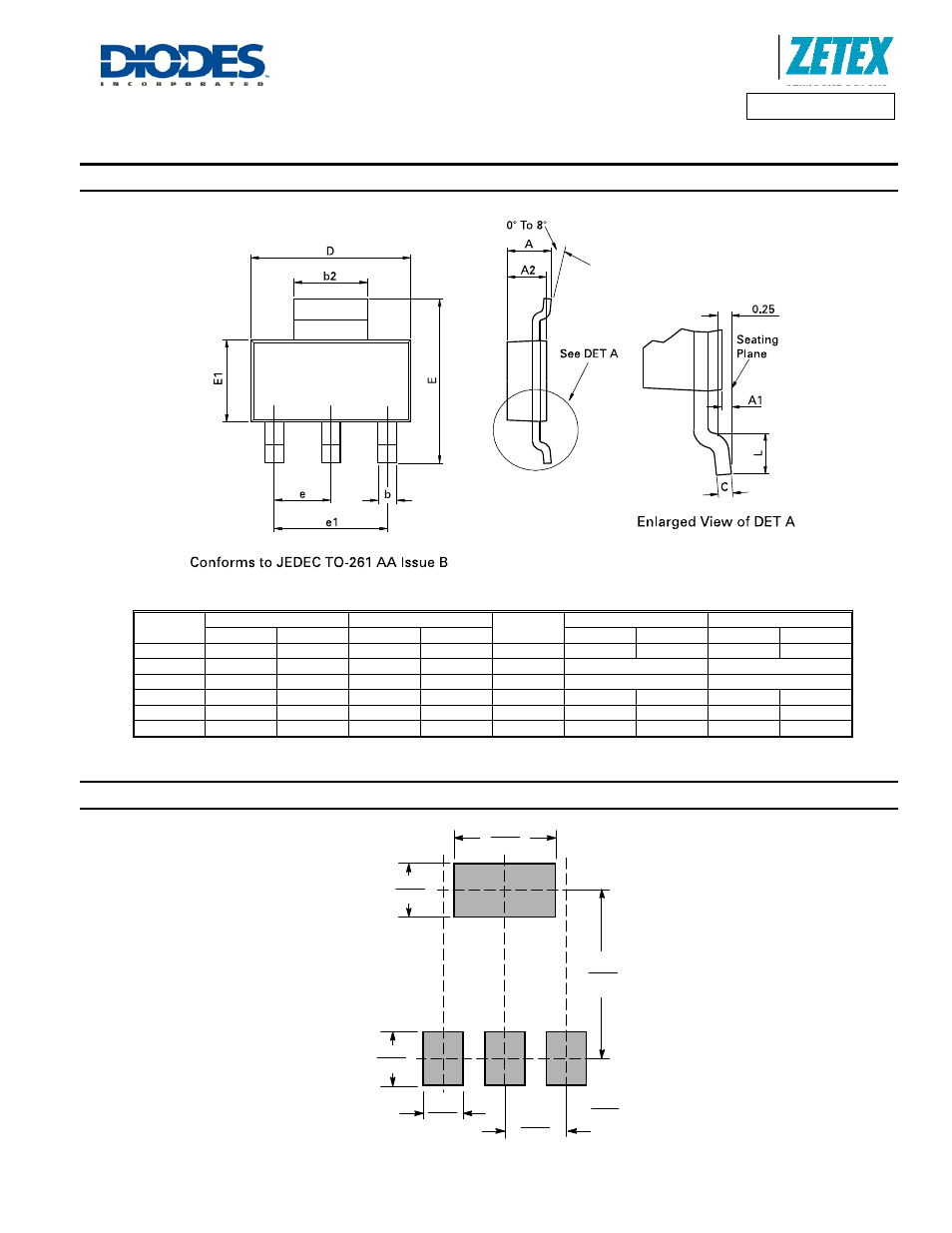

Package Outline Dimensions
DIM Millimeters Inches DIM Millimeters Inches
Min Max Min Max Min Max Min Max
A - 1.80 - 0.071 D 6.30 6.70 0.248 0.264
A1 0.02 0.10 0.0008 0.004 e 2.30 BSC 0.0905 BSC
A2 1.55 1.65 0.0610 0.0649 e1 4.60 BSC 0.181 BSC
b 0.66 0.84 0.026 0.033 E 6.70 7.30 0.264 0.287
b2 2.90 3.10 0.114 0.122 E1 3.30 3.70 0.130 0.146
C 0.23 0.33 0.009 0.013 L 0.90 - 0.355 -
Suggested Pad Layout
1.5
0.059
mm
inches
3.8
0.15
2.0
0.079
6.3
0.248
2.3
0.091
2.0
0.079
