ZXGD3101N8
Document Number DS31945 Rev. 1 - 2
1 of 14
June 2010
© Diodes Incorporated

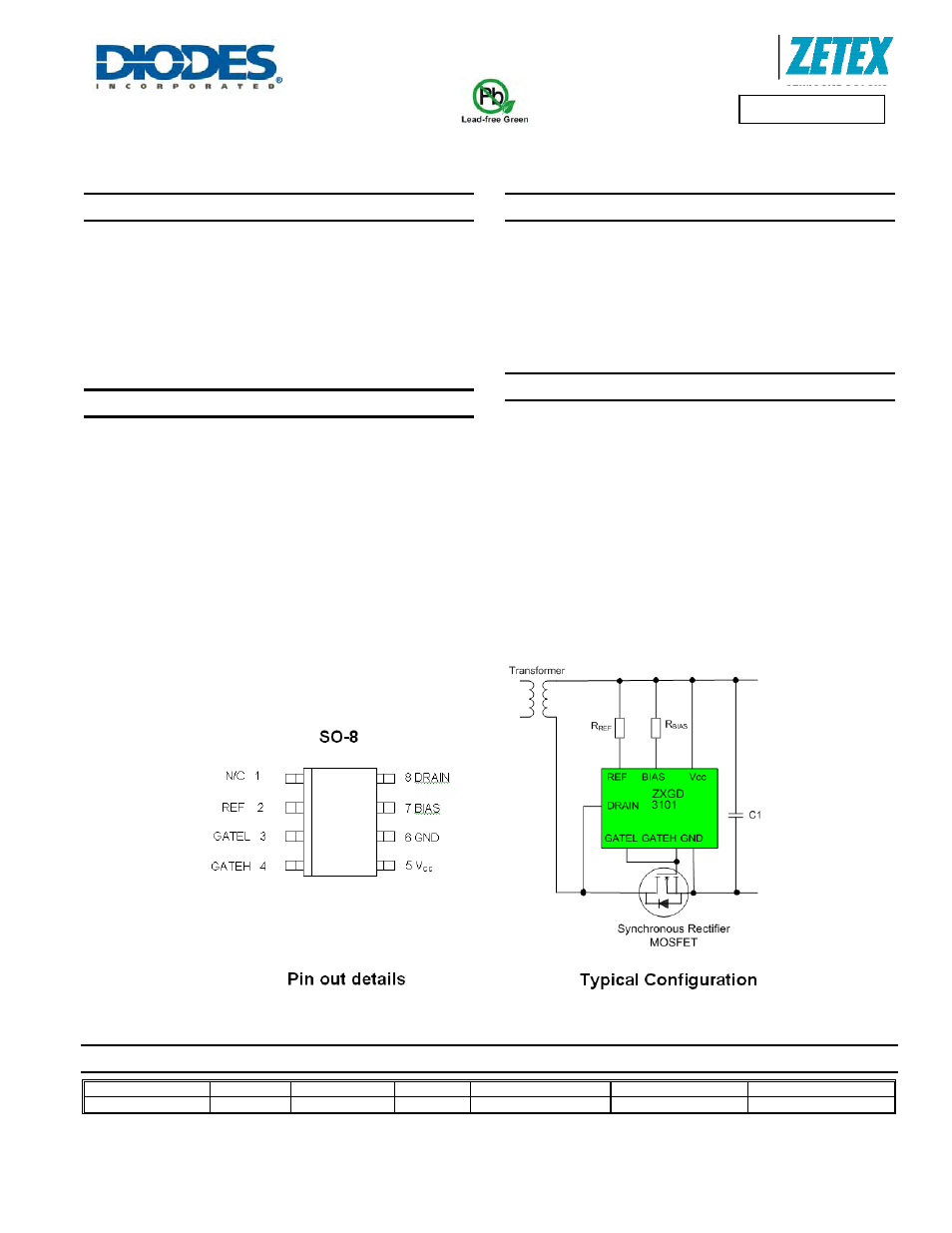

ZXGD3101N8
A Product Line of
Diodes Incorporated
S Y N C H R O N O U S R E C T I F I E R C O N T R O L L E R
Description
The ZXGD3101 is intended to drive MOSFETS configured as ideal
diode replacements. The device is comprised of a differential amplifier
detector stage and high current driver. The detector monitors the
reverse voltage of the MOSFET such that if body diode conduction
occurs a positive voltage is applied to the MOSFET’s Gate pin.
Once the positive voltage is applied to the Gate the MOSFET
switches on allowing reverse current flow. The detectors’ output
voltage is then proportional to the MOSFET Drain-Source reverse
voltage drop and this is applied to the Gate via the driver. This action
provides a rapid turn off as current decays.
Application
•
Flyback Converters in:
•
Adaptors
•
LCD Monitors
•
Server PSU’s
•
Set Top Boxes
•
LLC Converter in:
•
High Power Adaptors
•
LCD TV
•
Street Lighting
Refer to documents: AN54, AN69, DN90, DN91 and DN94 available
from the website
Features
•
Turn-off propagation delay 15ns and turn-off time 20ns.
•
Suitable for Discontinuous Mode (DCM), Critical
Conduction Mode (CrCM) and Continuous Mode (CCM)
operation
•
Compliant with Energy Star V2.0 and European Code of
Conduct V3
•
Halogen Free part
•
5-15V Vcc range
Mechanical Data
• Case:
SO-8
•
Marking Information: See Page 13
Ordering Information
Product
Status
Package
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXGD3101N8TC Active
SO-8 ZXGD3101
13
12
2500
