173.044, 173.045, 173.046, 173.048 User Manual
Introduction
Thank you for choosing our CG series guitar amplifier. Please read this manual prior to use to avoid damage to the item.
The CG range is specifically designed to give the guitar player a practical and powerful amplifier with classic tones.
Warning
To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do
not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.
Safety
 Prior to connecting mains, ensure that the supply voltage is correct and the mains lead is in good condition.
 Avoid ingress of water or particles into the enclosure.
 If the mains fuse blows, refer the unit to qualified service personnel
 Keep the unit out of direct sunlight and away from heat sources.
 Place the unit in an upright position during use and storage.
 Keep the unit away from moisture or dusty environments.
Cleaning
Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

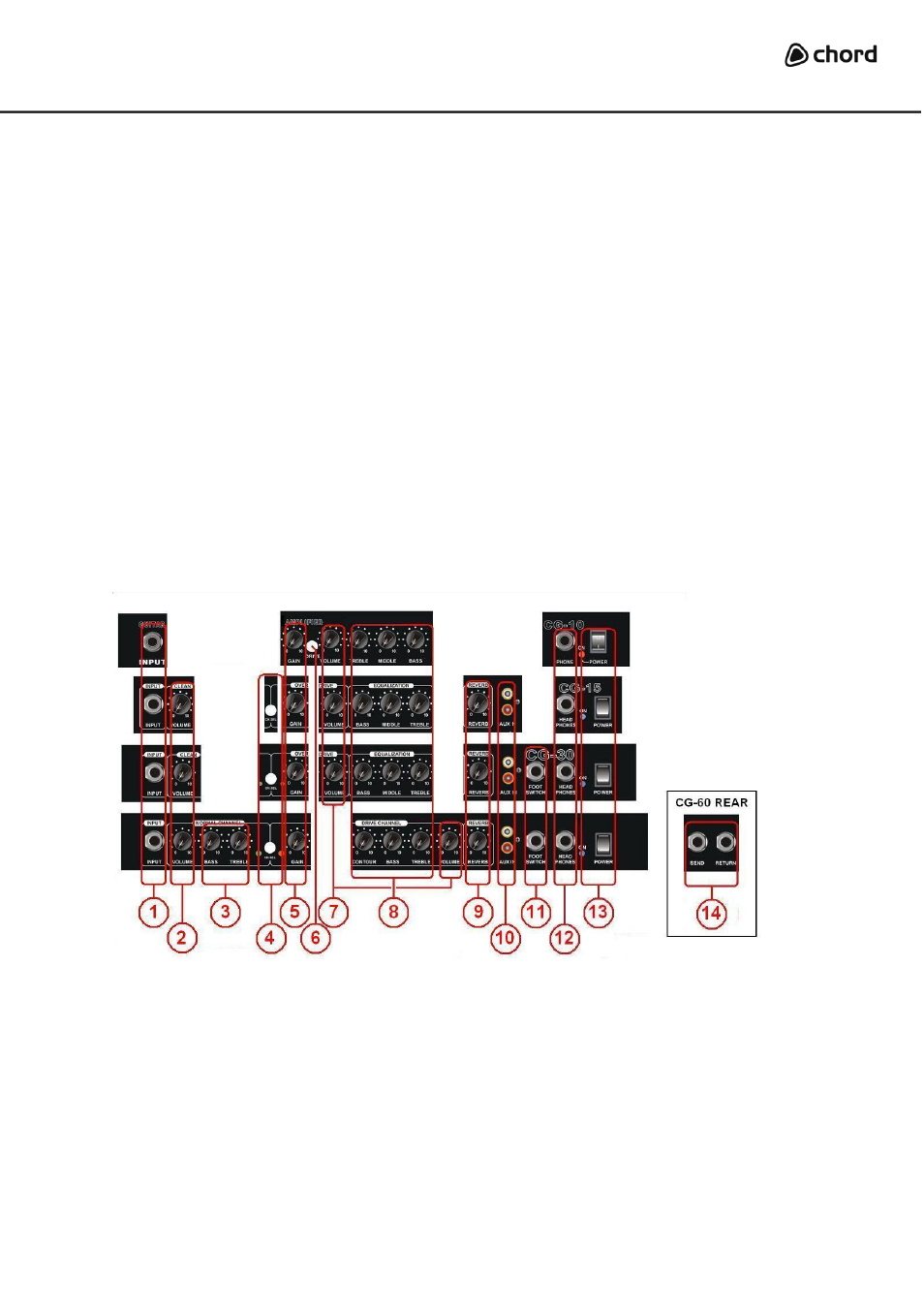

Control Panel
Rear Panel
1) INPUT – 6.3mm jack (unbalanced)
2) VOLUME – Volume for CLEAN channel
3) BASS + TREBLE – Tone controls for clean channel
4) CH/SEL – Channel switch CLEAN - OVERDRIVE
5) GAIN – Input drive level for OVERDRIVE channel or DRIVE effect
6) DRIVE – Switch for engaging the drive effect
7) VOLUME – Master volume control
8) EQ Section – BASS, MIDDLE (CONTOUR for CG-60) and TREBLE tone controls
9) REVERB – Level control for internal spring reverb effect
10) AUX IN – twin RCA line level input for playback devices like mp3 players etc.
11) FOOT SWITCH – 6.3mm jack input for channel footswitch
12) HEADPHONES – 6.3mm stereo jack headphone output (mutes speaker for silent practice)
13) POWER – power switch and indicator
14) SEND/RETURN – Loop for external effects (6.3mm jack, unbalanced)
