SD-50 Super Distortion Pedal
174.213UK

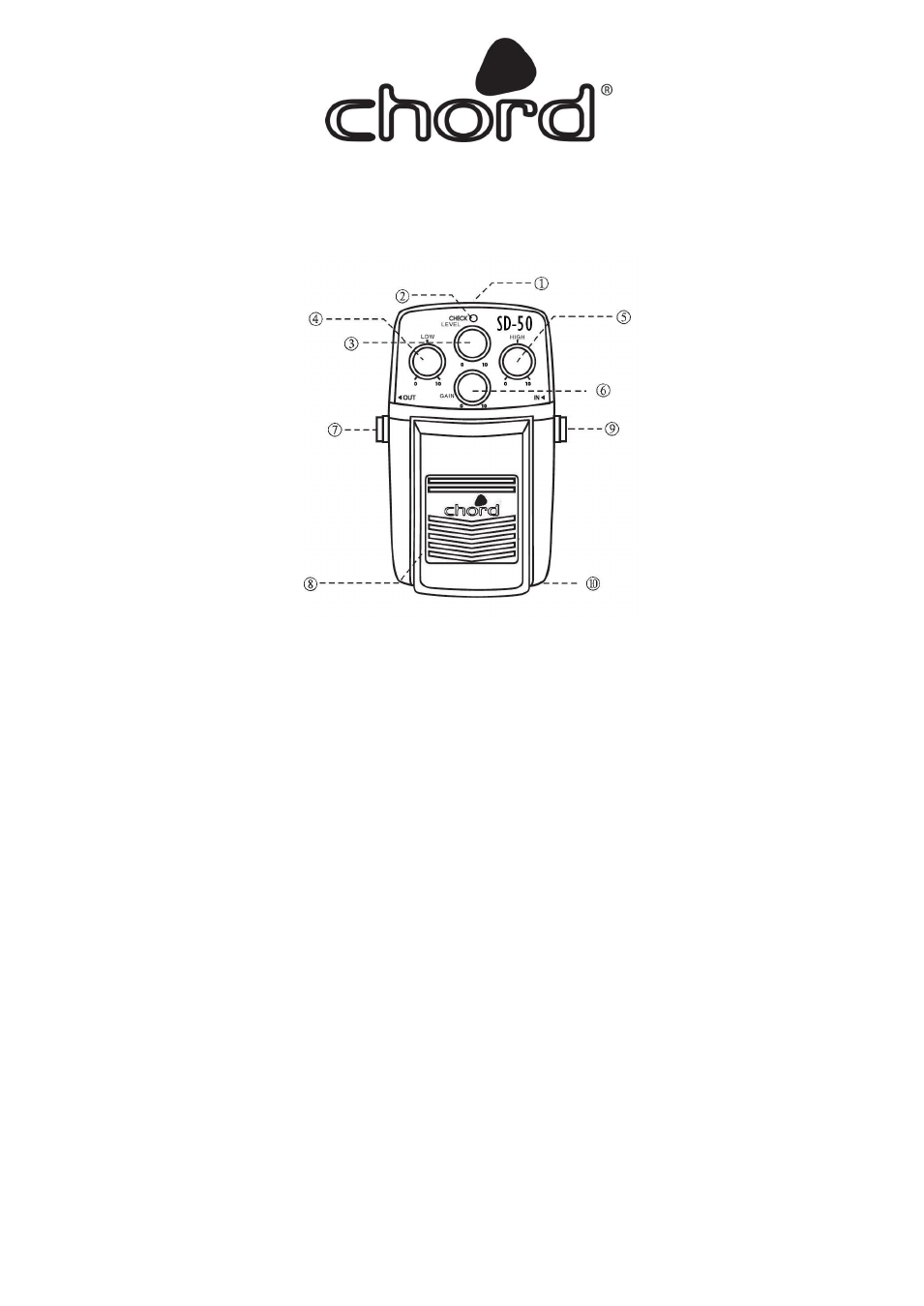

Functions
1. D.C. In
– DC jack for optional mains adapter
2. Indicator LED
– Shows when effect is on (when it appears dim, replace battery)
3. LEVEL
– Adjusts the overall output level
4. LOW
– Varies the low frequency content of the distorted sound
5. HIGH – Varies the high frequency content of the distorted sound
6. GAIN – Adjusts the amount of distortion and sustain given to the signal
7. Output – 6.3mm mono jack connector
8. Pedal Switch
– Turns Effect On/Off
9. Input
– 6.3mm mono jack connector
10. Battery housing
– Compartment underneath for 9V battery
Notes on use

Connecting to the Input jack enables the battery, please disconnect when not in use to
preserve the battery

Before connecting to an instrument, ensure amplifier volume is turned down
Specifications

Input Impedance: 1M
Ω
 Output Impedance: 1kΩ

Residual Noise: 90dBu (IHF A, Typ)

Power Supply: 9Vdc (battery or optional mains adapter) 17mA
