5 Operation
Principle of Operation
The GPR-1600MS ppm Oxygen Analyzers incorporates a proprietary Pico-Ion oxygen sensor. It is configured for panel mounting
and requires a 7.5x10.8” (T configuration) cutout with 4 holes for the analyzer’s front panel. Optional configurations include a
panel mount (TO configuration) 7.75x7.75” with cutout; 19” bezel for rack mounting either the T or TO; 12x12x8” wall mount
enclosure; 18.2x16x10” panel mount configuration using the wall mount enclosure. Contact the factory for additional
information on options. All configurations are tested and calibrated by the manufacturer prior to shipment. The GPR-1600MS
analyzers and sensors are CE certified and manufactured under a Quality Assurance System certified by an independent agency
to ISO 9001:2000 standards. However, the main feature remains the:

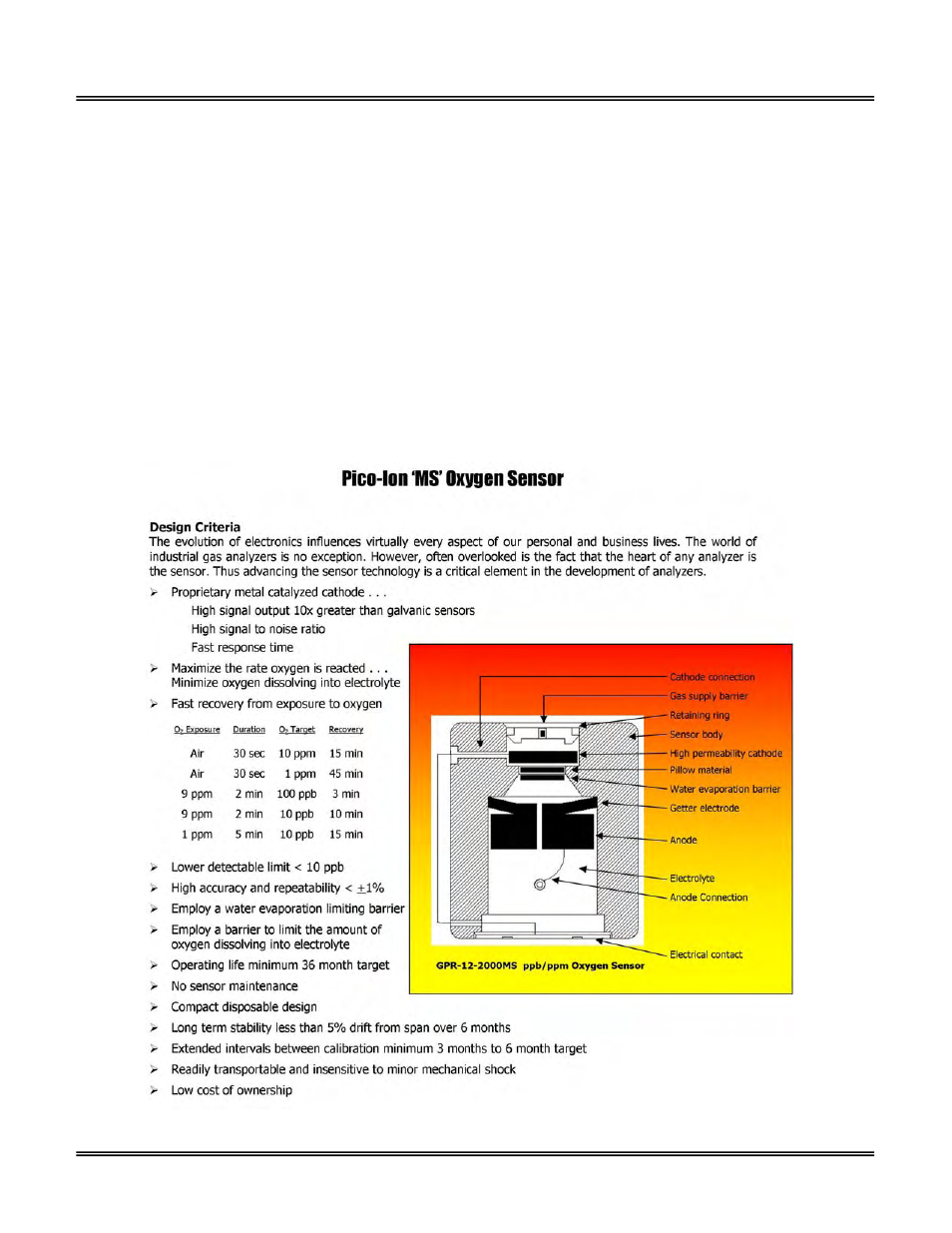

Breakthrough Sensor Technology:
A breakthrough sensor technology measures the partial pressure of oxygen from less than 10 ppb to 1000 ppm level in inert
gases, gaseous hydrocarbons, helium, hydrogen and mixed gas streams. The “Pico-Ion” sensor design and chemistry have been
combined to produce a significant advancement in oxygen sensor technology.
