5 Operation
GPR-3100 Rev 2/05 10
Procedure:
Caution: Do not change the factory setting until instructed to do in this manual.
1. Regulate the pressure and flow of the incoming sample and zero/span calibration gas(es) as
described in Controlling Pressure & Flow above.
2. Connect the ¼” vent line to the compression fitting labeled VENT.
3. Connect the 1/8” sample line to the fitting labeled SAMPLE.
4. Connect the 1/8” ZERO and SPAN gas lines as labeled, if equipped with optional sample system(s).
5. Once power is established to the analyzer, purge the air trapped inside the sample system.
6. Allow gas to flow through the analyzer for 3-5 minutes and set the flow rate to 2 SCFH
The analyzer is ready for calibration.

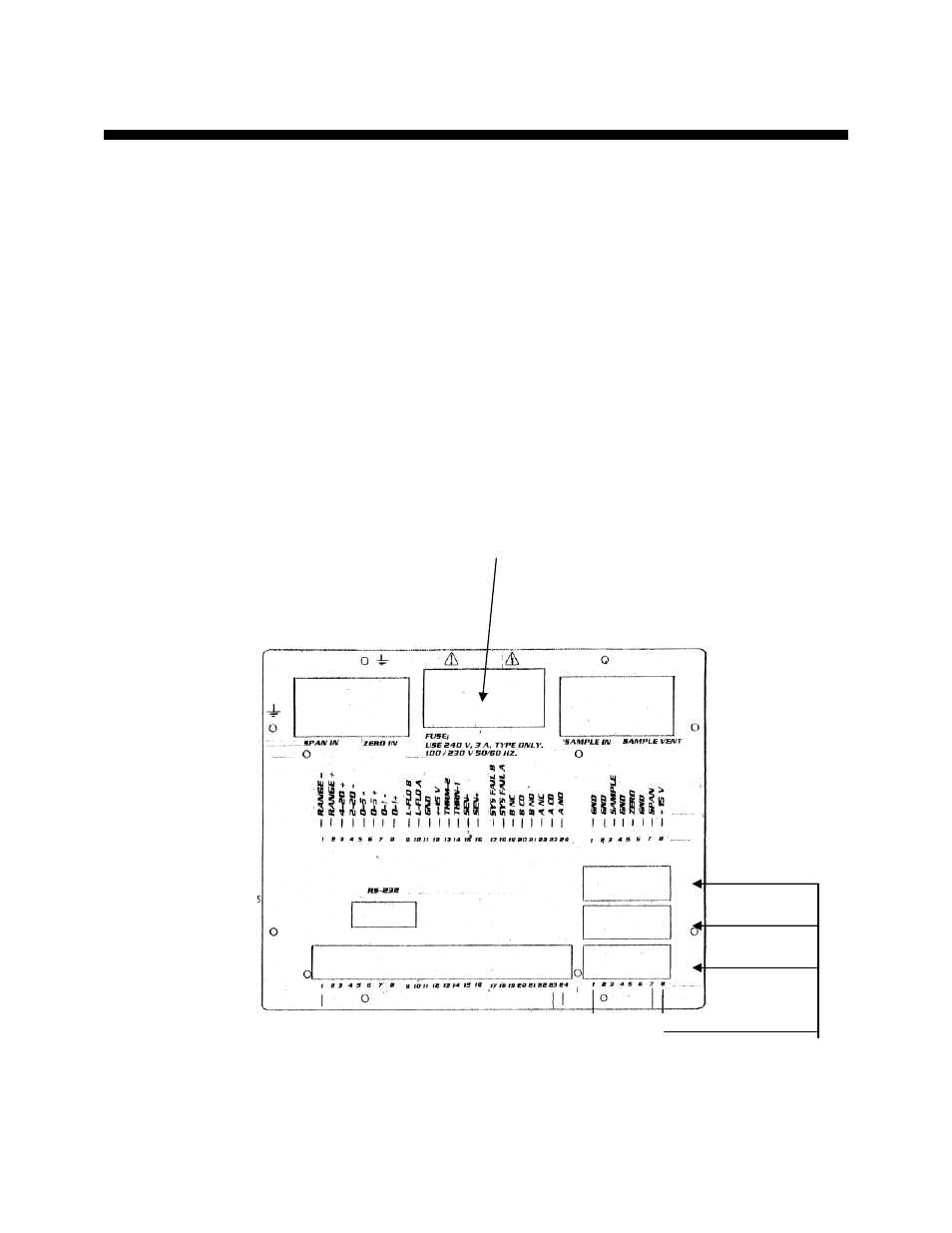

Power Connections:
Power for the on-line analyzers is supplied by an integral universal (100-240V AC) power supply. The
appropriate AC line voltage is supplied with a standard power cord through a universal power entry
module. A standard computer type power cord (P/N A-1008 is required for the universal power entry
module.
Note: While the power entry module is universal, the heater is not. The heater must be configured to
the local power supply (100-110 or 220-240V AC) at time of order.
Power Connections for External Calibration Valves
