2-32 Chapter 2: Hardware information
12. Infrared module connector (5-1 pin IR_CON)
This connector supports an optional wireless transmitting and receiving
infrared module. This module mounts to a small opening on system
chassis that support this feature. You must also configure the UART2
Use As parameter in BIOS to set UART2 for use with IR. See section
“4.4.2 I/O Device Configuration” for details.
Use the five pins as shown in Back View and connect a ribbon cable
from the module to the motherboard SIR connector according to the
pin definitions.
13. GAME/MIDI connector (16-1 pin GAME)
This connector supports a GAME/MIDI device. If your package came
with the optional USB 2.0/GAME module, connect the GAME/MIDI
cable to this connector. The GAME/MIDI port on the module connects
a joystick or a game pad for playing games, and MIDI devices for
playing or editing audio files.

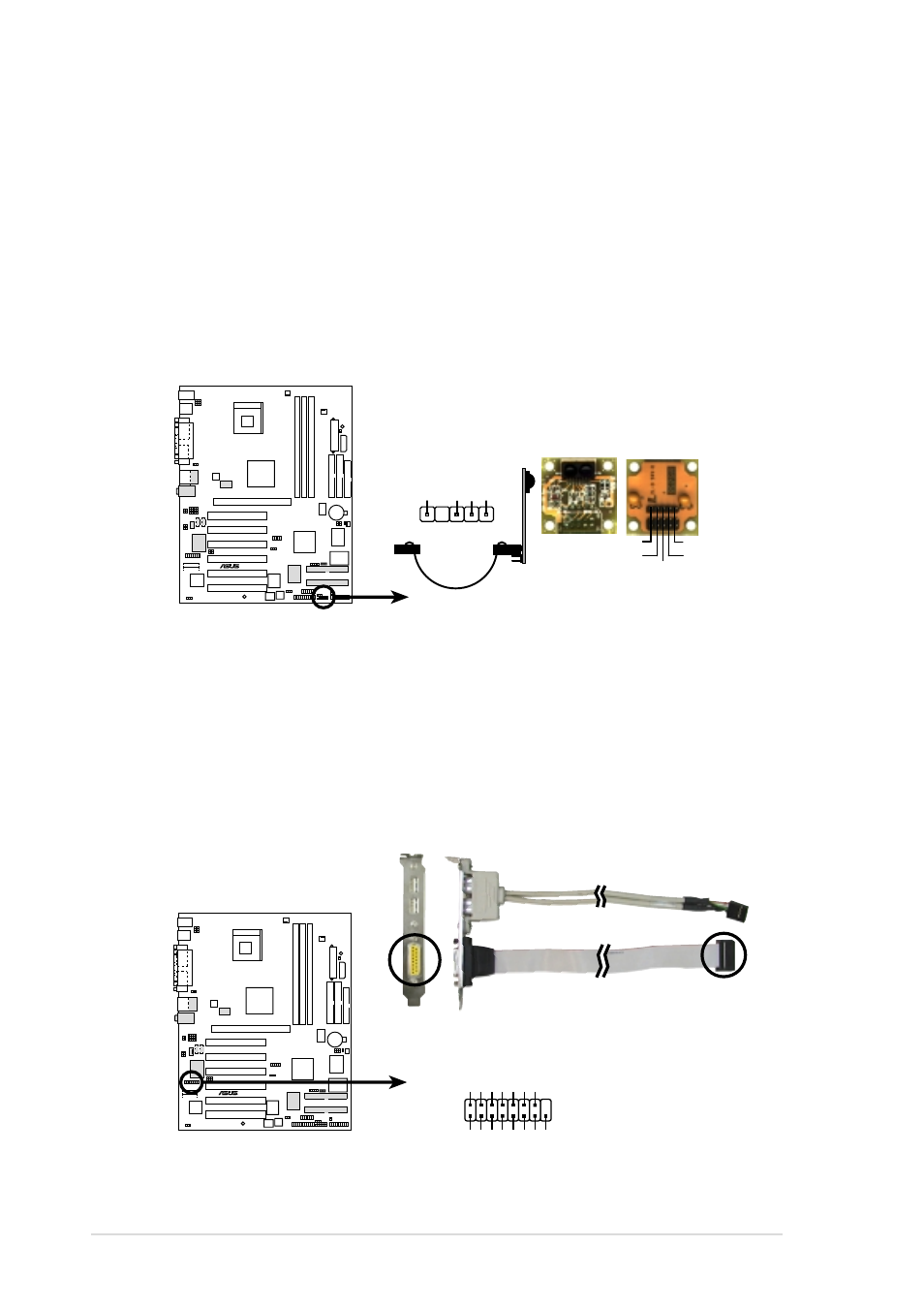

P4B533-E
®
P4B533-E Game Connector
GAME
1
GND J2B1 J2CX MIDI_OUT J2CY J2B2 MIDI_IN
GND J1B1 J1CX GND GND J1CY J1B2 GND
9
8
16
P4B533-E
®
P4B533-E Infrared Module Connector
Front View Back View
+5V IRTX
IRRX
(NC) GND
+5V IRRX IR
TX
GND
IR_CON
1
