Chapter 1: Product introduction
5.

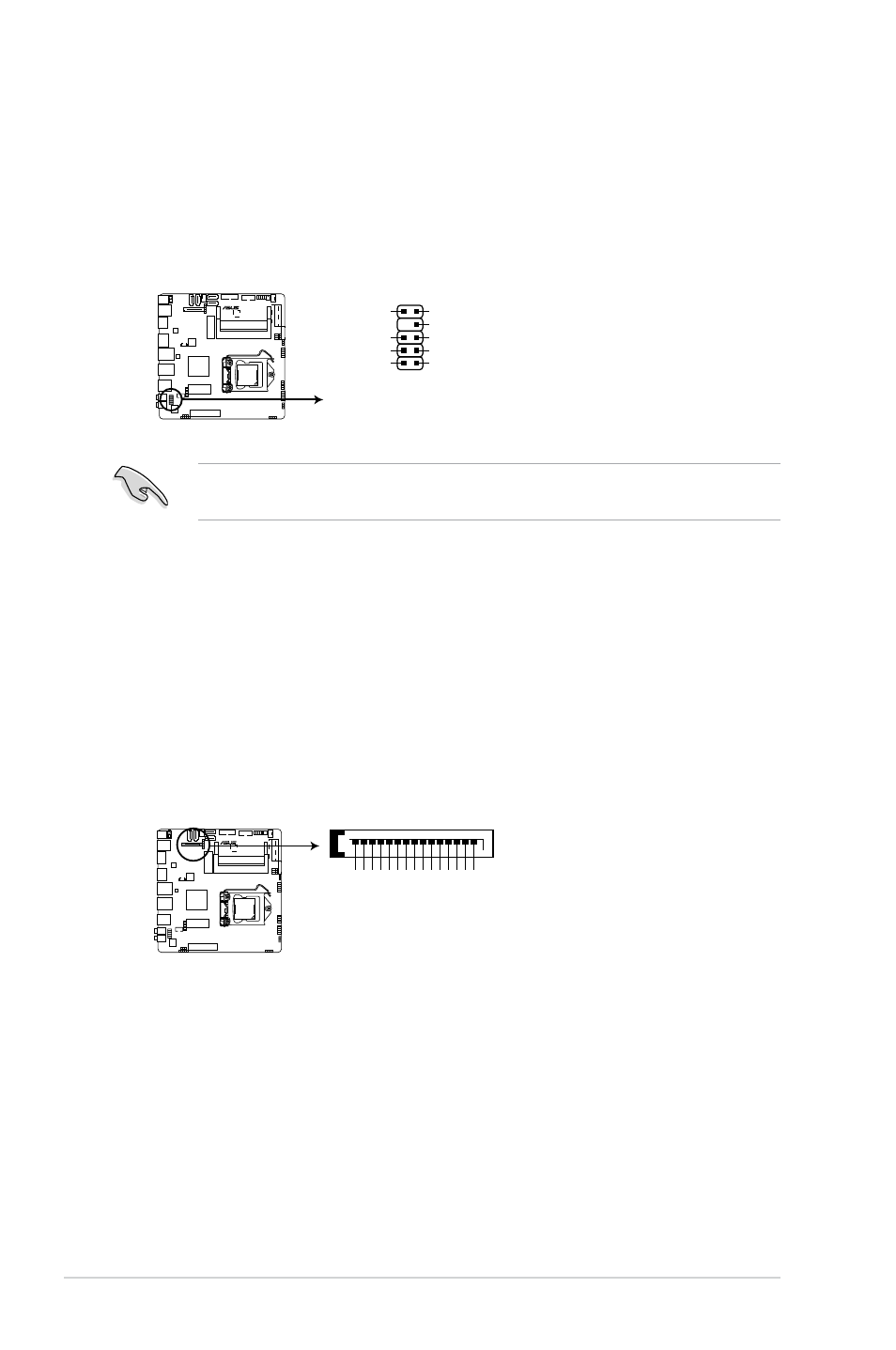

Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel HD audio I/O module. Connect one
end of the front panel audio I/O module cable to this connector.
We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
Q87T
Q87T Front panel audio connector
AAFP
SENSE2_RETUR
SENSE1_RETUR
NC
AGND
PORT2 L
SENSE_SEND
PORT2 R
PORT1 R
PORT1 L
HD-audio-compliant
pin definition
PIN 1
6. SATA power connector (15-pin SATA_PWRCON)
This connector is for the SATA power cable. The power cable plug is
designed to fit this connector in only one orientation. Find the proper
orientation and push down firmly until the connector completely fit. To provide
power to your SATA device, connect the SATA power cable to this connector.
Q87T
Q87T SATA HDD power source
PIN 1
+12V +12V +12V GND GND GND +5V +5V +5V GND GND GND +3V +3V +3V
SATA_PWRCON
