ASUS Q87T 1-13
1.7 Connectors

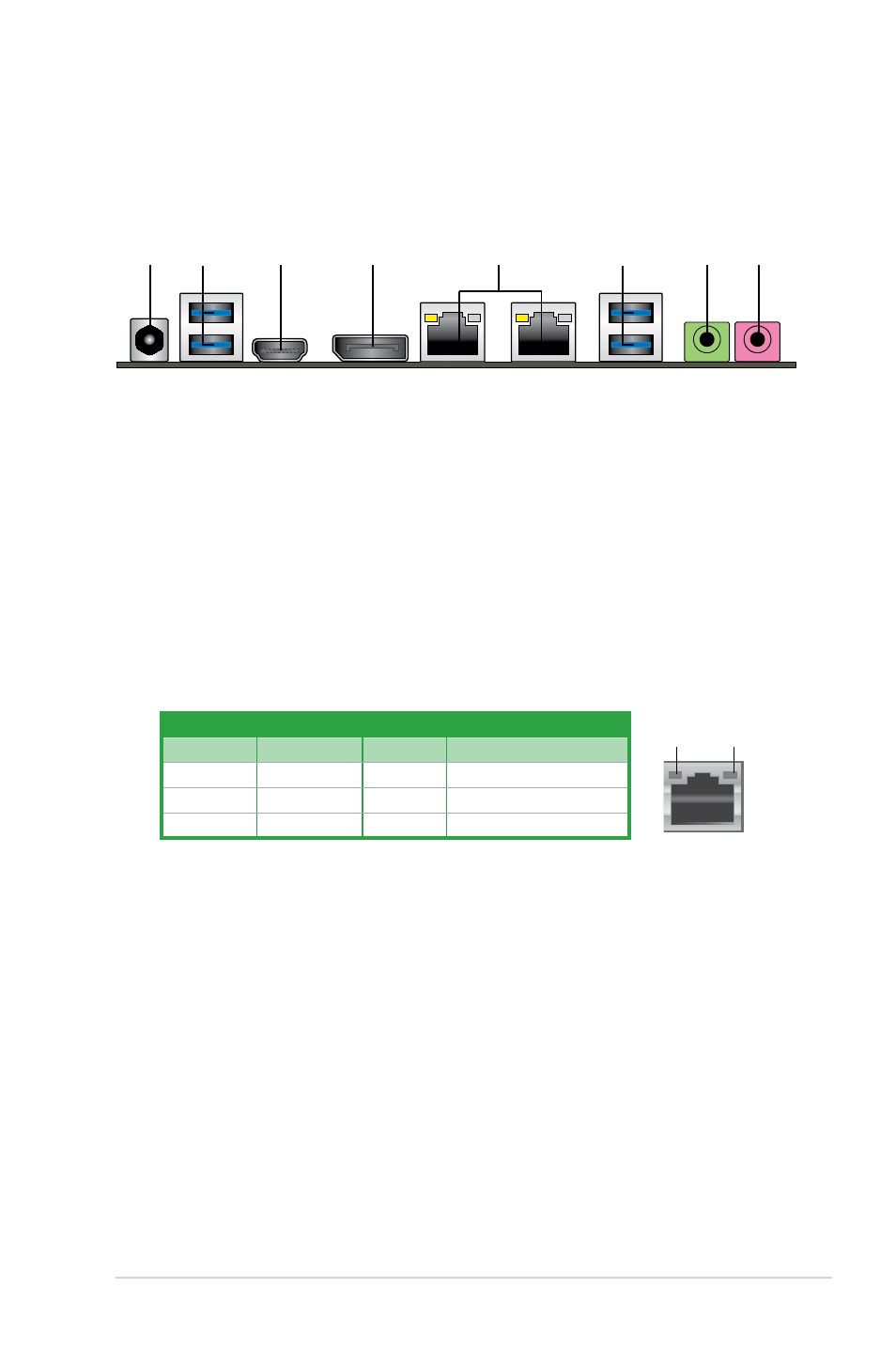

1.7.1 Rear panel connectors
5 6 7 8 3 4 1 2
1. DC power connector. Insert the power adapter into this port.
2. USB 3.0 ports 5 and 6. These two 9-pin Universal Serial Bus (USB) ports are for
connecting USB 3.0 devices.
3. HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector,
and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected
content.
4. DisplayPort. Connect a DisplayPort cable into this port for high-definition video and
audio.
5. LAN (RJ-45) port. These ports allow Gigabit connection to a Local Area Network
(LAN) through a network hub.
LAN port LED indications
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
GREEN Linked ORANGE 100Mbps connection
GREEN Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
6. USB 3.0 ports 3 and 4. These two 9-pin Universal Serial Bus (USB) ports are for
connecting USB 3.0 devices.
7. Line Out port (lime). This port connects to a headphone or a speaker.
8. Microphone port (pink). This port connects to a microphone.
