Lvds panel or edp selector (3-pin fpd_sel), Chapter 1: product introduction, Q87t display panel backlight power selection – Asus Q87T User Manual

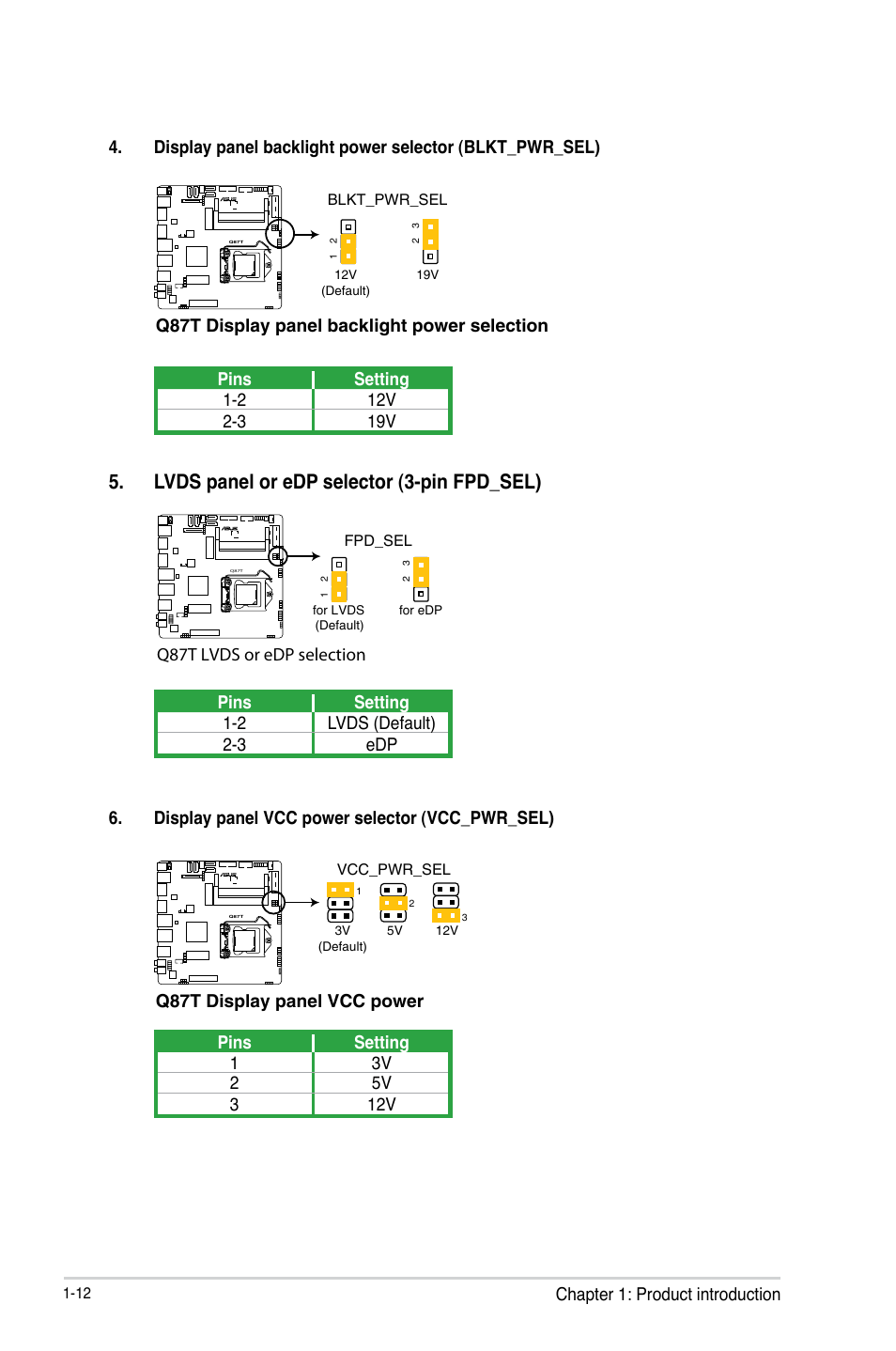

Page 20: Q87t lvds or edp selection, Q87t display panel vcc power, Pins setting 1-2 lvds (default) 2-3 edp
