Chapter 4: Motherboard info

4.1

Introduction

The Vintage2-PH1 barebone system comes with an ASUS motherboard.

This chapter provides technical information about the motherboard for

future upgrades or system reconﬁguration.

4.2

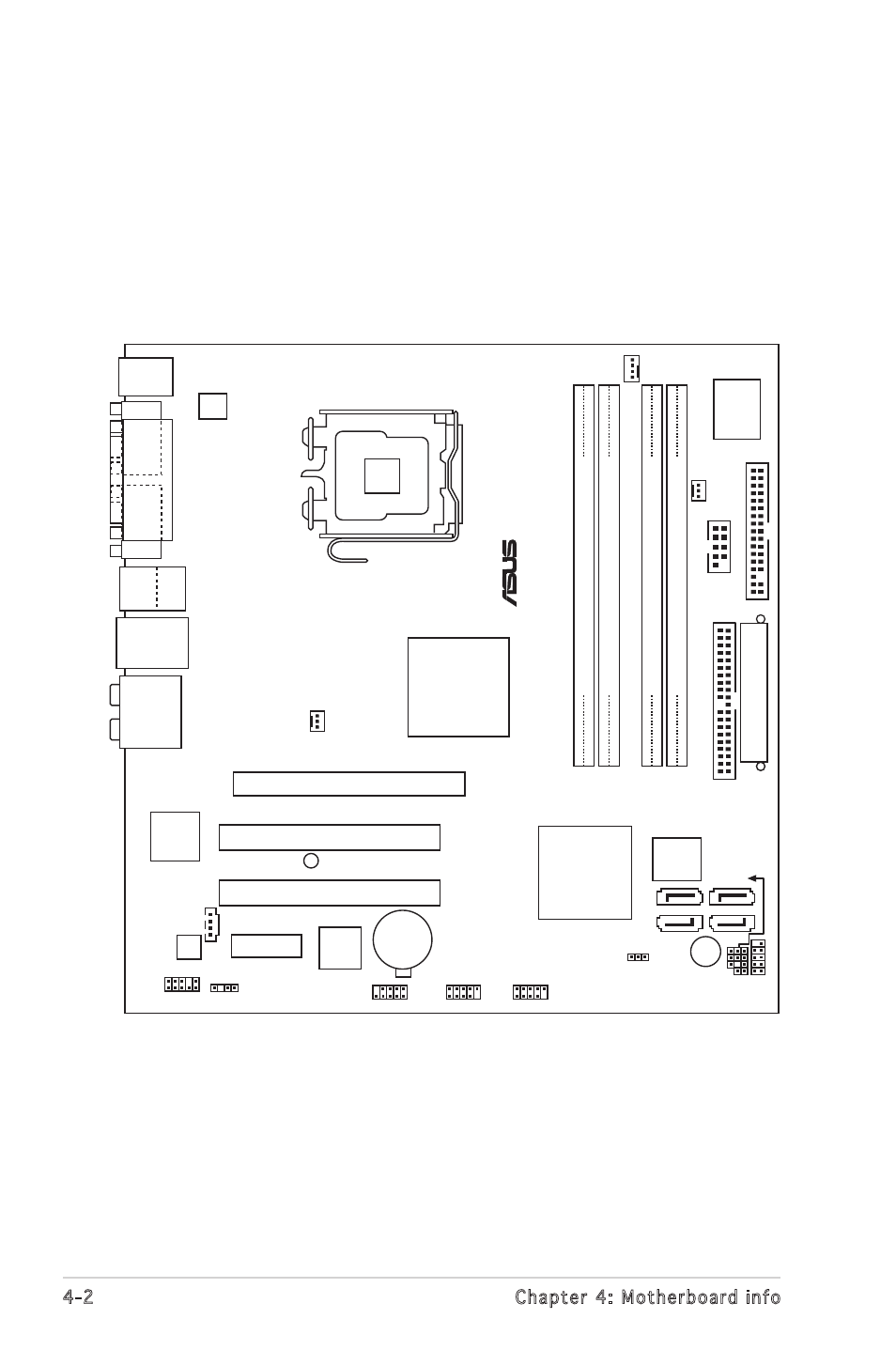

Motherboard layout

CR2032 3V

Lithium Cell

CMOS Power

I/O

Intel FWH

4Mb

ATX12V

FLOPPY

AAFP

DDR DIMM_A1 (64 bit,240-pin

module

)

SB_PWR

F_P

ANEL

CHASSI

USB78

USB56

CLRTC

PCI1

Intel

GMCH

945G

Intel

ICH7

DDR DIMM_A2 (64 bit,240-pin

module

)

DDR DIMM_B1 (64 bit,240-pin

module

)

DDR DIMM_B2 (64 bit,240-pin

module

)

CHA_FAN

CPU_FAN

PRI_IDE

TXPW

PCI2

SPDIF_OUT

Intel

82573L

PS/2KBMS

T: Mouse

B: Keyboard

PCIEX1_1

PCIEX16

COM1

PARALLEL

POR

VGA

PLED

SATA1

SATA2

SATA4

SATA3

BUZZ

PWR_F

SPEAKER

COM2

ALC882

TSB43AB22A

IE1394_2

LGA775

LAN_USB34

AUDIO

USB1

USB2

Bottom:

1394

Top:
