2.9 Installing a floppy disk drive
The Vintage2-PH1 system comes with one 3.25-inch drive bay for a floppy
disk drive.
To install a floppy disk drive:
1. Remove the front panel cover.
For instructions on how to remove the front panel cover, refer to page
2-3 of section “2.3 Removing the side plates and front cover”

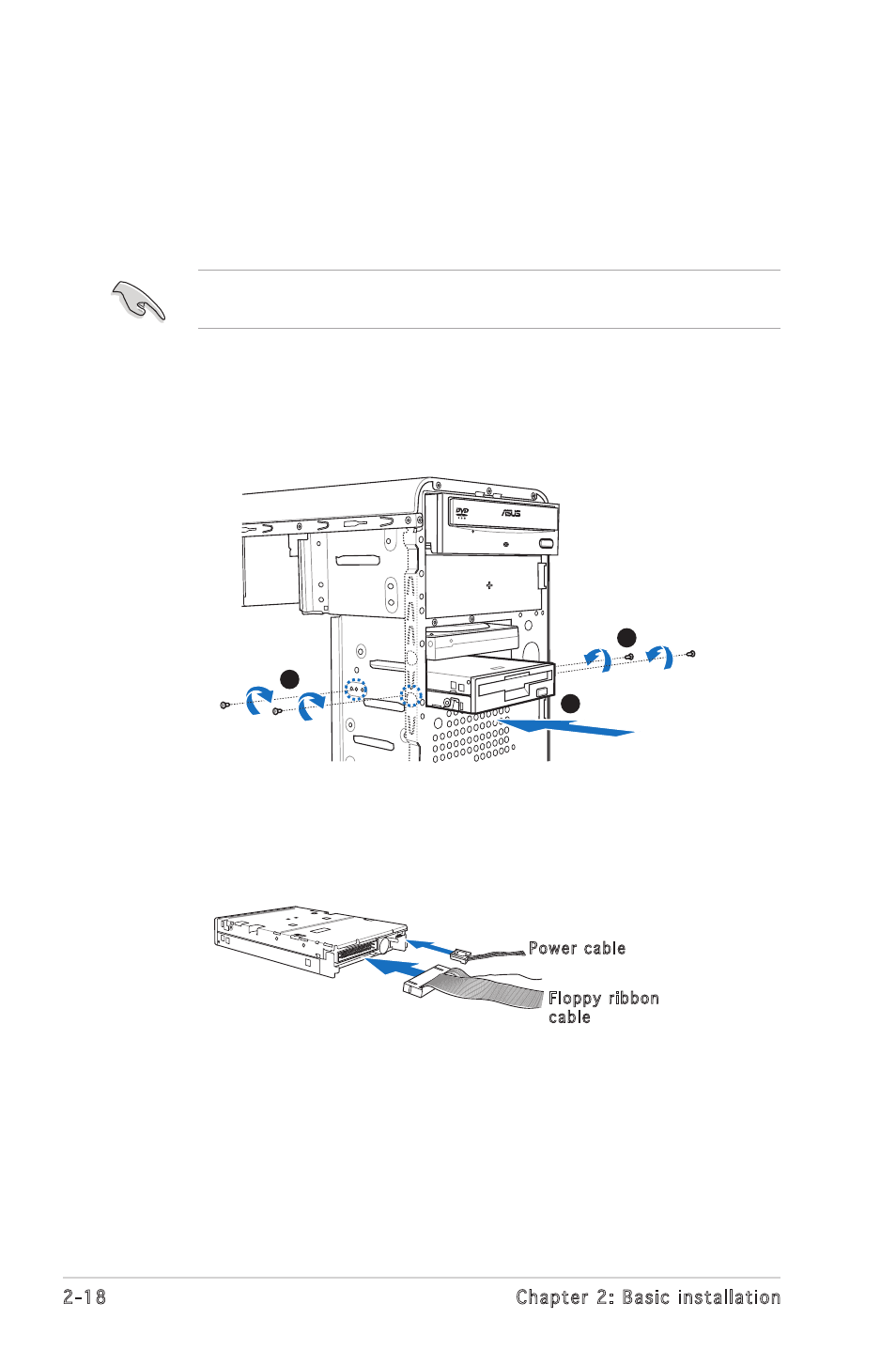

2. Carefully insert the floppy disk drive into the floppy drive bay until the
screw holes align with the holes on the bay.
3. Secure the floppy disk drive with two screws.
4. Connect the floppy disk drive signal cable to the signal connector at
the back of the drive.
3
3
2
5. Connect the other end of the signal cable to the floppy disk drive
connector on the motherboard.
6. Connect a power cable from the power supply unit to the power
connector at the back of the floppy disk drive.
Floppy ribbon
cable
Power cable
