ASUS M5A88-V EVO 2-27
Chapter 2

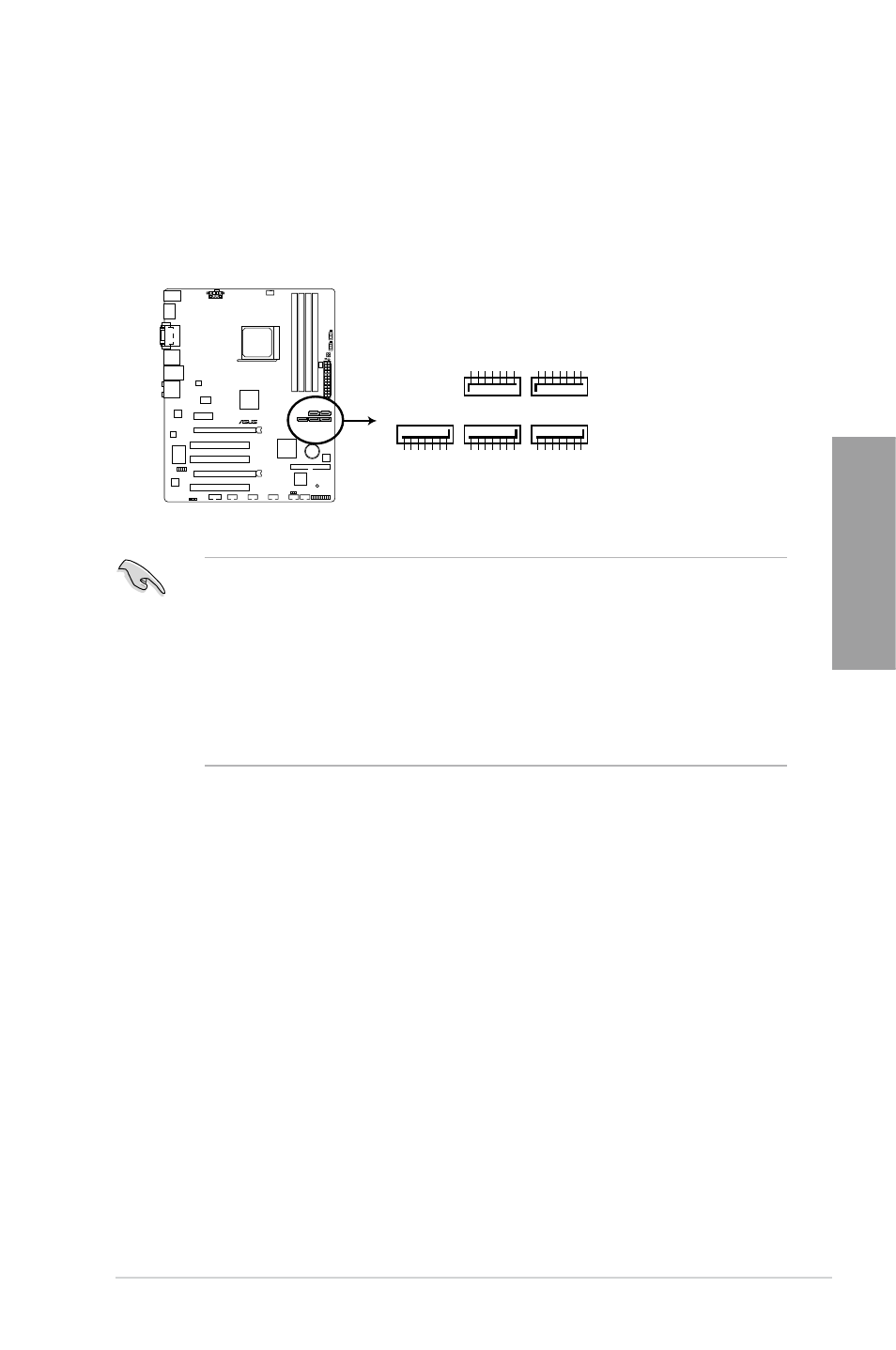

2. AMD ® SB850 Serial ATA Serial ATA 6.0 Gb/s connectors (7-pin SATA 1/2/3/5/6)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard disk
drives and optical disc drives.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 5,
or RAID 10 configuration through the onboard AMD ® SB850 controller.
• These connectors are set to IDE mode by default. In IDE mode, you can connect
Serial ATA boot/data hard disk drives to these connectors. If you intend to create a
Serial ATA RAID set using these connectors, set the type of the SATA connectors to
[RAID] in the BIOS. See section 3.4.2 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors to [AHCI] in the
BIOS. See section 3.4.2 SATA Configuration for details.
GN
D
RSATA_RXN3 RSATA_RXP3 RSATA_TXN3 RSATA_TXP3 GN
D
GN
D
SATA6G_3
SATA6G_1
GN
D
RSATA_TXP1 RSATA_TXN1
GN
D
RSATA_RXP1 RSATA_RXN
1
GN
D
GN
D
RSATA_RXN5 RSATA_RXP5 RSATA_TXN5 RSATA_TXP5 GN
D
GN
D
SATA6G_5
SATA6G_2
GN
D
RSATA_TXP2 RSATA_TXN2
GN
D
RSATA_RXP2 RSATA_RXN
2
GN
D
SATA6G_6
GN
D
RSATA_TXP6 RSATA_TXN6
GN
D
RSATA_RXP6 RSATA_RXN
6
GN
D
M5A88-V EVO
M5A88-V EVO Intel ® SATA 6.0Gb/s connectors
