INSTALLATION

Drilling the Support surface and Fit-

ting the Hood

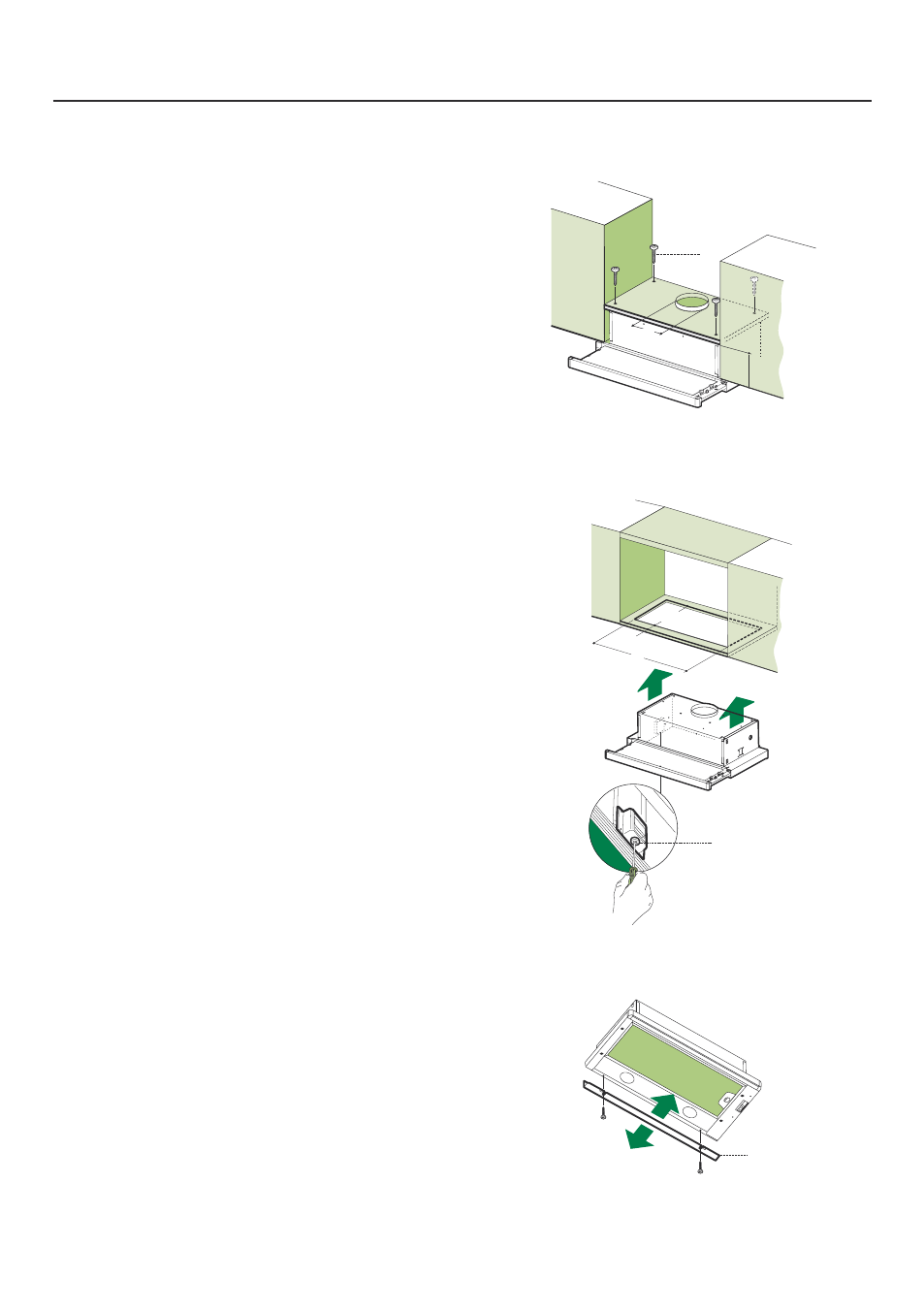

SCREW FITTING

• The hood support surface must be 135 mm

above the bottom surface of the wall units.

• Drill the support with a ø 4,5 mm drill bit, using

the drilling template provided.

• Cut a hole ø 125 mm in size on the support sur-

face, using the drilling template provided.

• Fix using the 4 screws

12a (4,2 x 44,4) provid-

ed.

SNAP-ON FITTING

• The hood can be installed either directly on the

bottom surface of the wall units using snap-on

side supports.

• Cut a fitted opening in the bottom surface of the

wall unit, as shown.

• Insert the hood until the side supports snap into

place.

• Lock in position by tightening the screws

Vf from

underneath the hood.

CLOSING ELEMENT

• The space between the edge of the hood and the

rear wall can be closed by applying the element

20 provided, using the screws supplied for this

purpose.

��

�

��

��

��
