4.4 Connectors
This section describes and illustrates the connectors on the motherboard.
See page 14 for the description of rear panel connectors.
1. IDE connectors (40-1 pin PRI_IDE1, SEC_IDE1)
This connector is for an Ultra DMA 100/66 signal cable. The Ultra
DMA 100/66 signal cable has three connectors: a blue connector for
the primary IDE connector on the motherboard, a black connector for
an Ultra DMA 100/66 IDE slave device (optical drive/hard disk drive),
and a gray connector for an Ultra DMA 100/66 IDE master device
(hard disk drive). If you install two hard disk drives, you must
configure the second drive as a slave device by setting its jumper
accordingly. Refer to the hard disk documentation for the jumper
settings.
• Pin 20 on the IDE connector is removed to match the covered hole on
the Ultra ATA cable connector. This prevents incorrect orientation
when you connect the cables.
• For Ultra ATA/133 IDE devices, use an 80-conductor IDE cable.

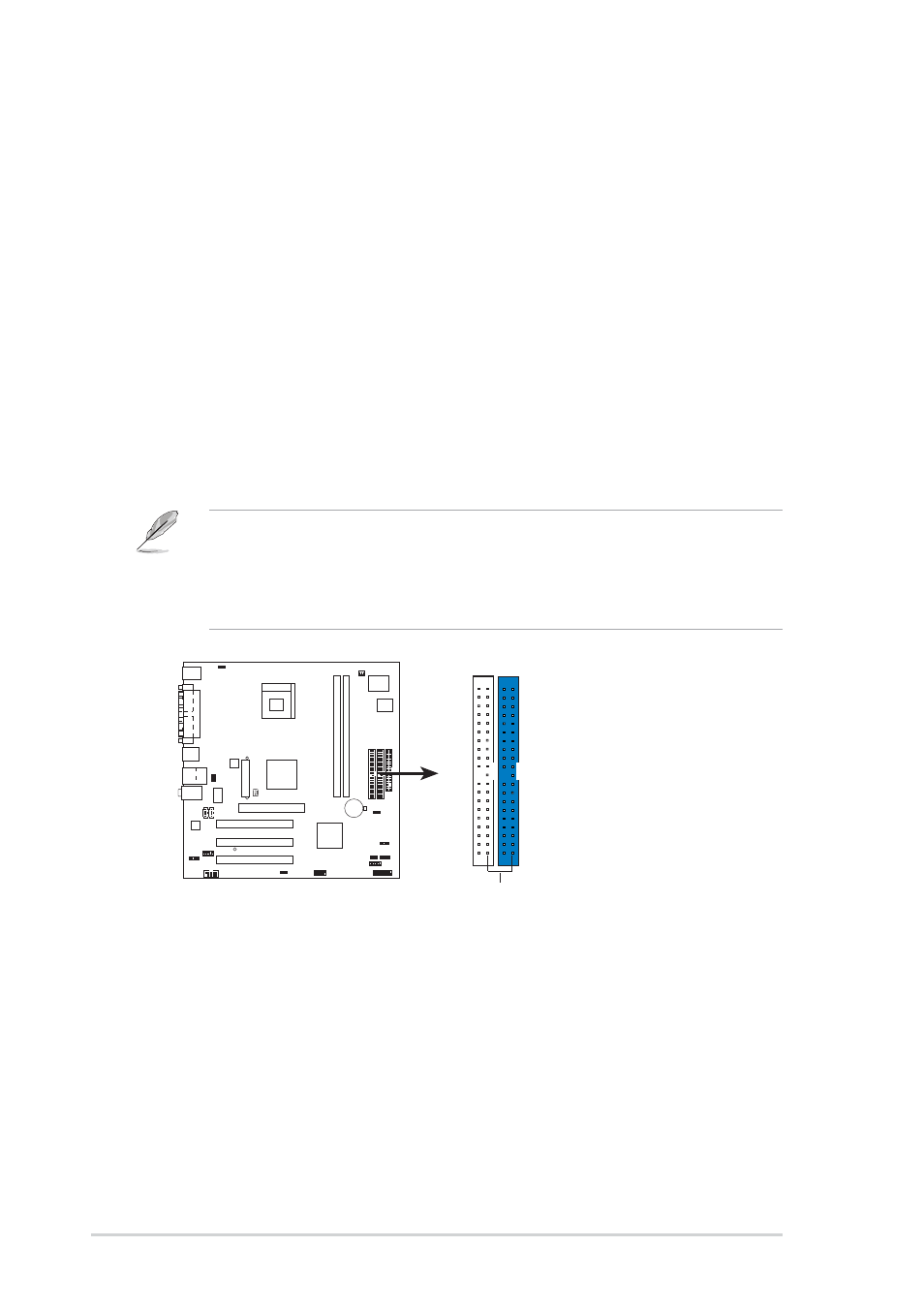

P4S800-MX IDE connectors
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
SEC_IDE1 PRI_IDE1
PIN 1
AD1888
CODEC
