Chapter 2: Basic Installation
2.11
Replacing the side plate and front cover
After you have installed all the internal components and you have
connected all the necessary cables, you are now ready to put the system
back together.

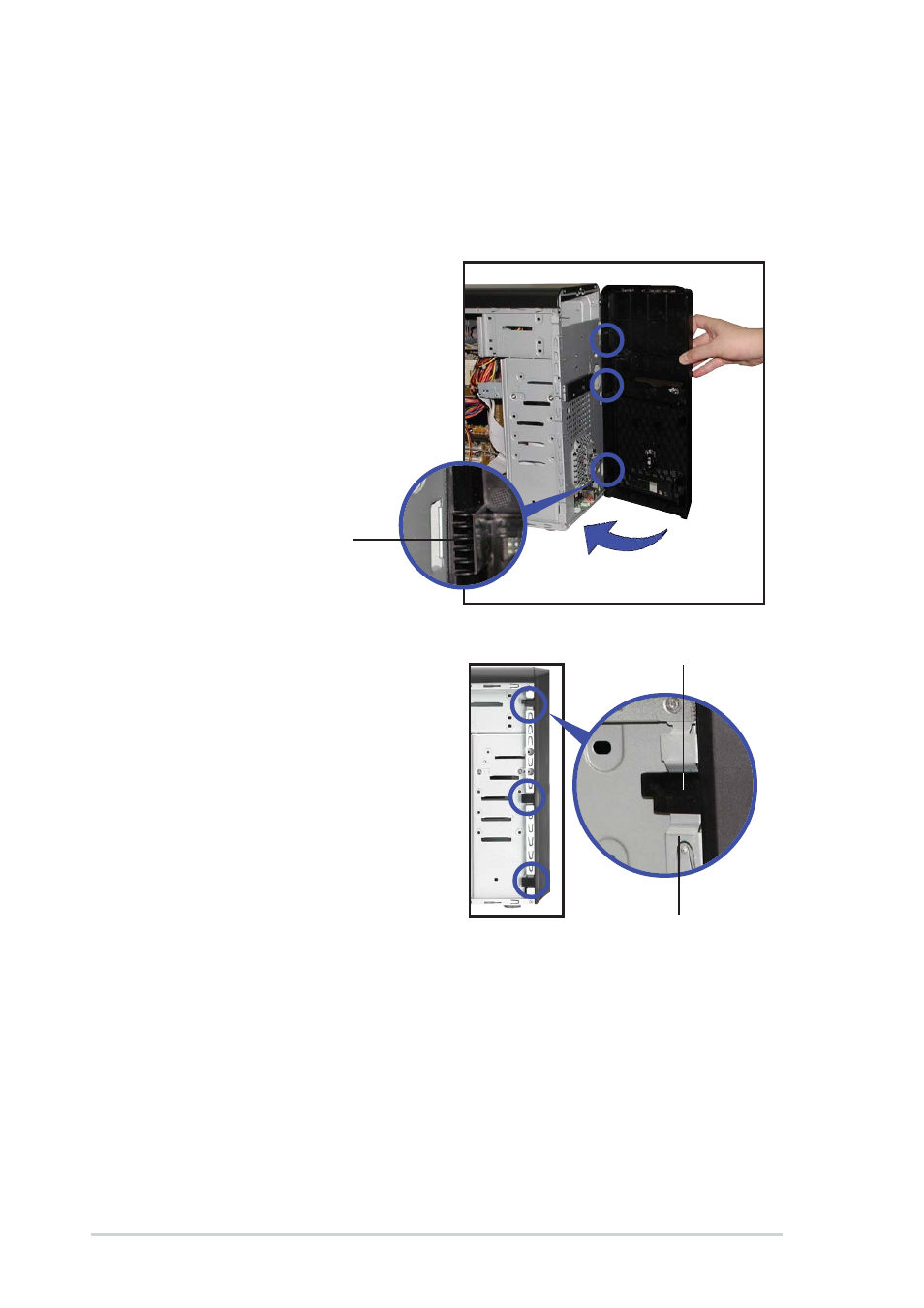

1.
Hook the hinge-like tabs to the
holes on the right side of the
front panel to attach the front
panel assembly to the chassis.
2.
Swing the front panel inward.
Hinge-like tab
3.
Snap the side lock tabs to the
steel railing.
Side lock tab
Steel railing
