36 ASUS TUV4X User’s Manual
3. HARDWARE SETUP
Connectors
3. H/W SETUP
4) Wake-On-LAN Connector (3-pin WOL_CON)
This connector connects to a LAN card with a Wake-On-LAN output. The
connector powers up the system when a wake up packet or signal is received
through the LAN card.
IMPORTANT: This feature requires that the Wake-On-LAN or PCI Device
parameter is enabled (see 4.5.1 Power Up Control) and that the system has an
ATX power supply with at least 720mA +5V standby power.
5) Wake-On-Ring Connector (2-pin WOR)
This connector connects to internal modem cards with a Wake-On-Ring output.
The connector powers up the system when a ringup packet or signal is received
through the internal modem card. NOTE: For external modems, Wake-On-Ring
is detected through the COM port.
IMPORTANT: This feature requires that the Power Up On External Modem
Act parameter is enabled (see 4.5.1 Power Up Control) and that the system has
an ATX power supply with at least 720mA +5V standby power.
TUV4X
®

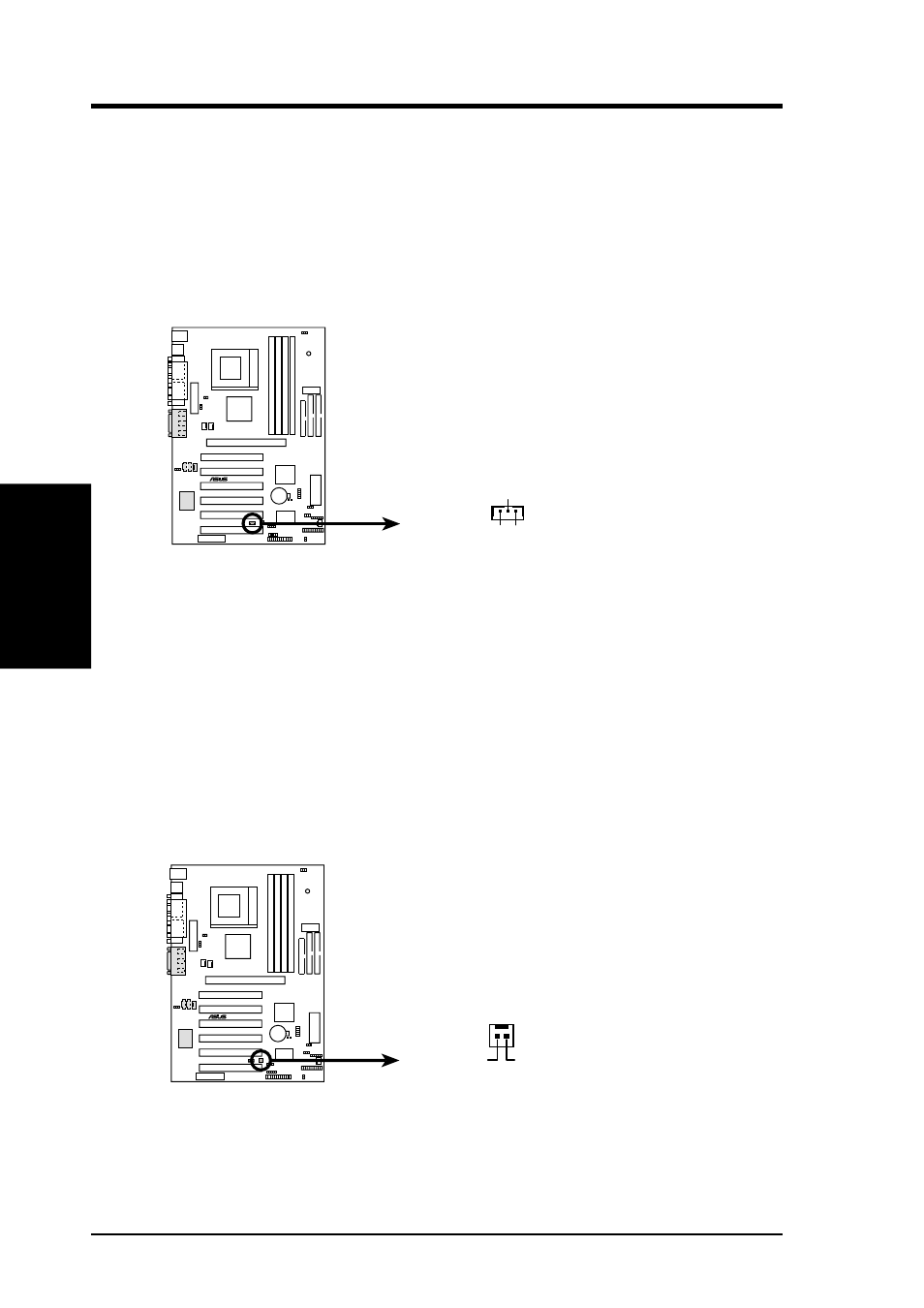

TUV4X Wake-On-LAN Connector
IMPORTANT: Requires an ATX power
supply with at least 720mA +5 volt
standby power.
+5 Volt Standby PME
Ground
WOL_CON
TUV4X
®
TUV4X Wake-On-Ring Connector
WOR
RI# Ground
2 1
