ASUS Striker
2-31
6. CPU, chassis, power, and optional fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN1, 3-pin PWR_FAN, 3-pin OPT_FAN1~5)
The fan connectors support cooling fans of 350 mA ~ 2000 mA (24 W max.)
or a total of 1 A ~ 7 A (84 W max.) at +12V. Connect the fan cables to the
fan connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air
flow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
• Only the CHA_FAN1 and OPT_FAN 1~3 connectors support the ASUS
Q-FAN 2 feature.
• If you install two VGA cards, we recommend that you plug the rear chassis
fan cable to the motherboard connector labeled OPT_FAN1 or OPT_FAN2
for better themal environment.
STRIKER
®

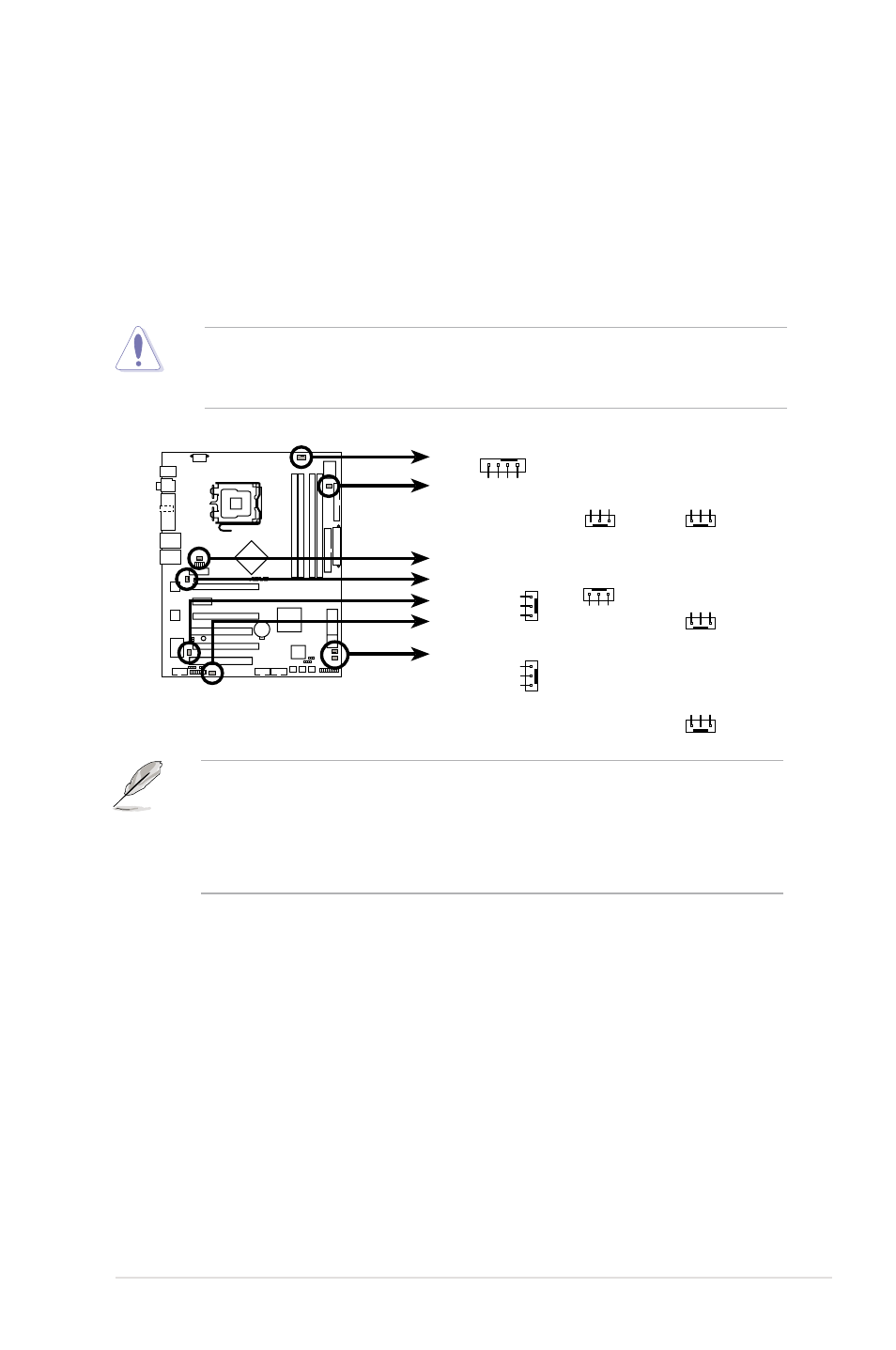

STRIKER Fan connectors
CPU_FAN
CHA_FAN1
CPU_FAN
PWR_FAN
GND
CPU F
AN PWR
CPU F
AN IN
CPU F
AN PWM
GN
D
Rotation
+12V
OPT_FAN4
OPT_FAN5
PWR_FAN
GN
D
Rotation
+12V
CHA_FAN1
OPT_FAN2
OPT_FAN1
OPT_FAN3
OPT_FAN3
GN
D
Rotatio
n
+12V
GND
Rotation
+12V
OPT_FAN2
GND
Rotation
+12V
OPT_FAN1
GN
D
Rotatio
n
+12V
OPT_FAN4
GN
D
Rotation
+12V
OPT_FAN5
