7 audio card installation – Asus Striker User Manual
Page 46
2-22
Chapter 2: Hardware information
2.7
Audio Card Installation

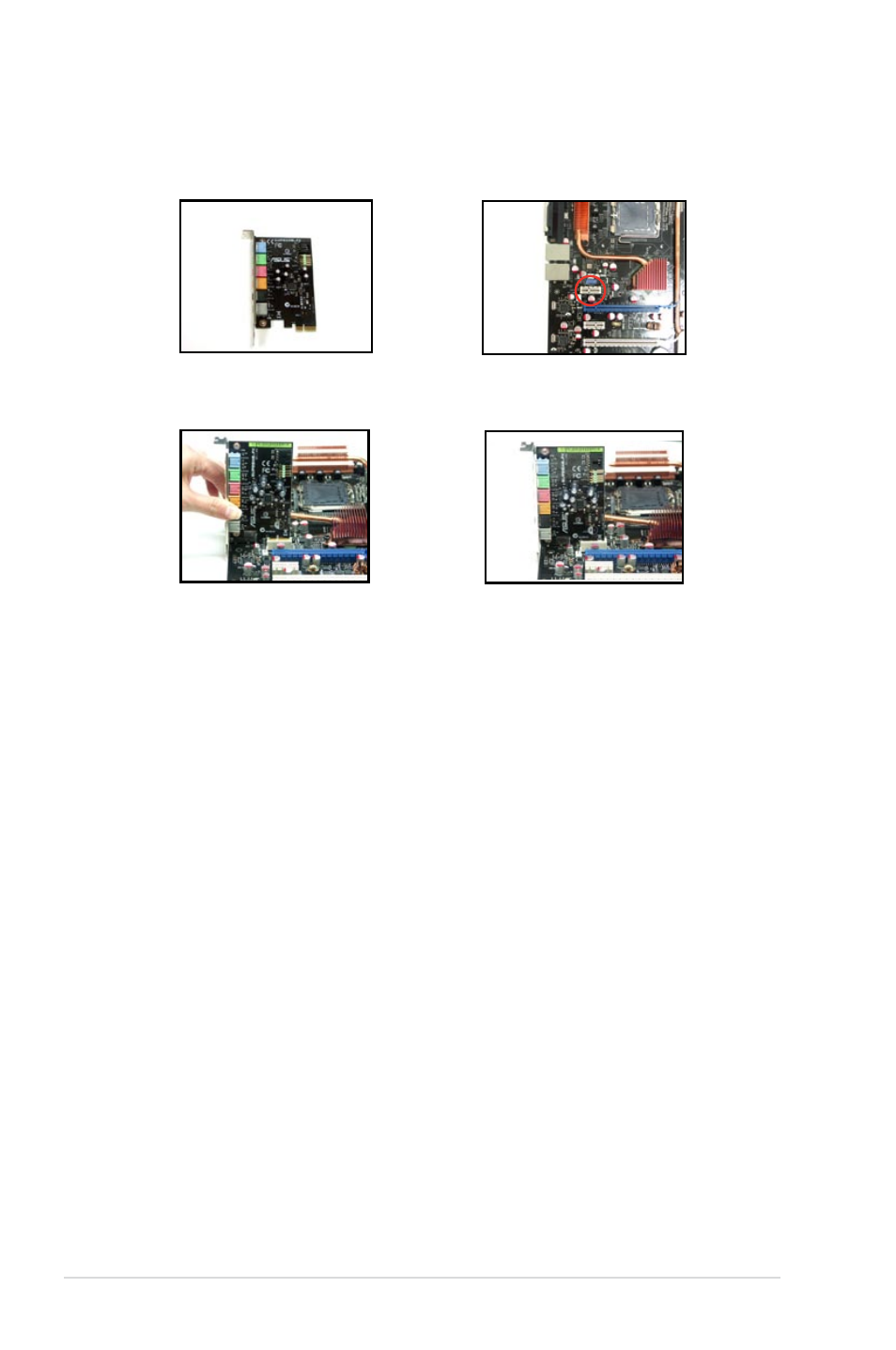

1. Take out the Audio card from
the package.
2. Locate the slot on the
motherboard.
3. Align the card connector
with the slot and press firmly
until the card sits on the slot
completely.
4. The above photo shows the
audio card installed on the
motherboard.
