ASUS Striker

2-29

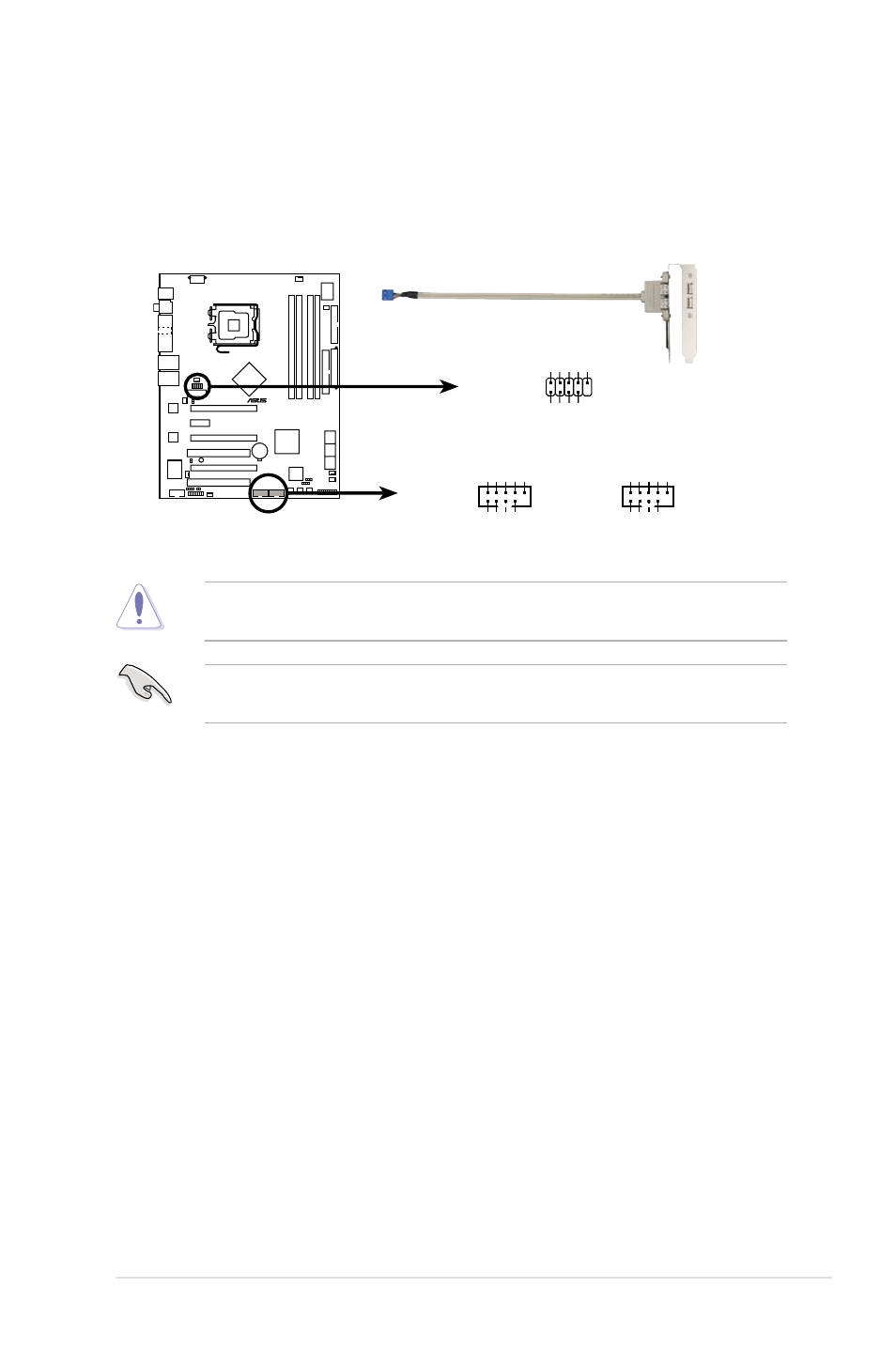

4. USB connectors (10-1 pin USB56, USB78, USB910)

These connectors are for USB 2.0 ports. Connect the USB module cable

to any of these connectors, then install the module to a slot opening at the

back of the system chassis. These USB connectors comply with USB 2.0

specification that supports up to 480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

You can connect the USB cable to ASUS Q-Connector (USB, blue) first, and

then install the Q-Connector (USB) to the USB connector onboard.

STRIKER

®

STRIKER

USB 2.0 connectors

USB56

NC

GND

USB_P6

+

USB_P6

-

USB+5

V

GND

USB_P5

+

USB_P5

-

USB+5

V

1

USB78

NC

GND

USB_P8

+

USB_P8

-

USB+5

V

GND

USB_P7

+

USB_P7

-

USB+5

V

1

USB910

1

NC

GN
D

USB_P6

+

USB_P6

-

USB+5V

GND

USB_P5

+

USB_P5

-

USB+5

V
