2-30

Chapter 2: Hardware information

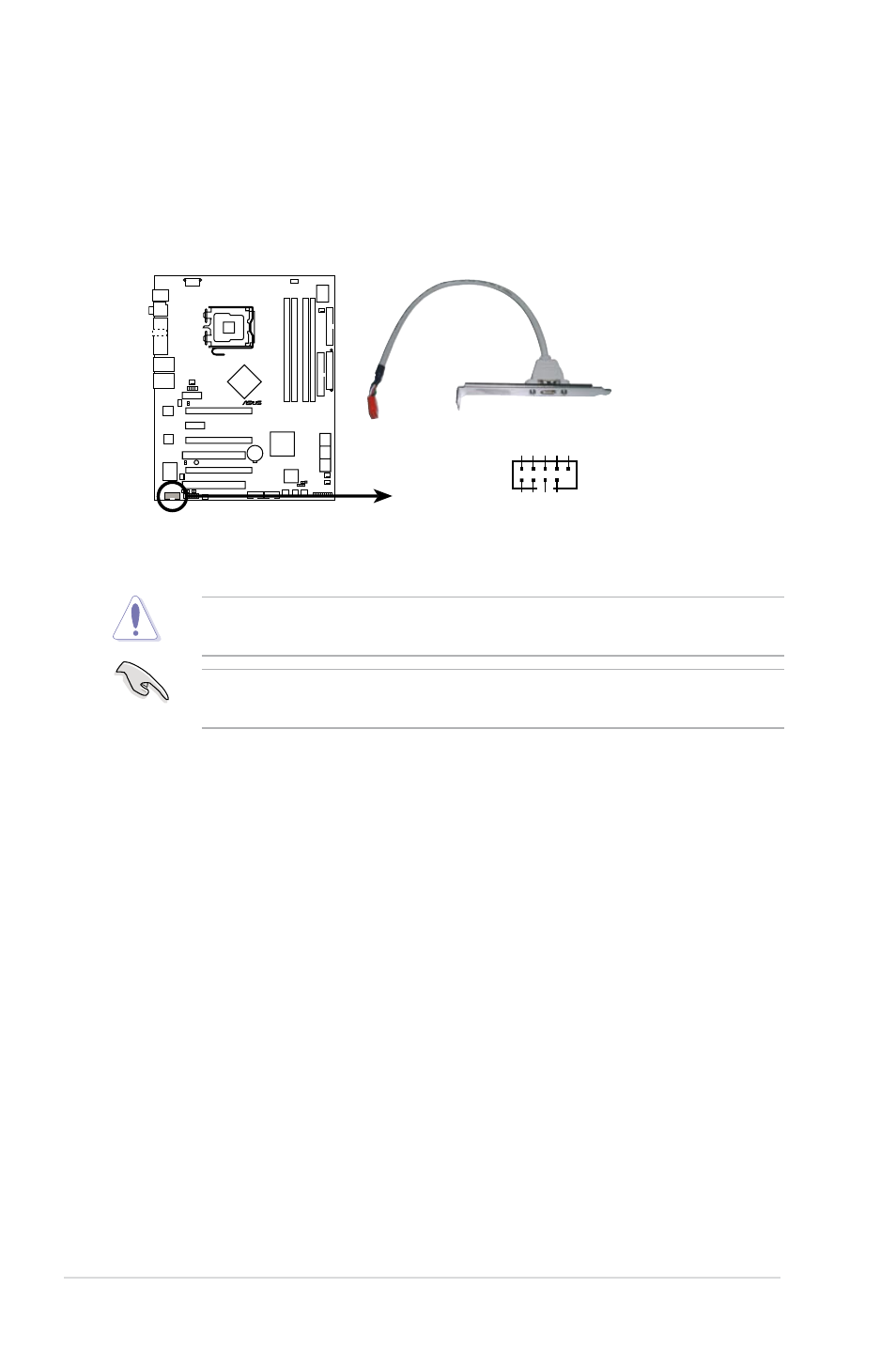

5. IEEE 1394a port connector (10-1 pin IE1394_2)

This connector is for a IEEE 1394a port. Connect the IEEE 1394a module

cable to this connector, then install the module to a slot opening at the back

of the system chassis.

Never connect a USB cable to the IEEE 1394a connector. Doing so will damage

the motherboard!

You can connect the 1394 cable to ASUS Q-Connector (1394, red) first, and

then install the Q-Connector (1394) to the 1394 connector onboard.

STRIKER

®

STRIKER

IEEE 1394 connector

IE1394_2

PIN1

GN
D

+12V

TPB2

-

GN
D

TP

A2-

+12V

TPB2+

GN
D

TP

A2+
