3.3 Attaching the rails to the rack

To attach the rack rails:

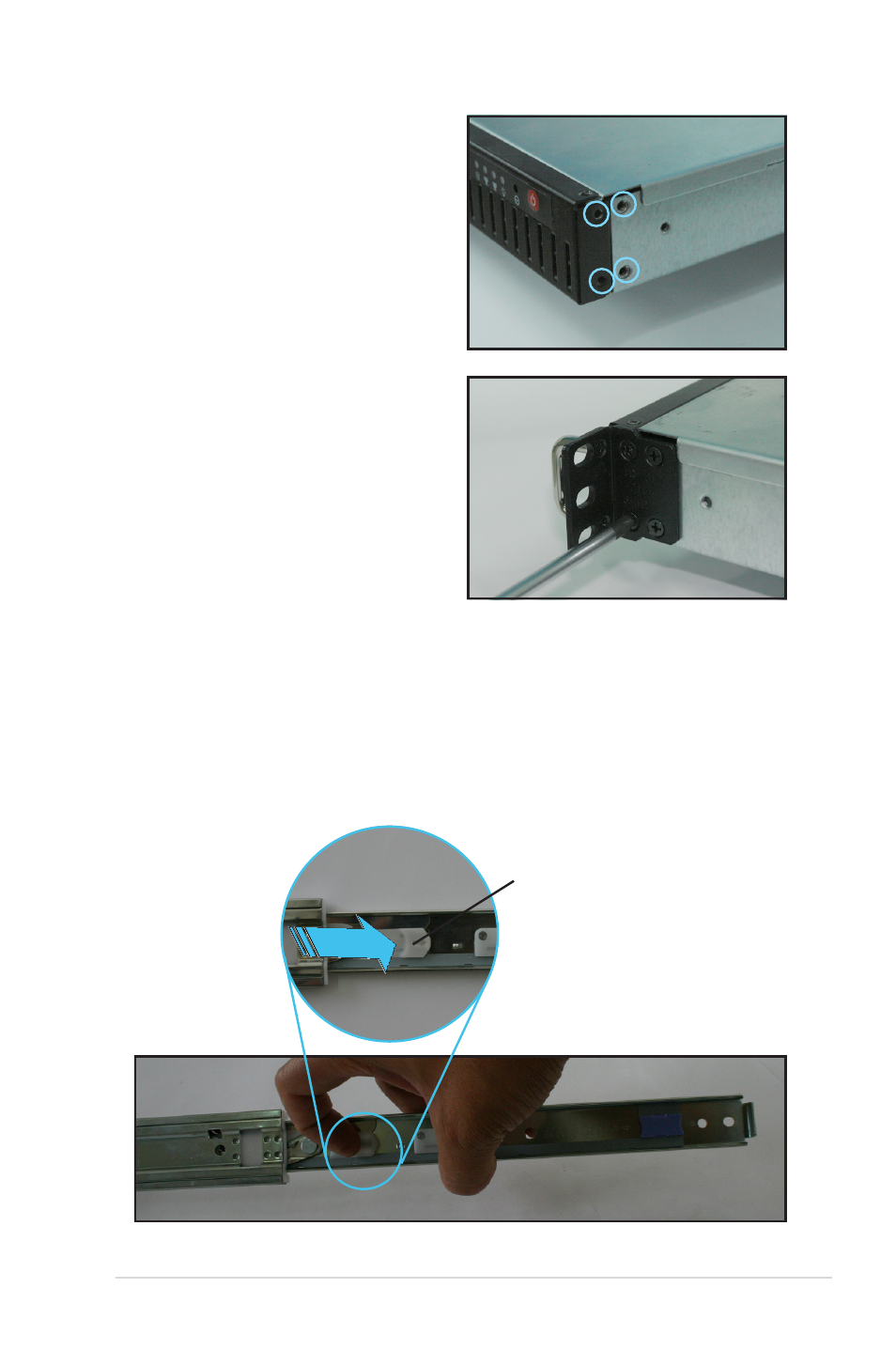

1. Release the inner rail on each rail set, by sliding the latch to direction as

indicated by arrow. When released, pull out the inner rail.

Latch

2. Locate the four screw holes on

each front-side of the chassis.

Select one side for installation.

3. Get one rack ear and match the

four screw holes to the screw

holes on the chassis. Orient the

rack ear as shown.

4. Secure the rack ear to the chassis

with four screws.

5. Repeat steps 2 - 4 to attach the

other rack ear.
