Chapter 2: Hardware setup 2-14

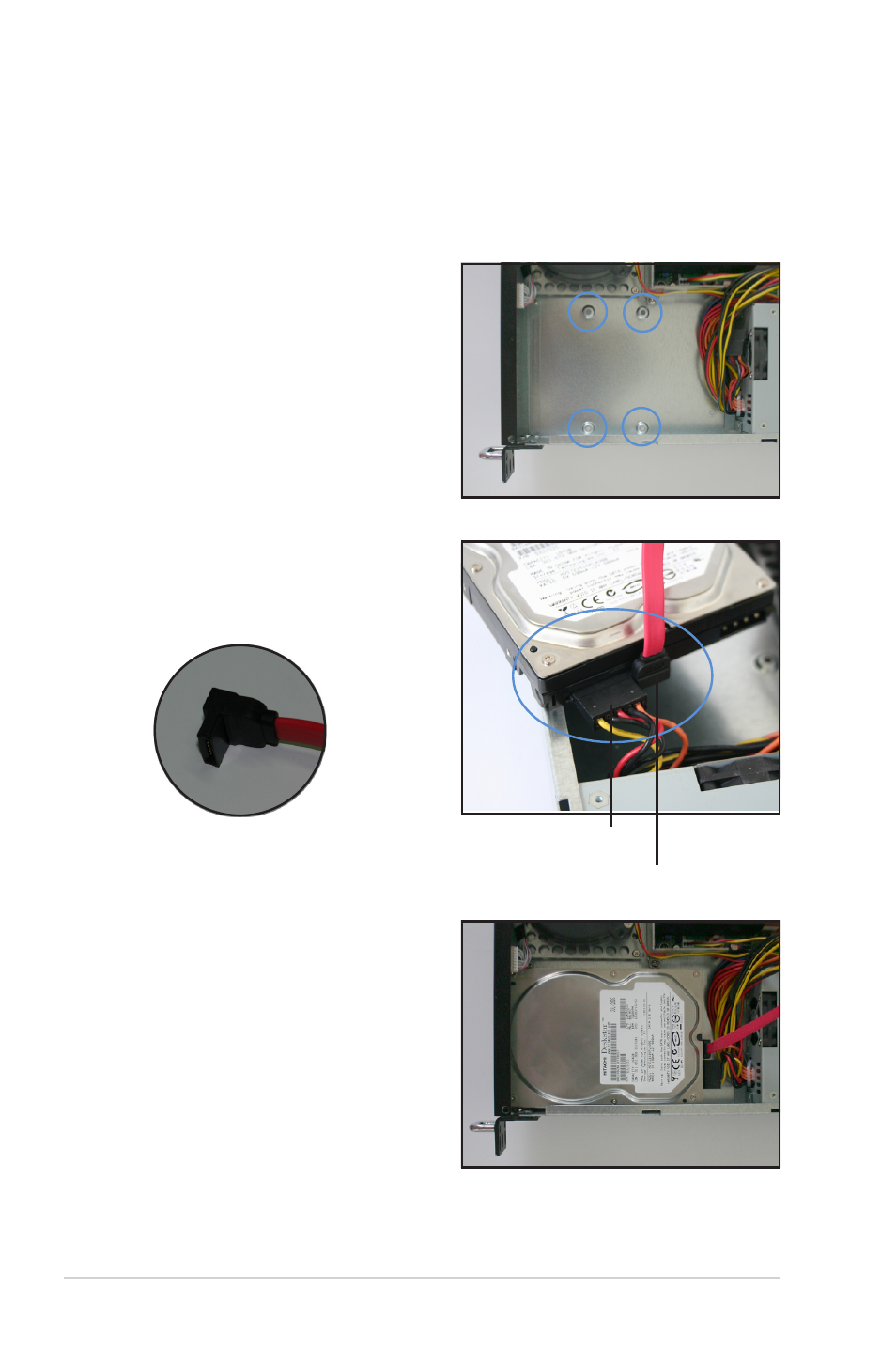

2.5.2 Installing Serial ATA drives
To install primary Serial ATA drive:
1. Locate the Serial ATA drive bay
beside the power supply unit. Notice
the four standard screw holes.
You can install up to two (2) Serial ATA hard disk drives to the system.
Follow the succeeding instructions to install each of the drives.
2. Connect the Serial ATA signal cable
and ATX power connectors. Use
the L-type Serial ATA connector to
connect to the hard drive.
SATA L-type
connector
3. Place the Serial ATA drive into the
drive bay matching the four screw
holes with the holes on the disk
drive.
ATX power connector
SATA signal cable
