Intel matrix storage – Asus RS100-E4/PI2 User Manual

Page 137

ASUS RS100-E4/PI2

7-5

Intel Matrix Storage

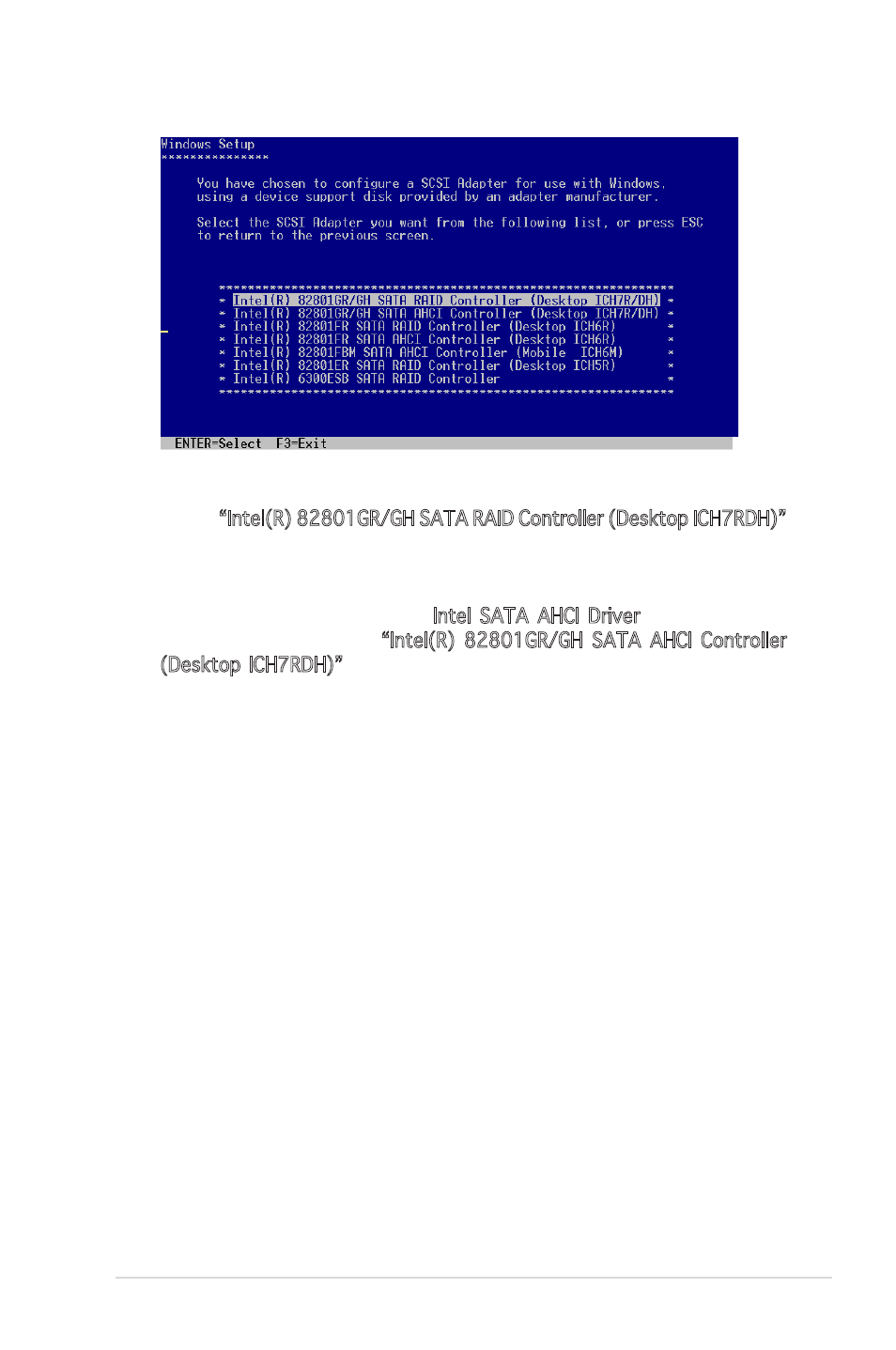

Select “Intel(R) 82801GR/GH SATA RAID Controller (Desktop ICH7RDH)”

for Intel Matrix Storage RAID mode from the list, then press .

If you configured SATA as AHCI Mode in the BIOS setup utility of IDE

Configuration, first install the Intel SATA AHCI Driver during windows

setup. Then, select the “Intel(R) 82801GR/GH SATA AHCI Controller

(Desktop ICH7RDH)” from the list. Refer to section “7.1.1 Creating a

RAID driver disk” to create the Intel SATA Driver for windows system.

6. The Windows

2000/2003 Setup loads the RAID controller drivers

from the RAID driver disk. When prompted, press to continue

installation.

7. Setup then proceeds with the OS installation. Follow screen

instructions to continue.
