Chapter 1: Product introduction 1-4

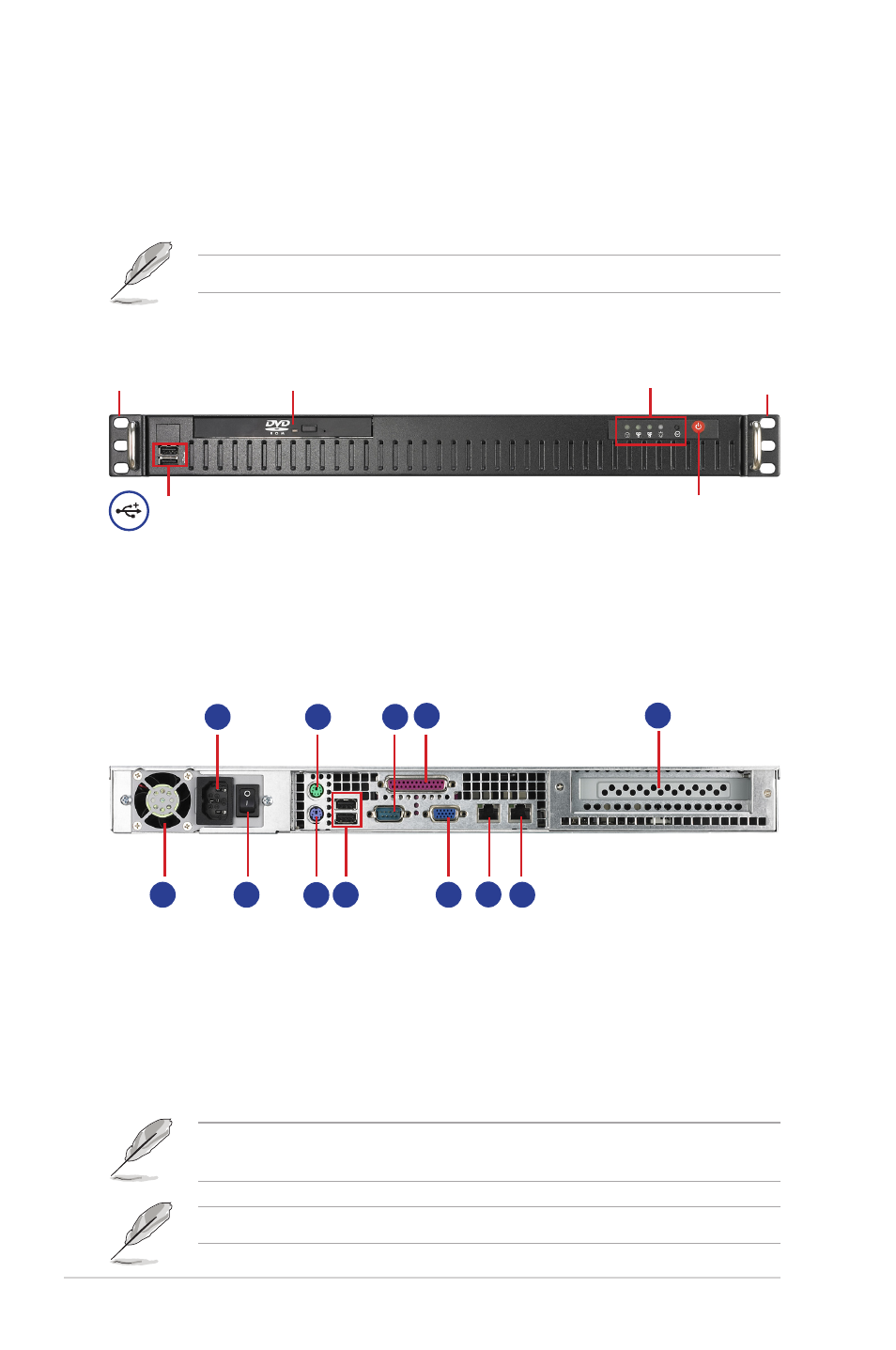

1.3 Front panel features
The barebone server displays a simple yet stylish front panel with easily
accessible features. The power and reset buttons, LED indicators, location
switch, optical drive, and two USB ports are located on the front panel.
Refer to section 1.6.1 Front panel LEDs for the LED descriptions.
Rack ear
USB ports
Rack ear
Power button
Optical drive
1.4 Rear panel features
The rear panel includes the power switch, expansion slot, system power
socket, and power fan. The middle part includes the I/O shield with
openings for the rear panel connectors on the motherboard.
1. AC power plug
2. PS/2 mouse port
3. Serial port
4. Parallel port
5. Expansion slot
6. Power fan 7. Power switch
8. PS/2 keyboard port
9. USB ports
10. VGA port
11. LAN port1
12. LAN port2
1
6
2
11 10 9 8
3
12
5
The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit
LAN do not appear on the rear panel if motherboard is not present.
Refer to section 1.6.2 Rear panel LEDs for the LED descriptions.
HDD Access, LAN, Power LED
7
4
