2-26 Chapter 2: Hardware information
7. Front and rear fan connectors (3-pin FRNT_FAN1, FRNT_
FAN2, FRNT_FAN3, FRNT_FAN4, FRNT_FAN5, FRNT_FAN6,
REAR_FAN1, REAR_FAN2, REAR_FAN3, REAR_FAN4)
The fan connectors support cooling fans of 350mA~2000mA (24
W max.) or a total of 1A~3.48A (41.76 W max.) at +12V. Connect
the fan cables to the fan connectors on the motherboard, making
sure that the black wire of each cable matches the ground pin of the
connector.
• Do not forget to connect the fan cables to the fan connectors. Lack
of sufficient air flow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on
the fan connectors!
• All fan features the ASUS Smart Fan technology.
R
KFN4-DRE

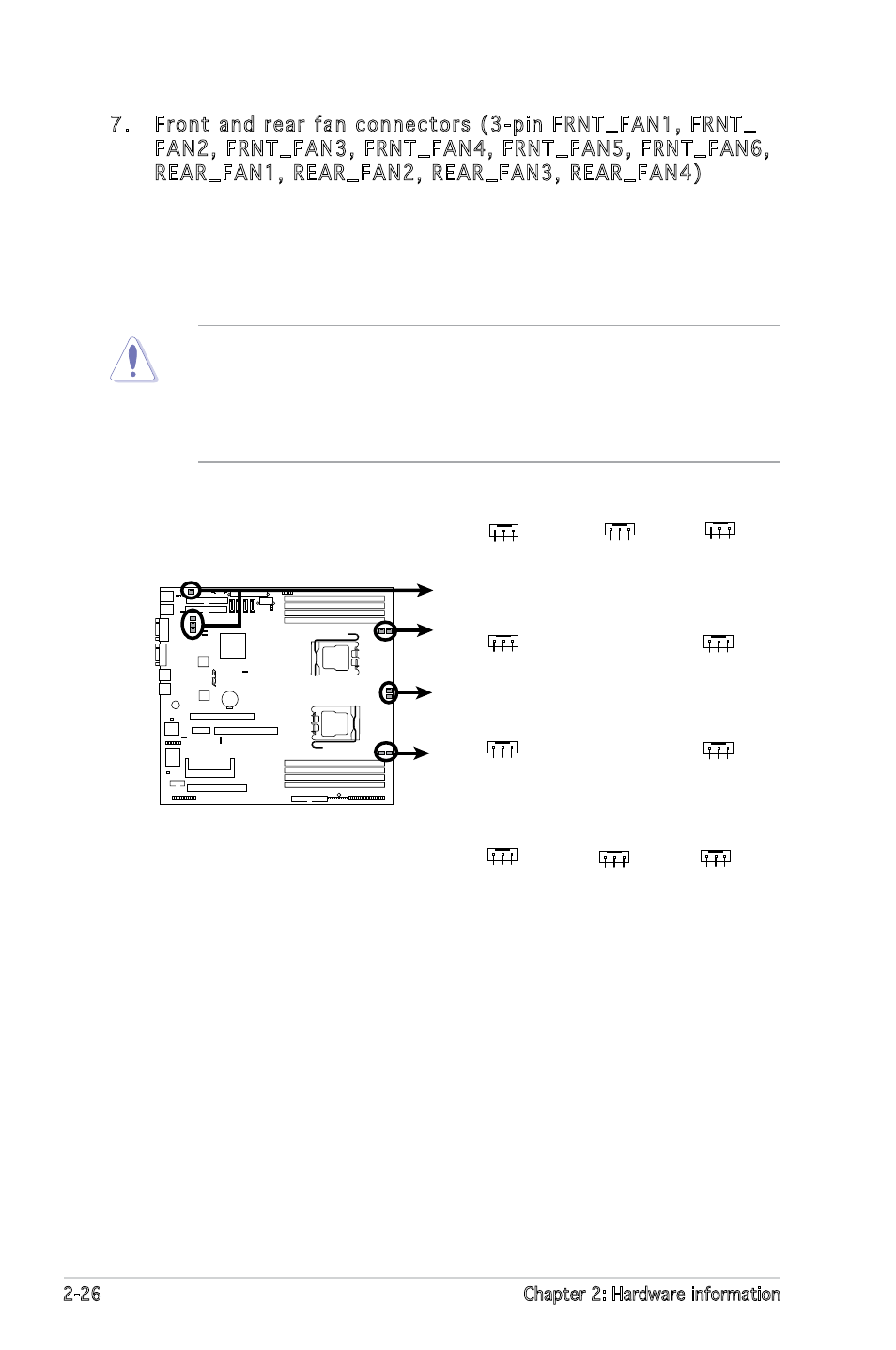

KFN4-DRE Fan Connectors
GN
D Rotatio
n
+12V
REAR_FAN3
GN
D Rotatio
n
+12V
REAR_FAN2
GN
D Rotatio
n
+12V
REAR_FAN1
GN
D Rotatio
n
+12V
REAR_FAN4
GN
D Rotatio
n
+12V
GN
D Rotatio
n
+12V
GN
D Rotatio
n
+12V
GN
D Rotatio
n
+12V GN
D Rotatio
n
+12V
GN
D Rotatio
n
+12V
FRNT_FAN6 FRNT_FAN5
FRNT_FAN1 FRNT_FAN2
FRNT_FAN3
FRNT_FAN4
