2-18 Chapter 2: Hardware information

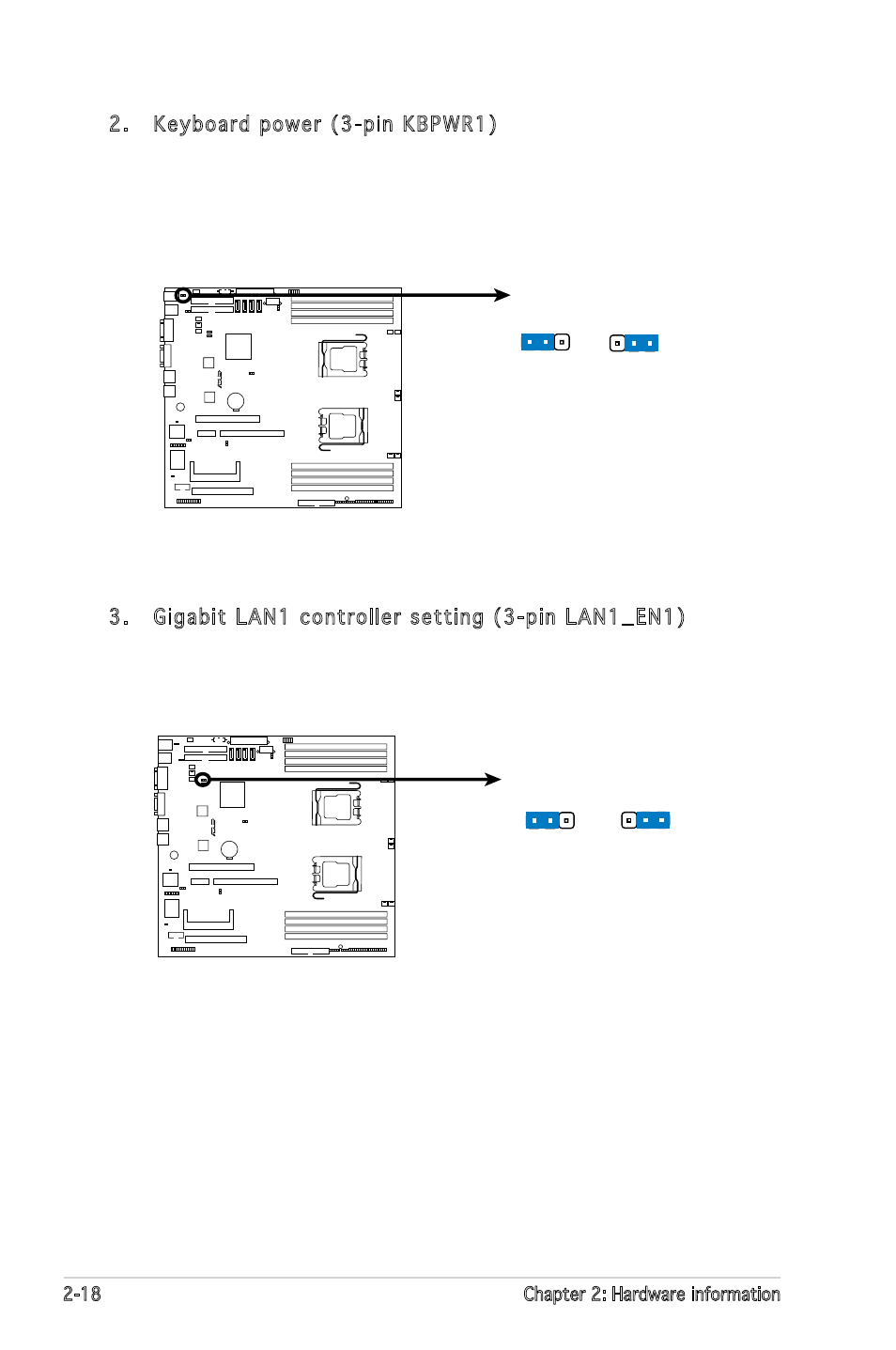

3. Gigabit LAN1 controller setting (3-pin LAN1_EN1)
This jumper allows you to enable or disable the onboard Broadcom ®
BCM5721 Gigabit LAN1 controller. Set to pins 1-2 to activate the
Gigabit LAN feature.
2. Keyboard power (3-pin KBPWR1)
This jumper allows you to enable or disable the keyboard wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer
when you press a key on the keyboard (the default is the Space Bar).
This feature requires an ATX power supply that can supply at least 1A
on the +5VSB lead, and a corresponding setting in the BIOS.
R
KFN4-DRE
KFN4-DRE Keyboard Power Setting
(Default)
+5V +5VSB
KBPWR1
2 3 1 2
R
KFN4-DRE
KFN4-DRE LAN_EN1 Setting
LAN_EN1
Enabled
(Default)
1 2 2 3
Disabled
