ASUS KFN4-DRE 2-11
2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline
Memory Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has
a 240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are
notched differently to prevent installation on a DDR DIMM socket.

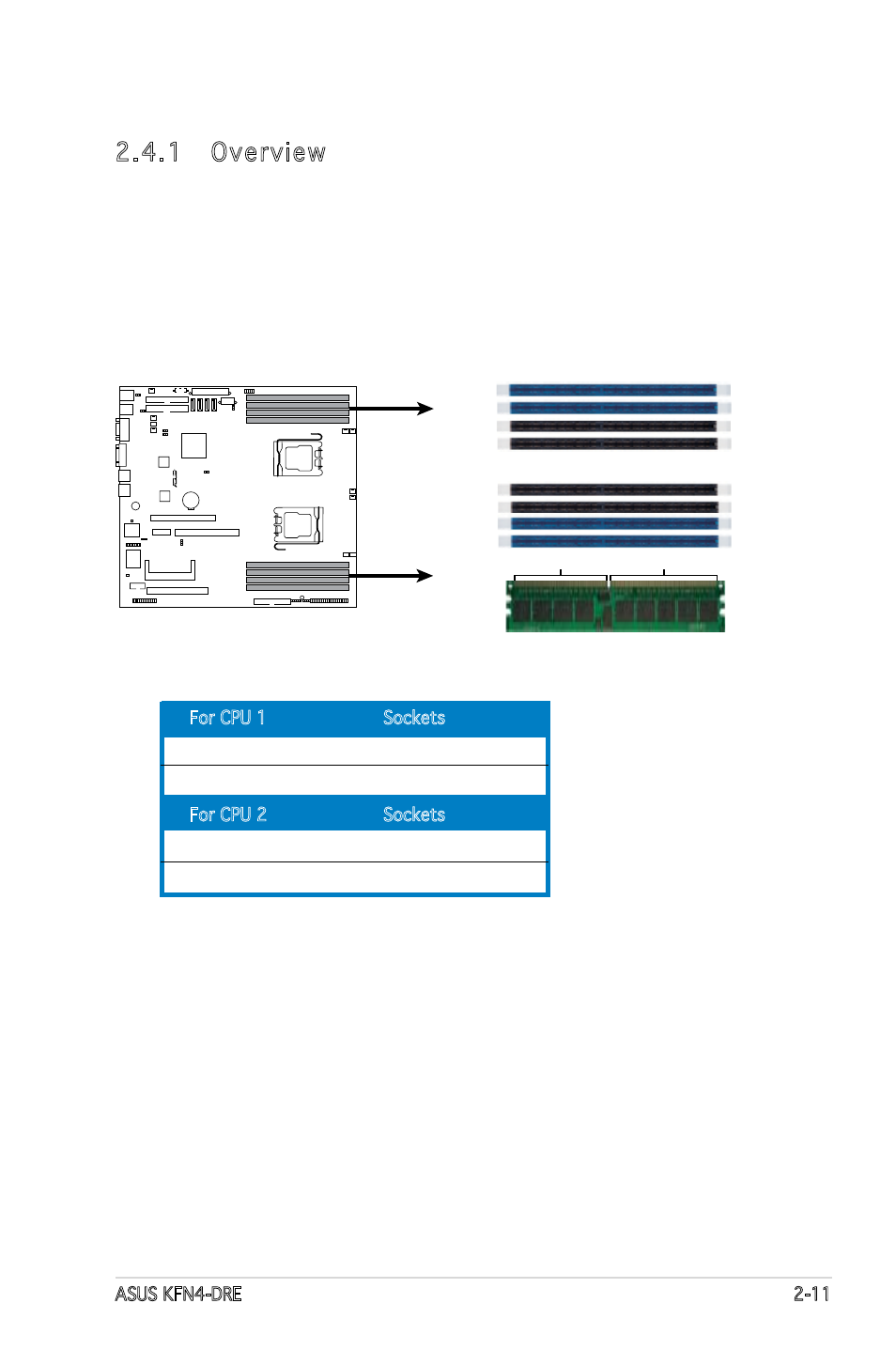

The figure illustrates the location of the DDR2 DIMM sockets:
For CPU 1 Sockets
Channel A DIMM_A1 and DIMM_A2
Channel B DIMM_B1 and DIMM_B2
For CPU 2 Sockets
Channel A DIMM_C1 and DIMM_C2
Channel B DIMM_D1 and DIMM_D2
R
KFN4-DRE
KFN4-DRE 240-pin DDR2 DIMM Sockets
112 Pins 128 Pins
DIMM_B1
DIMM_A2
DIMM_A1
DIMM_B2
DIMM_D1
DIMM_C2
DIMM_D2
DIMM_C1
