Page 31

2-13

ASUS RS120-E5/S

2.5

Expansion slot

2.5.1

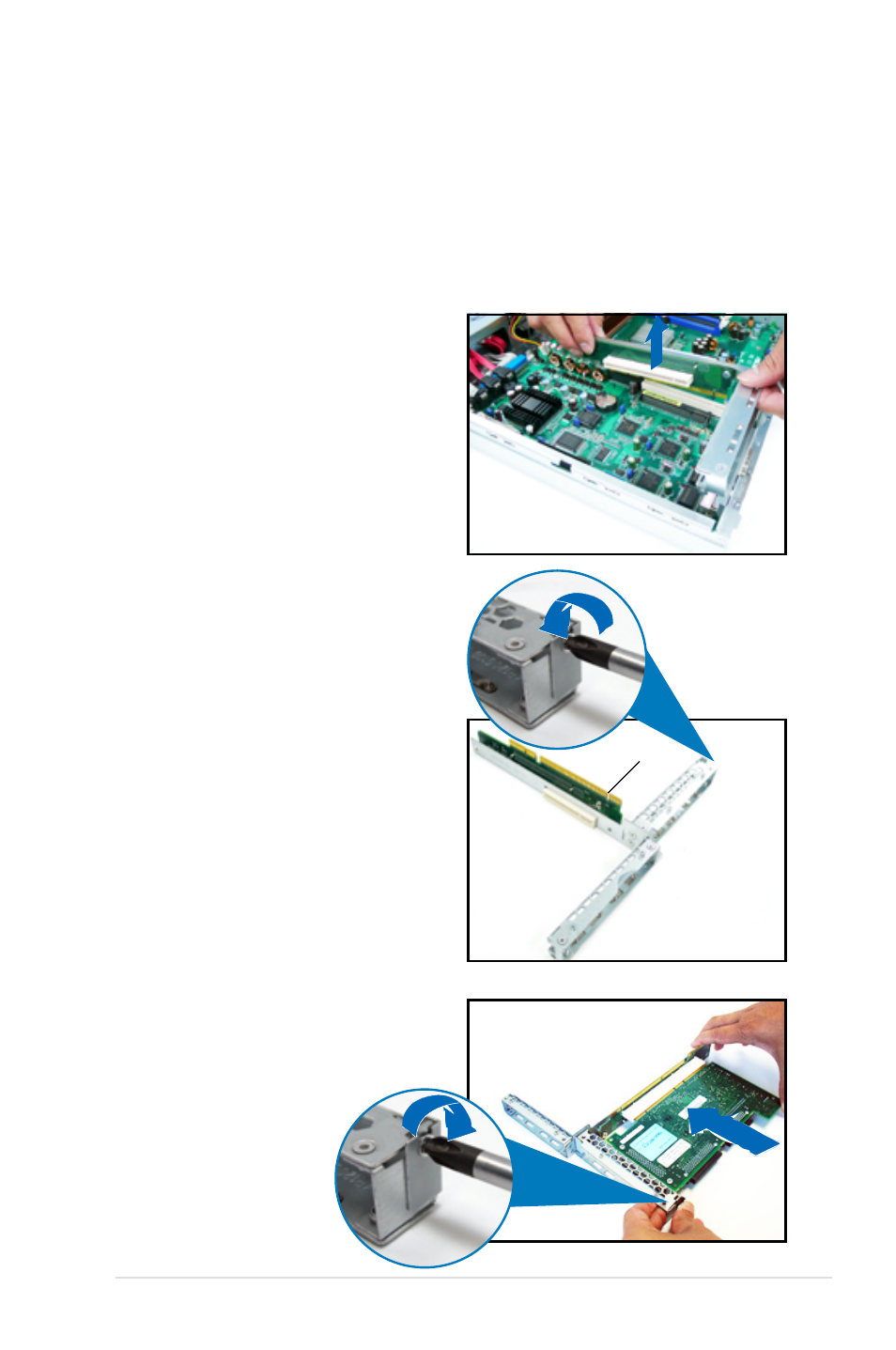

Installing an expansion card to the riser card bracket

The barebone server comes with a riser card bracket. You need to remove the

bracket if you want to install a PCIE X16 (x8 link) and/or a PCIE x8 (x4 link)

expansion cards.
To install a PCIE x8 card:

2. Place the riser card bracket on

a flat and stable surface, then

remove the screw from the PCIE x8

slot bay.

3. Install a PCIE x8 card to the

bracket as shown, then secure the

card with a screw.

1. Firmly hold the riser card bracket,

then pull it up to detach it from

the PCI Express slot on the

motherboard.

PCIE x8 slot
