ASUS RS120-E5/S 1-5

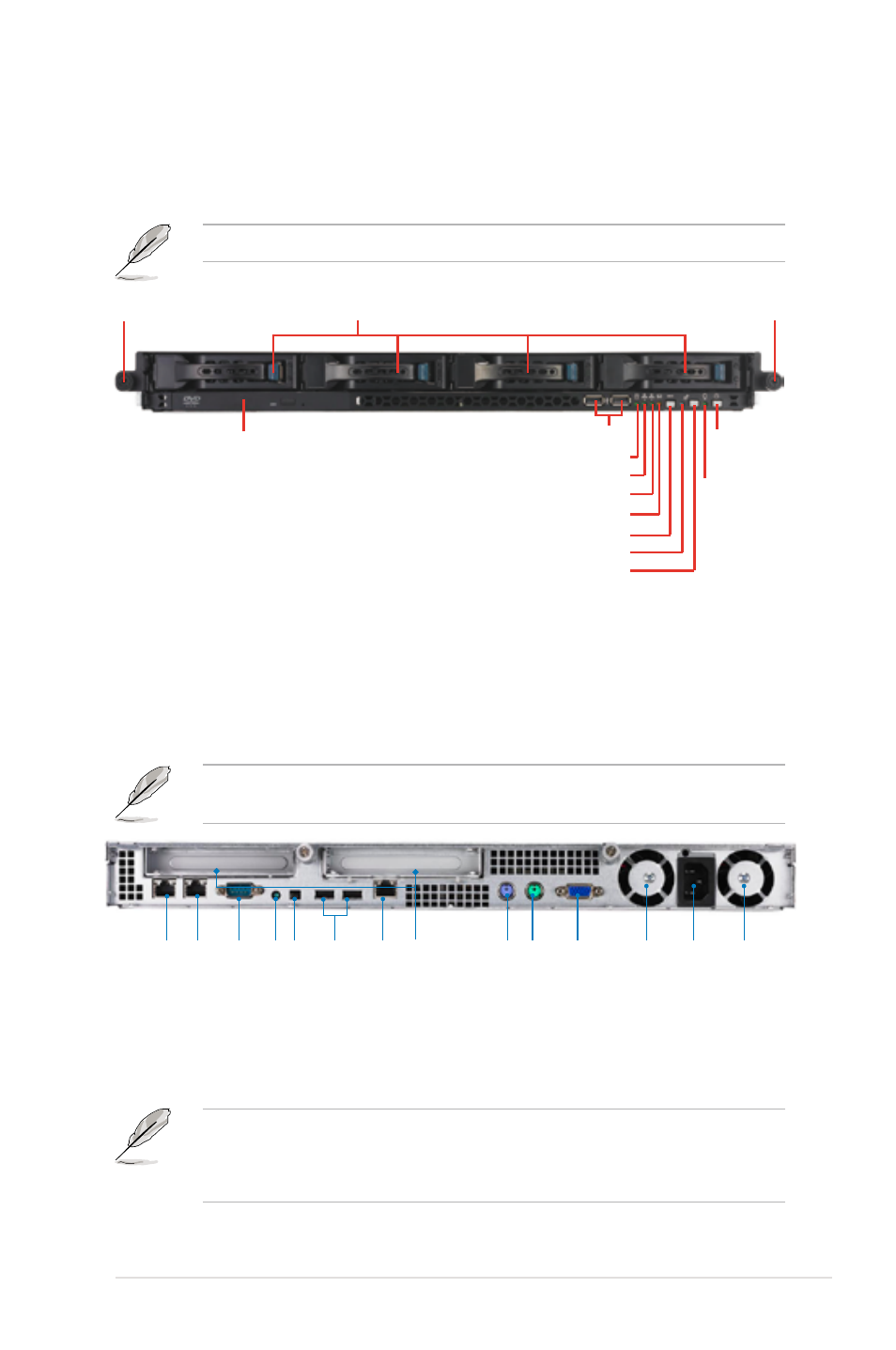

1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible
features. The power and reset buttons, LED indicators, optical drive, and two USB
ports are located on the front panel.
Refer to section 1.7.1 Front panel LEDs for the LED descriptions.
1.5 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans.
The middle part includes the I/O shield with openings for the rear panel connectors
on the motherboard.
The ports for the PS/2 keyboard, PS/2 mouse, USB, VGA, and Gigabit LAN do
not appear on the rear panel if motherboard is not present.
Hot-swap HDD bays
Optical drive
Rack screw Rack screw
USB ports
LAN2 LED
HDD Access LED
LAN1 LED
Message LED
Power
button
Power
LED
Location switch
Reset button
Location LED
Power fan PS/2 keyboard port PS/2 mouse port AC power socket USB ports LAN port1 Serial port VGA
port Expansion slot LAN port2 Power fan Locator LED Locator switch LAN port for iKVM*
• Refer to section 1.7.4 Rear panel LEDs for the LED descriptions.
• The LAN port for ASMB3 iKVM functions only when you install ASMB3
iKVM management card. Remove the mylar on the LAN port before using.
