1-20 Chapter 1: Motherboard Information
11. Internal audio connectors (4-pin CD1, AUX, MODEM) (on audio
models only)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV tuner, or MPEG card. The MODEM
connector allows the onboard audio to interface with a voice modem
card with a similar connector. It also allows the sharing of mono_in
(such as a phone) and a mono_out (such as a speaker) between the
audio and a voice modem card.
P4SE
®

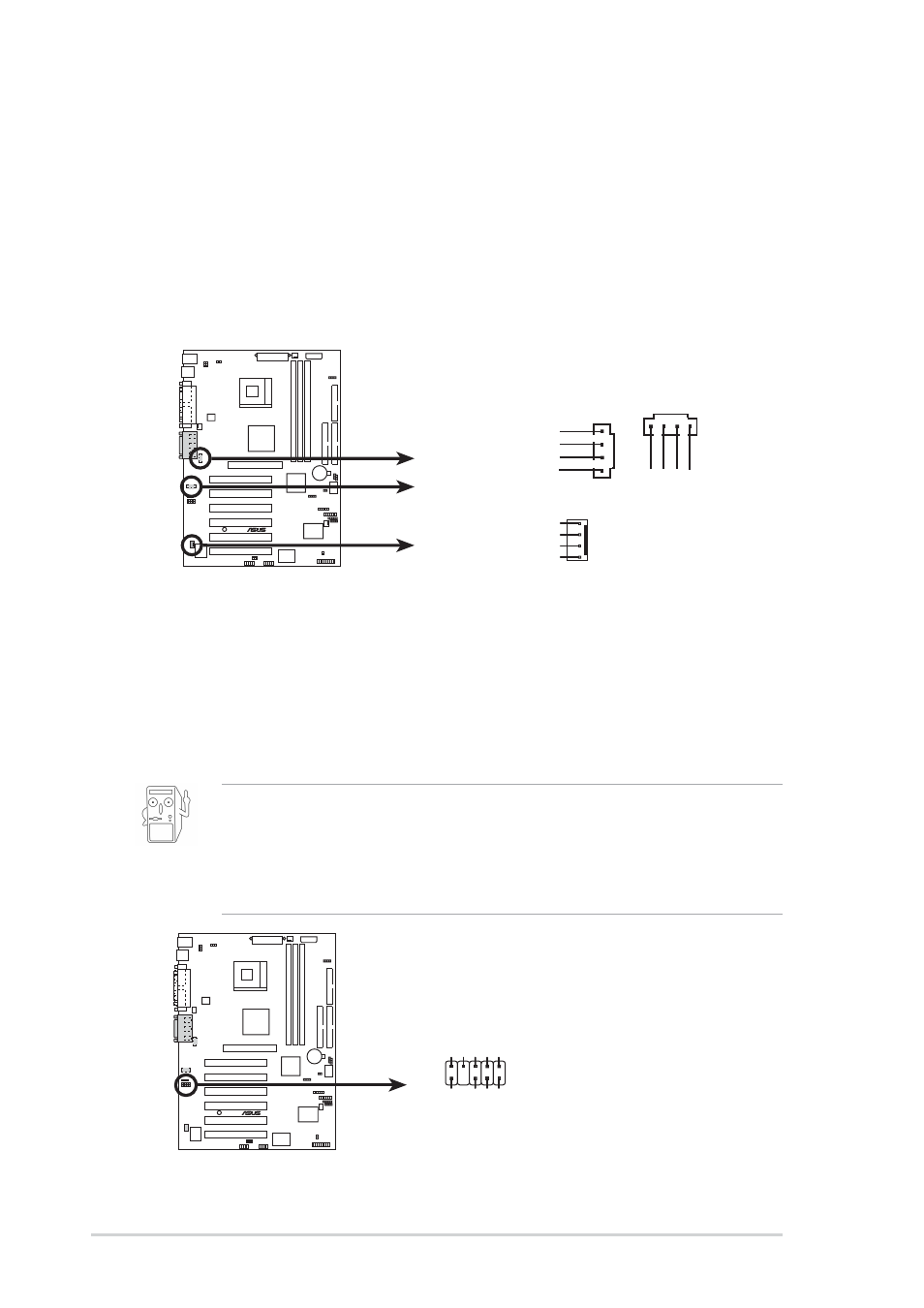

P4SE Internal Audio Connectors
AUX1 (White)
Right Audio Channel
Left Audio Channel
Ground
Ground
CD1 (Black)
Right A
udio Channel
Left A
udio Channel
Ground Ground
MODEM
Modem-Out
Ground
Modem-In
Ground
12. Front panel audio connector (10-1 pin IAPANEL1) (on audio
models only)
This is an interface for the Intel front panel audio cable that allow
convenient connection and control of audio devices.
P4SE
®
P4SE Audio Panel Connector
IAPANEL1
LineOut_RL
MIC LineOut_FR LineOut_FL NC MICPWR
NC
AGND
1
LineOut_RR
Make sure to place jumper caps over pins 1-2 and 5-6 if you do not
connect the Intel front panel audio cable. By default, these pins are
shorted. Before using this connector, make sure that your audio cable
and the front panel audio module (if available) comply with the Intel
Front Panel I/O specification.
