ASUS P4SE Motherboard

1-15

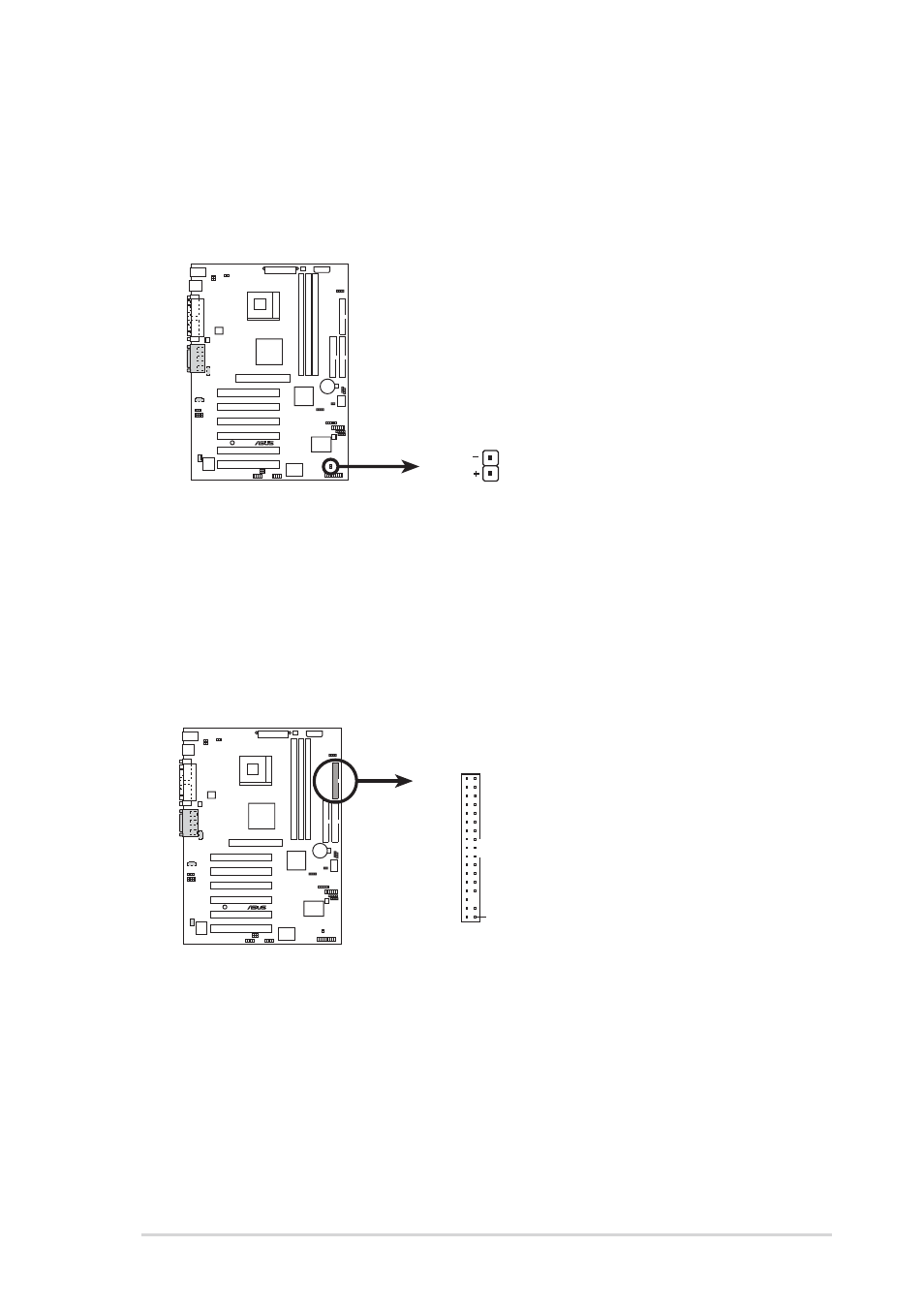

Hard disk activity LED (2-pin IDELED1)

This connector supplies power to the hard disk activity LED. The read
and write activities of devices connected to the primary or secondary
IDE connector cause this LED to light up.

P4SE

P4SE IDE Activity LED

TIP: If the case-mounted LED does not
light, try reversing the 2-pin plug.

IDELED1

Floppy disk drive connector (34-1 pin FLOPPY)

This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the
floppy drive. (Pin 5 is removed to prevent incorrect insertion when
using ribbon cables with pin 5 plug).

P4SE

NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.

P4SE Floppy Disk Drive Connector

PIN 1

FLOPPY1
