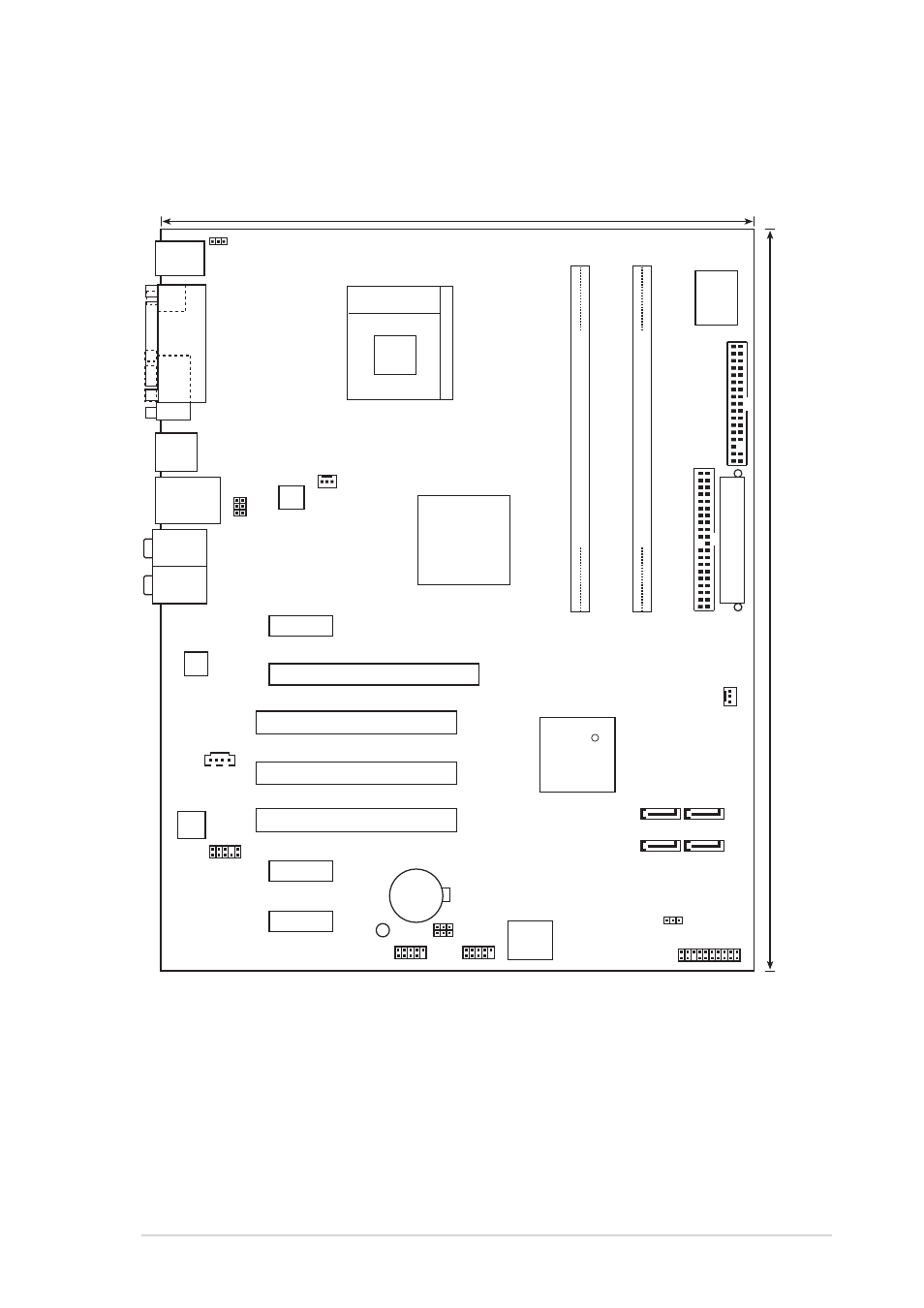

1.5.1 1.5.1 1.5.1 1.5.1 1.5.1 Motherboard layout Motherboard layout Motherboard layout Motherboard layout Motherboard layout
1.5 Motherboard overview
P4GPL-X
CR2032 3V
Lithium Cell
CMOS Power
CD
Super
I/O
Intel FWH
4Mb
ATX12V
FLOPPY
AAFP
DDR DIMM_A1 (64 bit,184-pin module)
KBPWR
SB_PWR
USBPW34 USBPW12
24.4cm (9.6in)
30.5cm (12.0in)
PANEL
USB78 USB56
USBPW78
USBPW56
CLRTC
SATA1
CHA_F
AN
PCI1
Intel
®
915PL
Intel
ICH6
DDR DIMM_B1 (64 bit,184-pin module)
CPU_FAN
PRI_IDE
ALC880
EA
TXPWR
SATA3
SATA2 SATA4
PCI2
PCI3
Marvell
88E8053
R
PS/2KBMS
T: Mouse
B: Keyboard
Below:Mic In
Center:Line Out
Top:Line In
P
ARALLEL
PORT
COM1
SPDIF_O
F_USB12
LAN_USB34
PCIEX1_1
PCIEX1_2
PCIEX1_3
PCIEX16
Socket 478
Below:Bass
Center:
Side surround L/R
Top:
Back surround L/R
