ASUS P7P55D-E Deluxe 2-33
Chapter 2

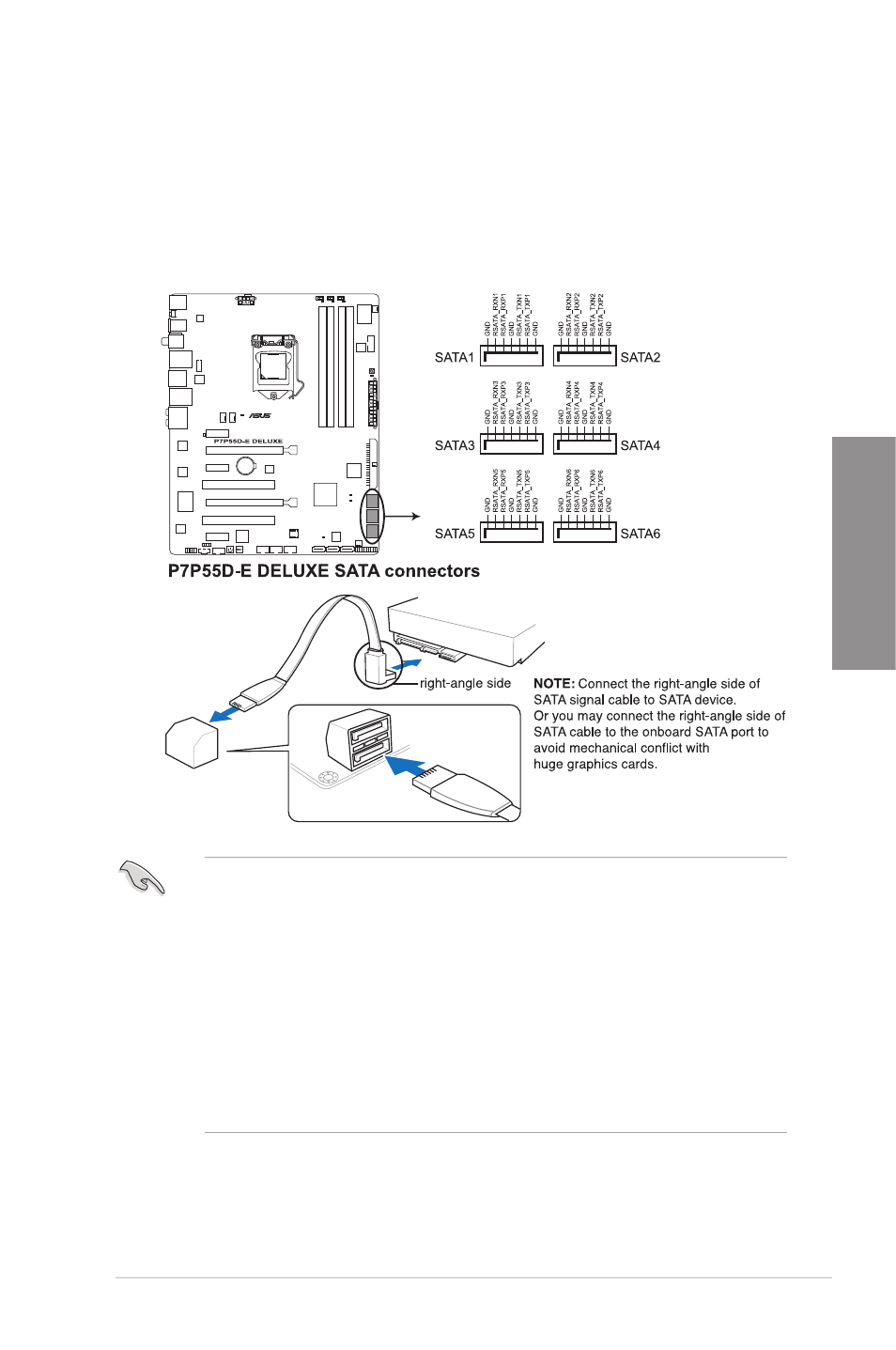

2. Intel ® P55 Serial ATA connectors (7-pin SATA 1-6)
These connectors connect to Serial ATA hard disk drives and optical disc drives via
Serial ATA signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration with the Intel ® Matrix Storage Technology through the onboard Intel ® P55
chipset.
• These connectors are set to Standard IDE mode by default. In Standard IDE mode,
you can connect Serial ATA boot/data hard disk drives to these connectors. If you
intend to create a Serial ATA RAID set using these connectors, set the Configure
SATA as item in the BIOS to [RAID]. Refer to section 3.4.2 Storage Configuration for
details.
• Before creating a RAID set, refer to section 4.4 RAID configurations or the manual
bundled in the motherboard support DVD.
• You must install Windows ® XP Service Pack 2 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP2 or later versions.
• When using hot-plug and NCQ, set the Configure SATA as in the BIOS to [AHCI].
Refer to section 3.4.2 Storage Configuration for details.
