Page 48: Rear panel connectors -28, Chapter 2 2.7 connectors

2-28

Chapter 2: Hardware information

Chapter 2

2.7

Connectors

2.7.1

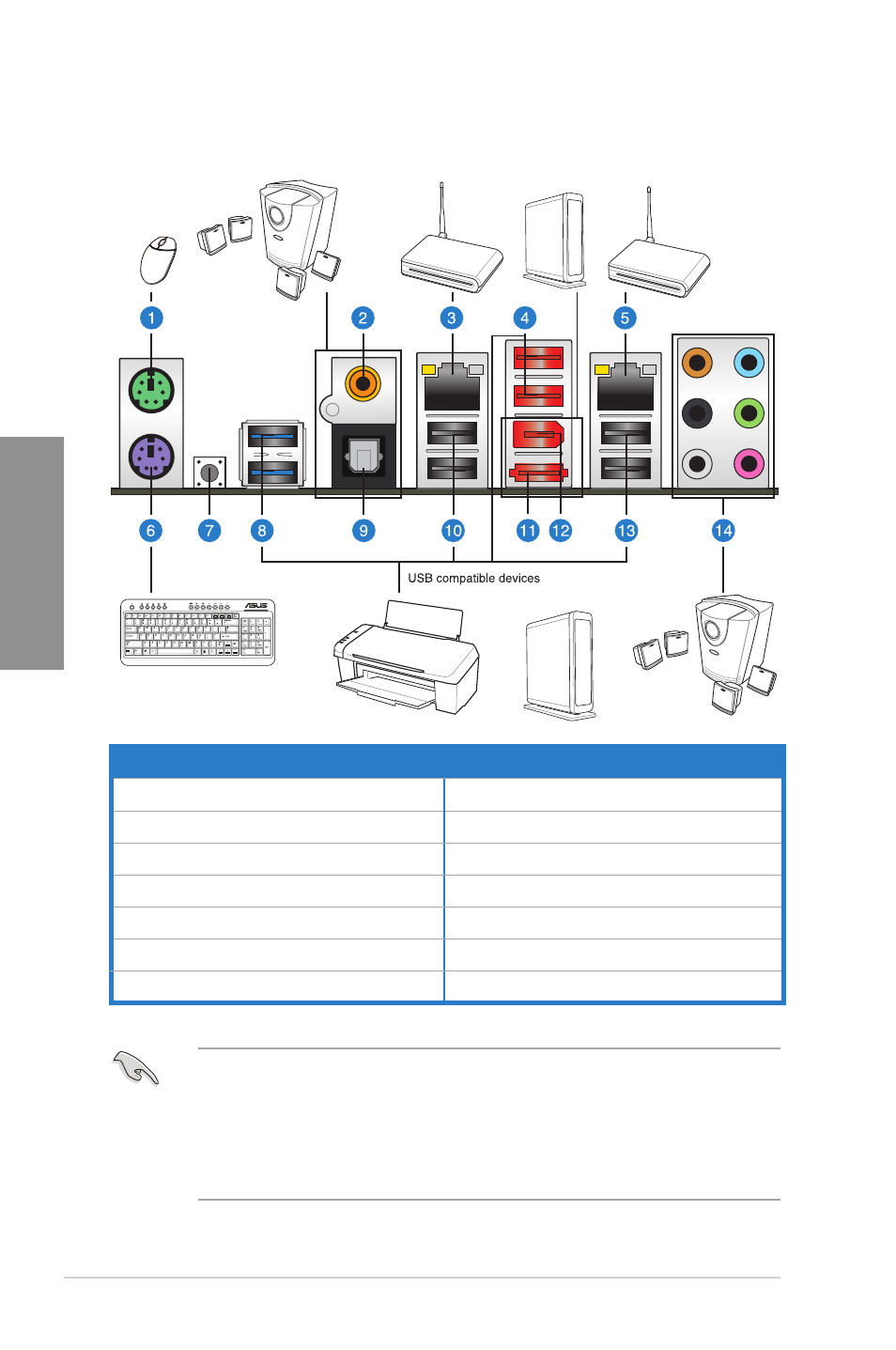

Rear panel connectors

1. PS/2 mouse port (green)

8. USB 3.0 ports 1 and 2

2. Coaxial S/PDIF Out port

9. Optical S/PDIF Out port

3. LAN (RJ-45) port 2*

10. USB 2.0 ports 5 and 6

4. USB 2.0 ports 3 and 4

11. External SATA port

5. LAN (RJ-45) port 1*

12. IEEE 1394a port

6. PS/2 keyboard port (purple)

13. USB 2.0 ports 1 and 2

7. Clear CMOS switch

14. Audio I/O ports**

*and **: Refer to the tables on the next page for LAN port and audio port definitions.

•

Press the Clear CMOS switch to clear BIOS setup information only when the system

hangs due to overclocking.

•

DO NOT insert a different connector to the external SATA port.

•

To enable hot-plugging, set the Controller Mode item in the BIOS setting to [AHCI],

and then reboot the system. See section 3.6.3 Onboard Device Configuration for

details.
