ASUS P7P55D-E Deluxe 2-29
Chapter 2

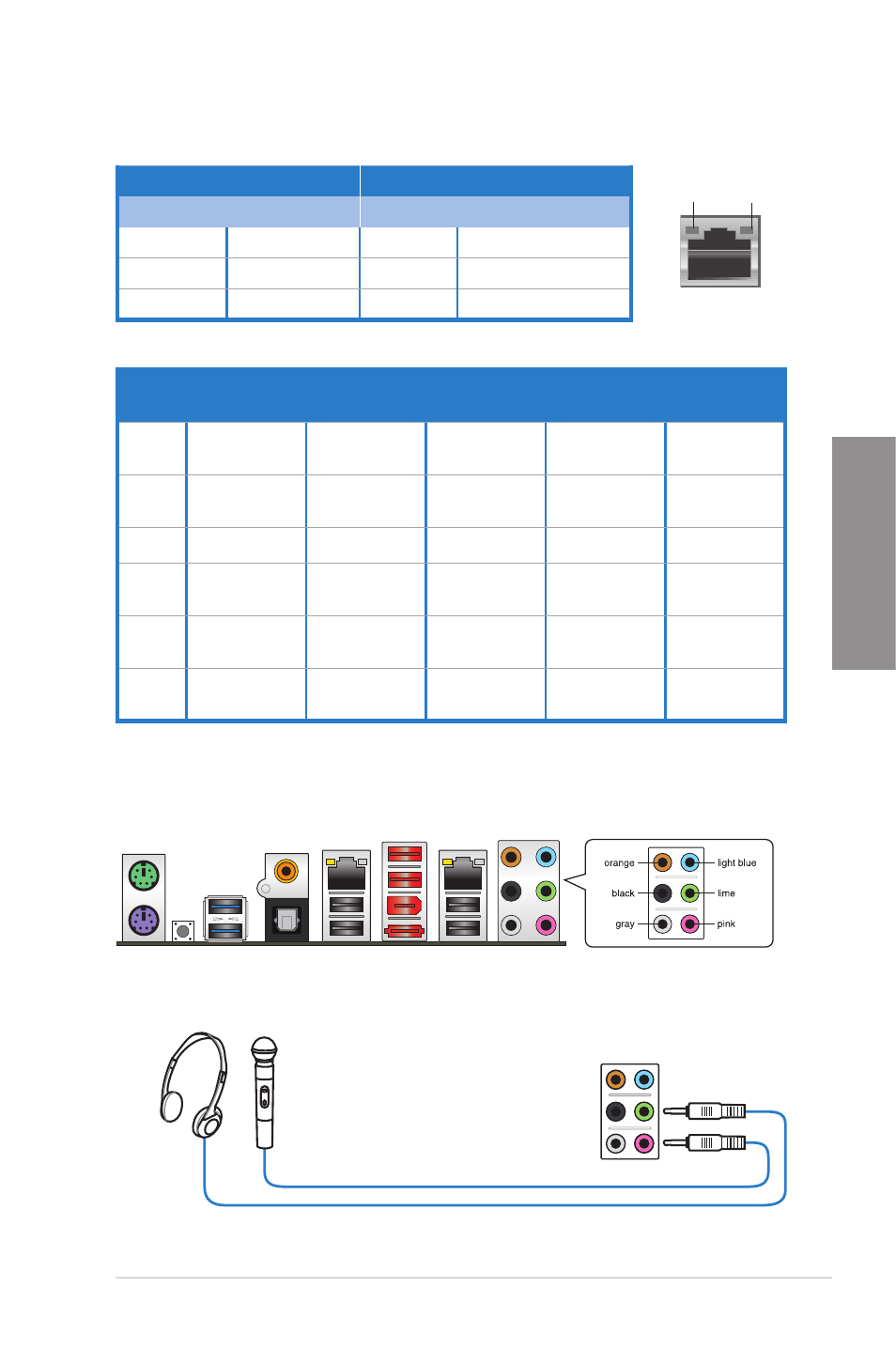

2.7.2 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic
** Audio 2, 4, 6, 8, or 10-channel configuration
Port
Headset
2-channel
4-channel 6-channel 8-channel 10-channel
Light
Blue
Line In Line In Line In Line In
Additional Side
Speaker Out
Lime Line Out
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Front Speaker
Out
Pink Mic In Mic In Mic In Mic In Mic In
Orange – –
Center/
Subwoofer
Center/
Subwoofer
Center/
Subwoofer
Black –
Rear Speaker
Out
Rear Speaker
Out
Rear Speaker
Out
Rear Speaker
Out
Gray – – –
Side Speaker
Out
Side Speaker
Out
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
*LAN port LED indications
SPEED
LED
ACT/LINK
LED
LAN port
