1-26 Chapter 1: Product introduction
10. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports either
HD Audio or legacy AC’97 audio standard.
• We recommend that you connect a high-definition front panel audio
module to this connector to avail of the motherboard’s high-definition audio
capability.
• By default, this connector is set to HD Audio. If you want to connect a
High Definition front panel audio module to this connector, set the Front
Panel Type item in the BIOS to [HD Audio]. See section “2.4.3 Chipset” for
details.
9. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default , the pin labeled “Chassis Signal” and “ Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
P5QPL-VM
+5VSB_M
B
Chassis Signal GN
D
CHASSIS

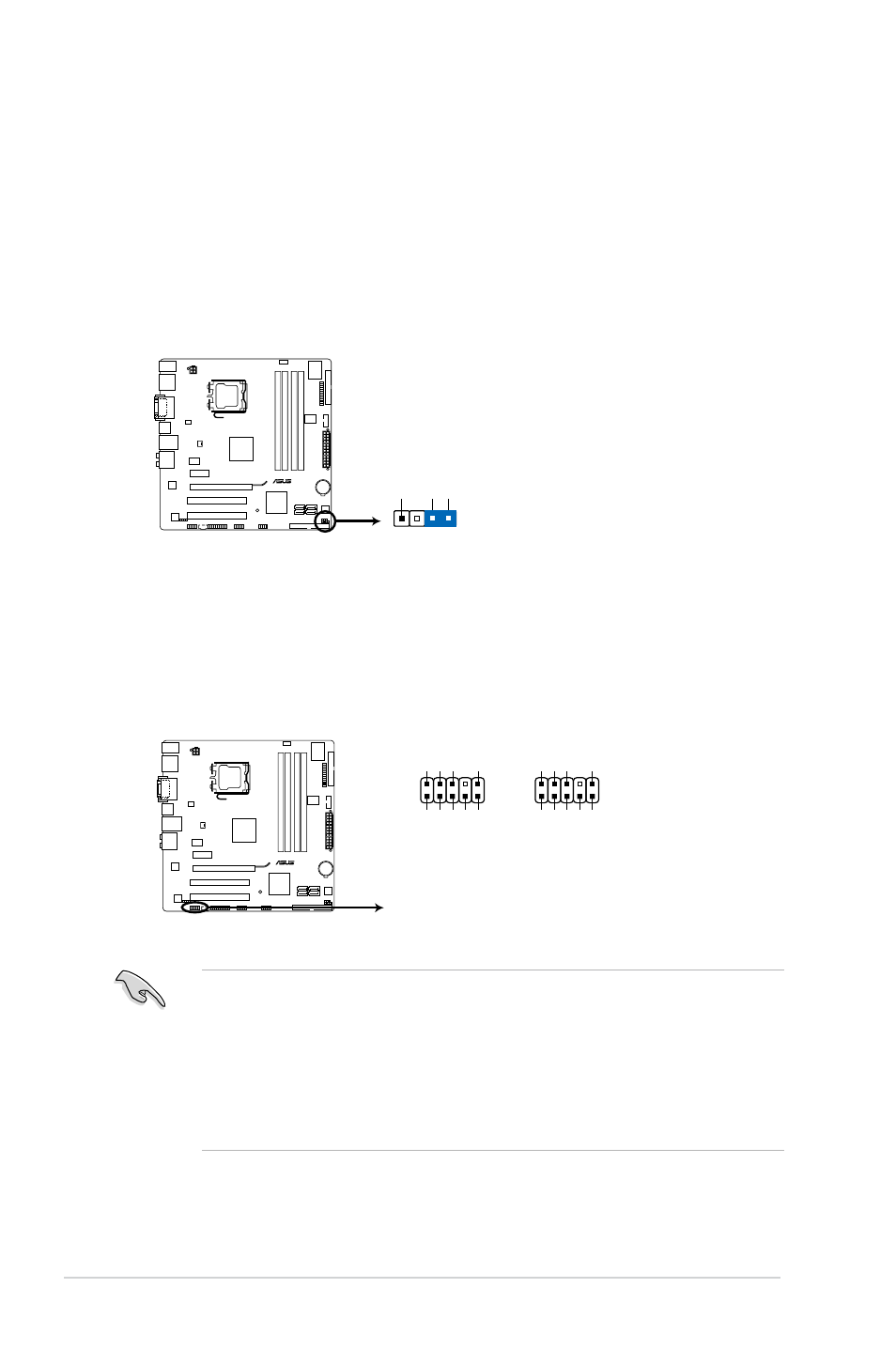

P5QPL-VM Chassis intrusion connector
P5QPL-VM
P5QPL-VM Analog front panel connector
AAFP
PIN 1
GN
D
PRESENCE# SENSE1_RETUR SENSE2_RETUR
PORT1
L
PORT1
R
PORT2
R
SENSE_SEND
PORT1
L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC
2
MICPWR
Line out_
R
NC
Line out_L
Legacy AC’97
compliant definition
