38
4. Hardware Setup
4. Hardware Setup
AP2300 Hardware Reference Guide
Standard Power Supply Power Supply Information
•4-17 Standard Power Supply (Optional)

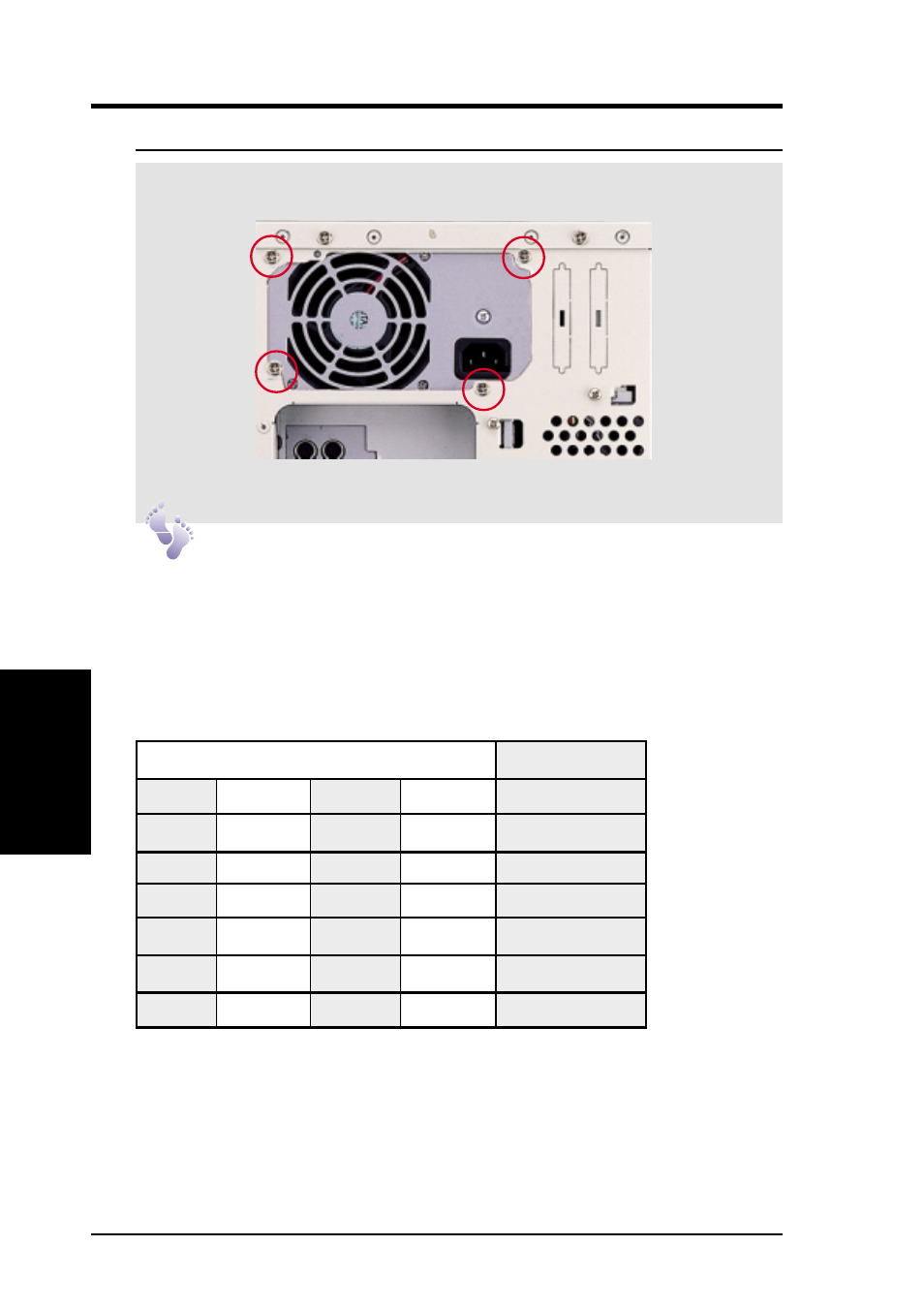

Power Supply Mounting
Mounting and unmounting the power supply must be done from the inside.
Four screws are used to secure the power supply to the chassis back side.
Output Voltage Regulation, Ripple, and Noise
Output Voltage Limits (Vdc) Ripple/Noise
Output Min Nom Max Maximum
1 3.17V 3.30V 3.46V 50mV
p-p
2 4.80V 5.00V 5.25V 50mV
p-p
3 11.40V 12.00V 12.60V 120mV
p-p
4 -4.50V -5.00V -5.50V 120mV
p-p
5 -10.92V -12.00V -13.20V 120mV
p-p
6 4.75V 5.00V 5.25V 50mV
p-p
