26
4. Hardware Setup
4. Hardware Setup
AP2300 Hardware Reference Guide
• 4-8 Fixed Storage Devices
Internal fixed storage devices are mounted on removable trays. There
are four available, one for a floppy device and another three for full-
size devices.

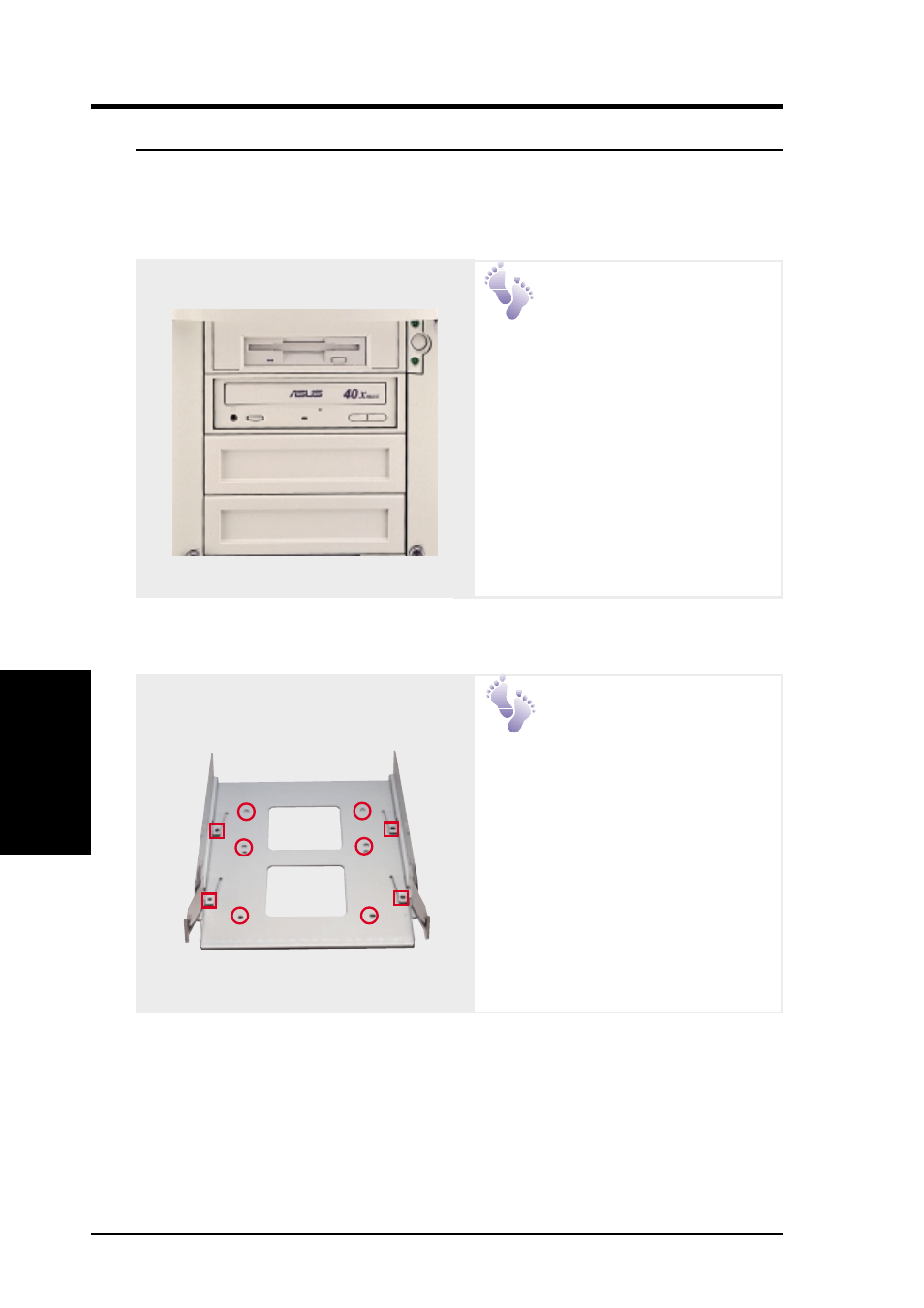

Floppy Drive
and CD-ROM
The floppy drive fits in the top-
most bay along with the power
button. A CD-ROM can fit into
either the second, third, or fourth
bay from the top. A metal clip
on each side of the device tray
secures the tray in place. Press
inward to release the clips. The
tray slides in or out on the side
rails.
Fixed Storage Devices
Fixed Storage
Device Tray
There are six screws provided (as
circled) for mounting a 4 inch de-
vice such as a floppy or hard disk
drive. Four screws are provided
(as boxed) for mounting a 6 inch
device such as a CD-ROM or
tape drive.
