4. Hardware Setup
4. Hardware Setup
AP2300 Hardware Reference Guide
• 4-6
Chassis Intrusion Switch
The chassis provides a micro toggle switch that must be connected to
the motherboard for the chassis intrusion detection to work. The moth-
erboard will signal the ASMA software when the side panel is opened.

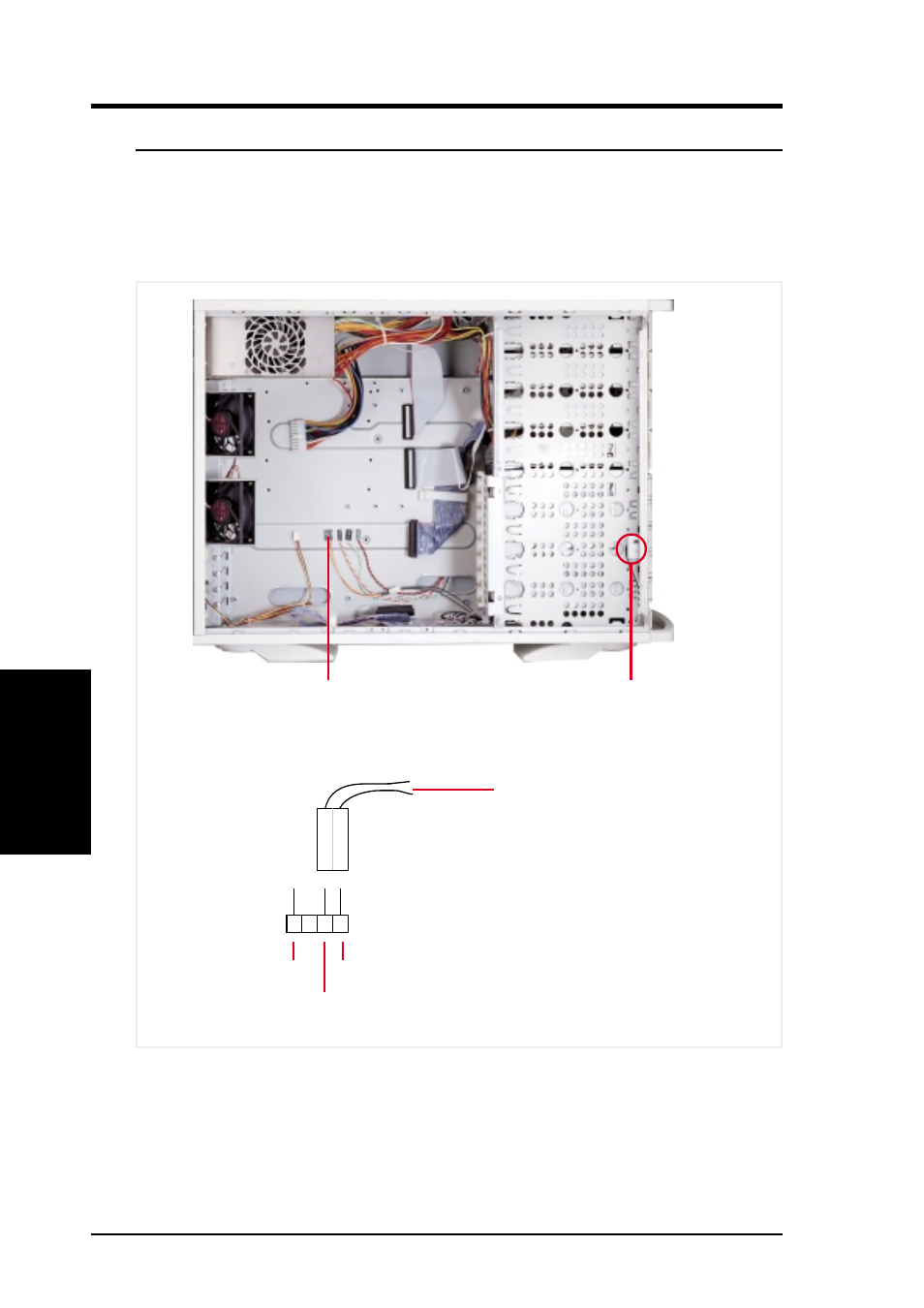

The connection diagram is given here.
Chassis Intrusion Switches
(one on each side)
Cable
Chassis Intrusion Switch
Motherboard’s
Chassis Intrusion Lead
from the two Chassis
Intrusion Switches
(No Connection)
Chasis Signal
GND
