4. Hardware Setup

4. Hardware Setup

AP2300 Hardware Reference Guide

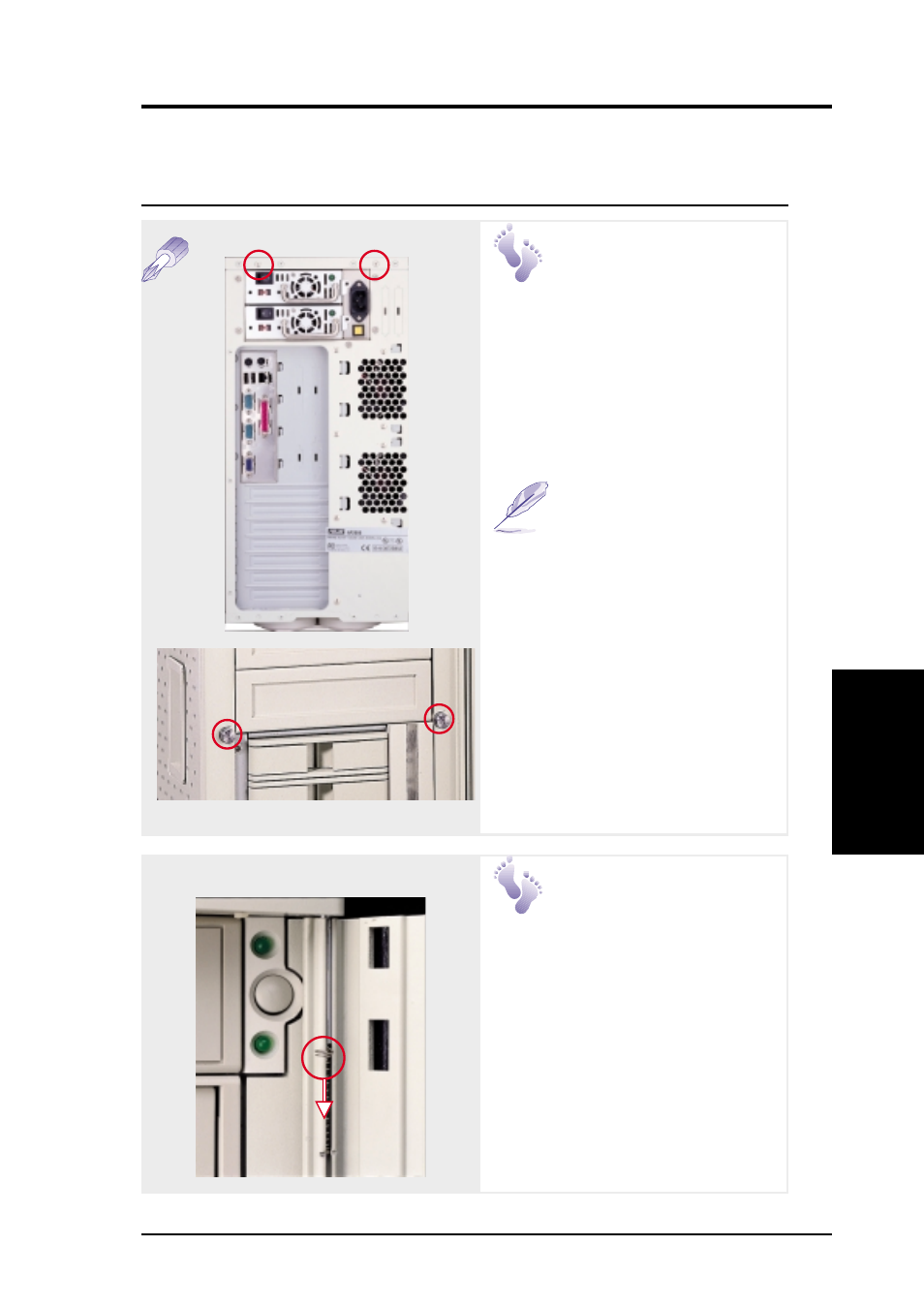

Panel Screws

The top panel on the chassis is
secured by two screws on the
back of the server. To open the
top panel, remove the screws
with a screw driver.

NOTE: You do not have

to open the top panel before
removing the left panel.

The side panels are secured by
two large thumb screws on the
front of the server, which can
be turned with your fingers.

Removing the
Front Door

Push down on the hinge spring
to remove the front door.

Opening the Chassis

• 4-1

Opening the Chassis

This section gives descriptions of how to install and remove components.
When setting up devices on the server, perform the following steps.
