20
4. Hardware Setup
4. Hardware Setup
AP2300 Hardware Reference Guide
Spacer

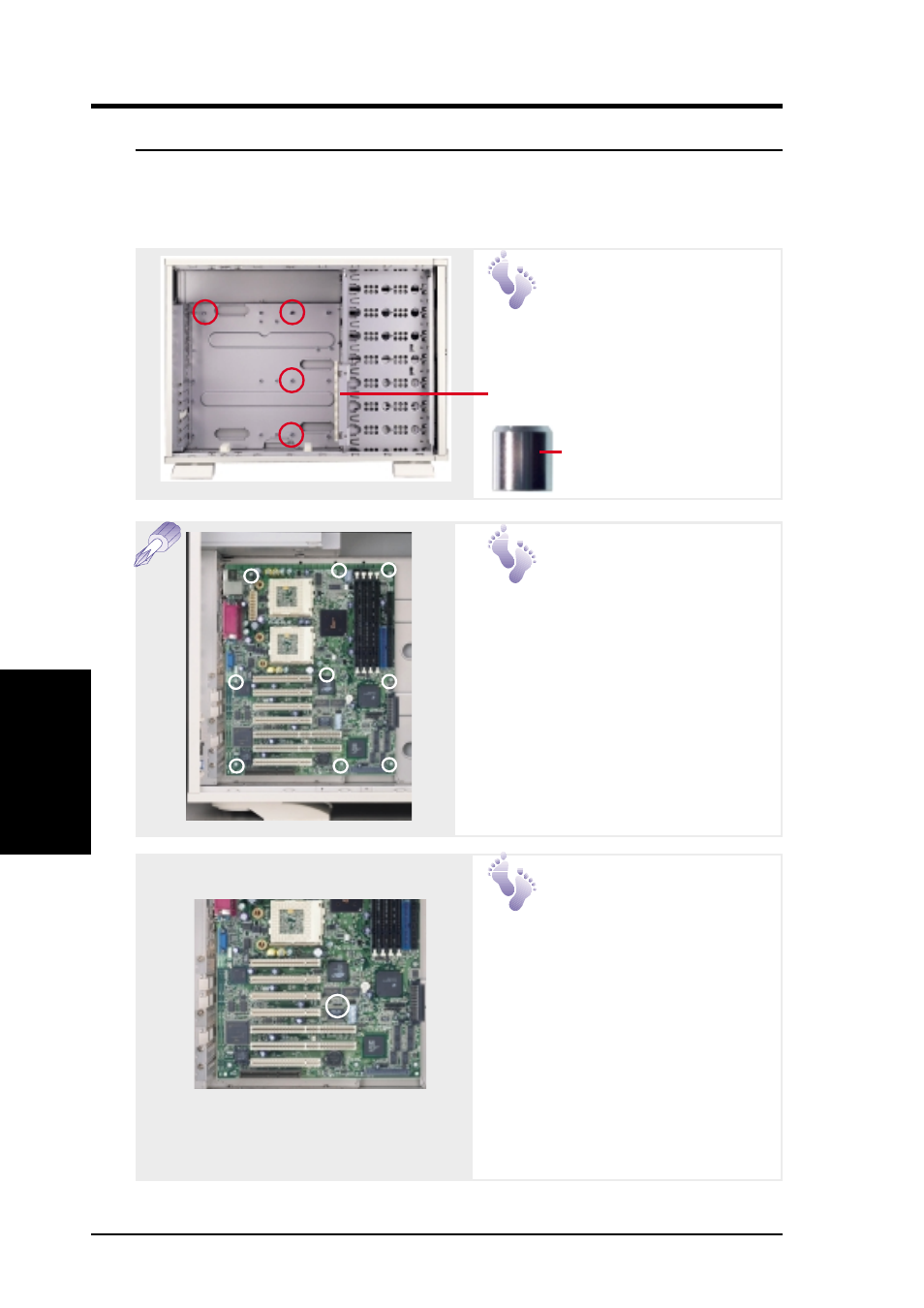

Motherboard Placement
• 4-3 Motherboard Placement
You can remove the extended expansion card guide before installing or re-
moving the motherboard. All screws are necessary to provide the needed
stabilization to support all the motherboard expansion cards used in this
chassis.
Motherboard
Spacers
Place four spacers in the ar-
eas circled on the chassis.
Extended Expansion Card Guide
Motherboard
Screws
Place nine screws in the areas
circled on the motherboard. The
four screws used with the moth-
erboard spacers are longer than
the others. Be careful not to over-
tighten the screws. Doing so may
damage your motherboard.
Chassis Intrusion Connector
Chassis
Intrusion
Connector
The two chassis intrusion
switches are connected to the
motherboard’s chassis intru-
sion connector through a
single connector.
