11. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
P5N73-AM
R

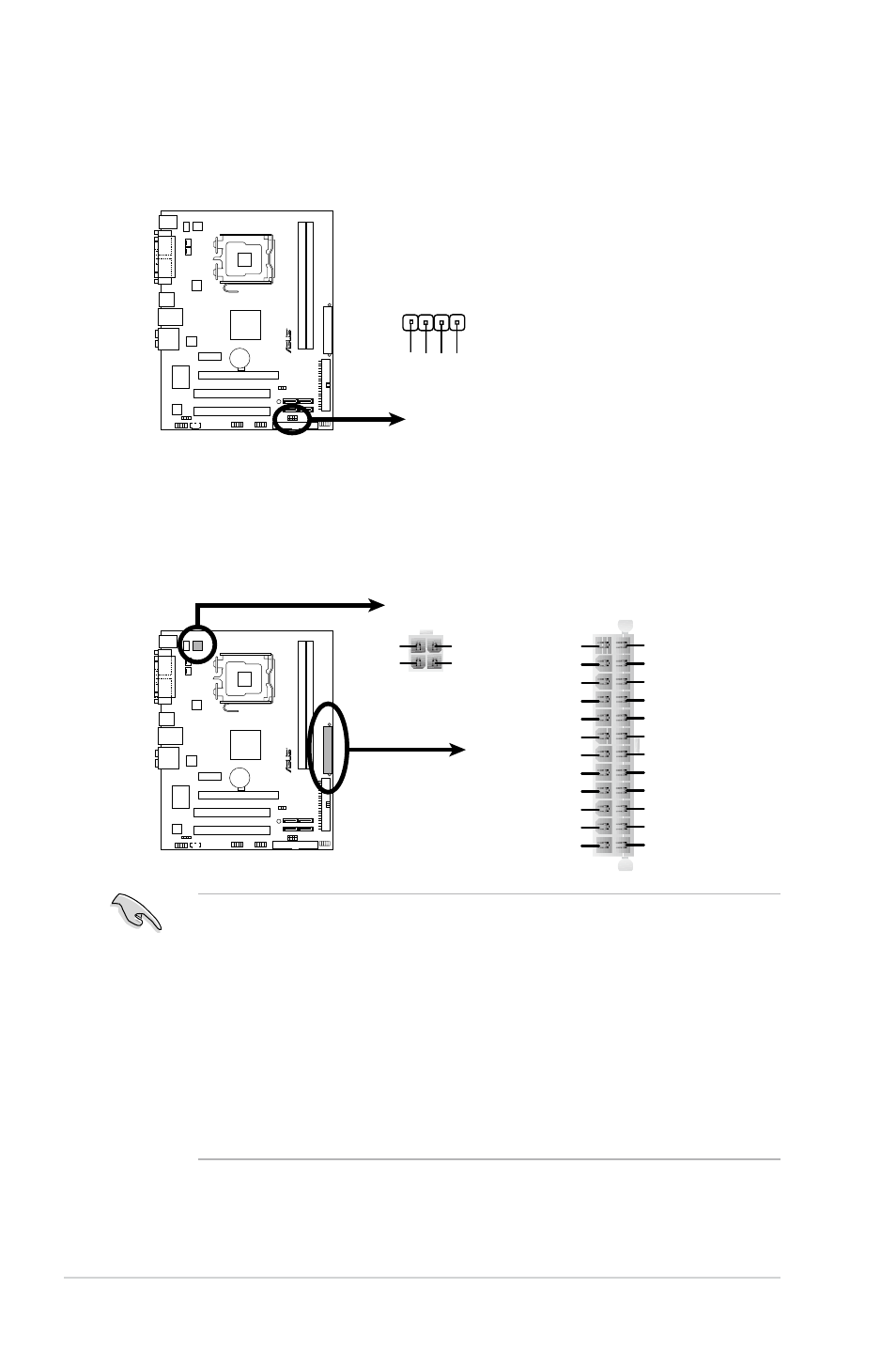

P5N73-AM ATX Power Connector
EATXPWR
+3 Volts
+3 Volts
Ground
+5 Volts
+5 Volts
Ground
Ground
Power OK
+5V Standby
+12 Volts
-5 Volts
+5 Volts
+3 Volts
-12 Volts
Ground
Ground
Ground
PSON#
Ground
+5 Volts
+12 Volts
+3 Volts
+5 Volts
Ground
GND
+12V DC
GND
+12V DC
ATX12V
• DO NOT forget to connect the 4-pin ATX +12 V power plug; otherwise, the system will
not boot.
• We recommend that you use a power supply unit (PSU) with a higher power output
when configuring a system with more power-consuming devices when you intend to
install additional devices. The system may become unstable or may not boot up if the
power is inadequate.
• Ensure that your PSU can provide at least the minimum power required by your system.
• If you intent to use a PSU with 20-pin and 4-pin power plugs, ensure that the 20-pin
power plug can provide at least 15A on +12V and that the PSU has a minimum power
rating of 350 W. The system may become unstable or may not boot up if the power is
inadequate.
10. Speaker connector (4- pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
P5N73-AM
R
P5N73-AM Speaker Out Connector
SPEAKER
+5
V
GN
D
GN
D
Speaker Ou
t
1
