1-28 Chapter 1: Product introduction
Chapter 1
1.2.9 Internal connectors

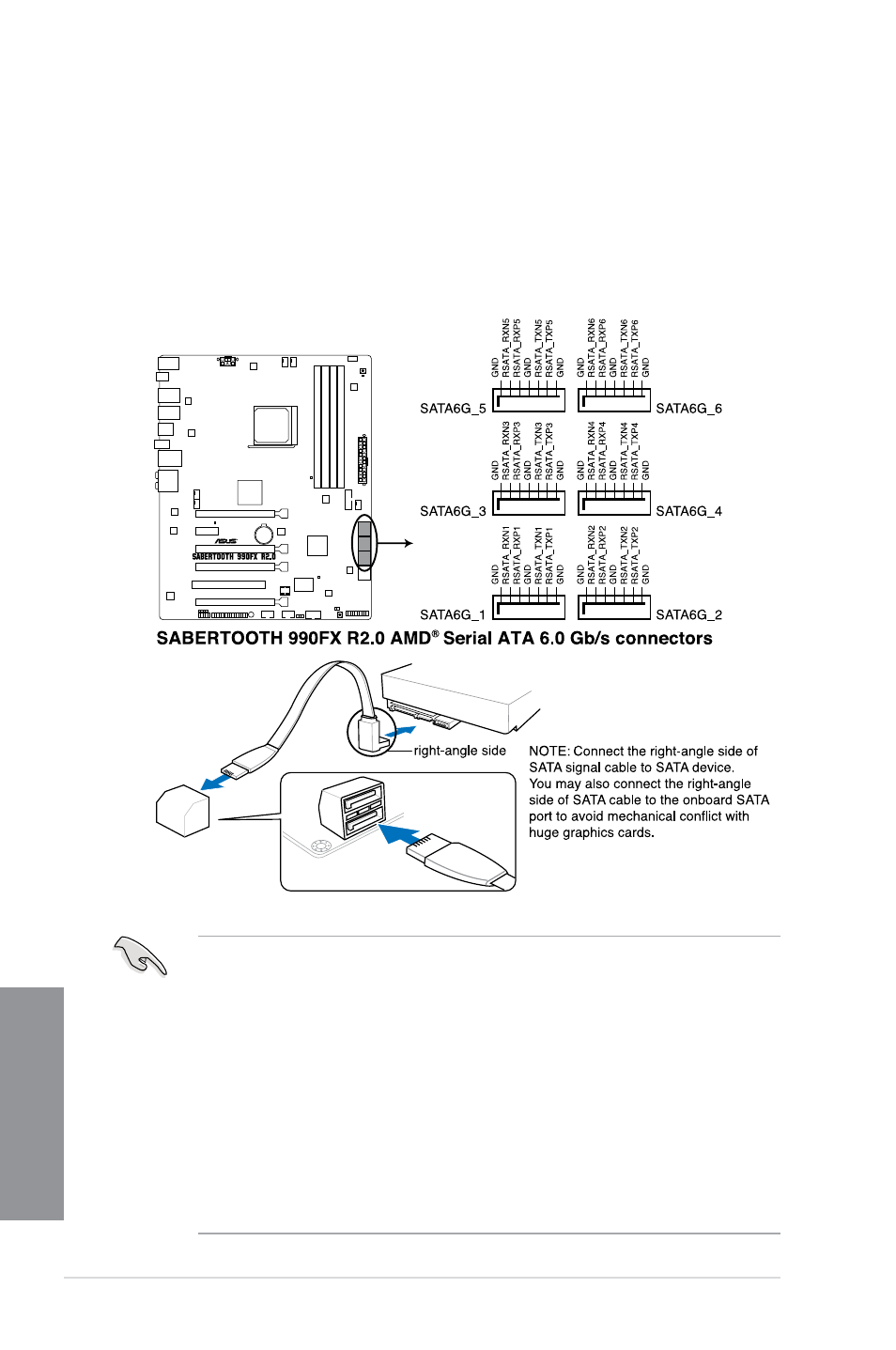

1. AMD ® Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-6 [brown])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10
configuration through the onboard AMD ® SB950 chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial
ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID
Mode]. Refer to section 3.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to section 5.1 RAID configurations or the manual
bundled in the motherboard support DVD.
• When creating a RAID set, set the SATA_5-6 connectors to [IDE Mode] to ensure that
the system recognizes your ODD device.
• When using NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer to section
3.5.4 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later versions before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP3 or later versions.
