ASUS CS-B 1-3
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN1/2) 1-16
2. ATX power connectors (24-pin EATXPWR, 8-pin ATX12V) 1-14
3. Intel ® LGA1150 CPU socket 1-3
4. DDR3 DIMM slots 1-7
5. Intel ® Q87 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~5 [brown]) 1-16
6. USB 3.0 connector (20-1 pin USB3_12) 1-17
7. Onboard LED (SB_PWR) 1-19
8. Speaker connector (4-pin SPEAKER) 1-14
9. System panel connector (10-1 pin F_PANEL) 1-18
10. Intel ® ME jumper (3-pin DIS_ME) 1-11
11. Clear RTC RAM (3-pin CLRTC) 1-10
12. USB 2.0 connectors (10-1 pin USB910, USB1112) 1-17
13. Serial port connectors (10-1 pin COM1, COM2) 1-13
14. LPT connector (26-1 pin LPT) 1-18
15. Chassis intrusion connector (4-1 pin CHASSIS) 1-15
16. Front panel audio connector (10-1 pin AAFP) 1-15
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium ® , and Celeron ® processors.

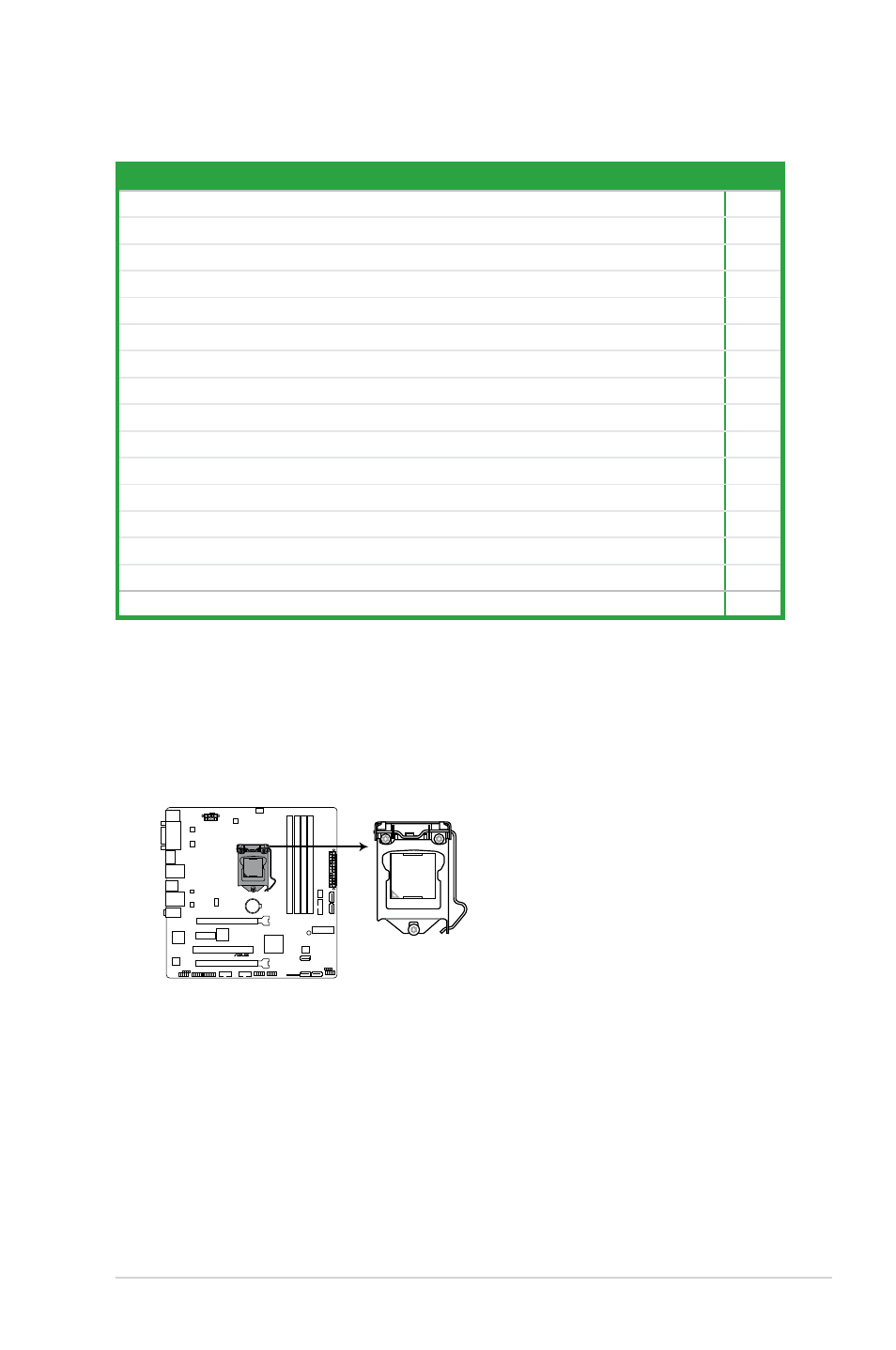

CS-B CPU socket LGA1150
CS-B
