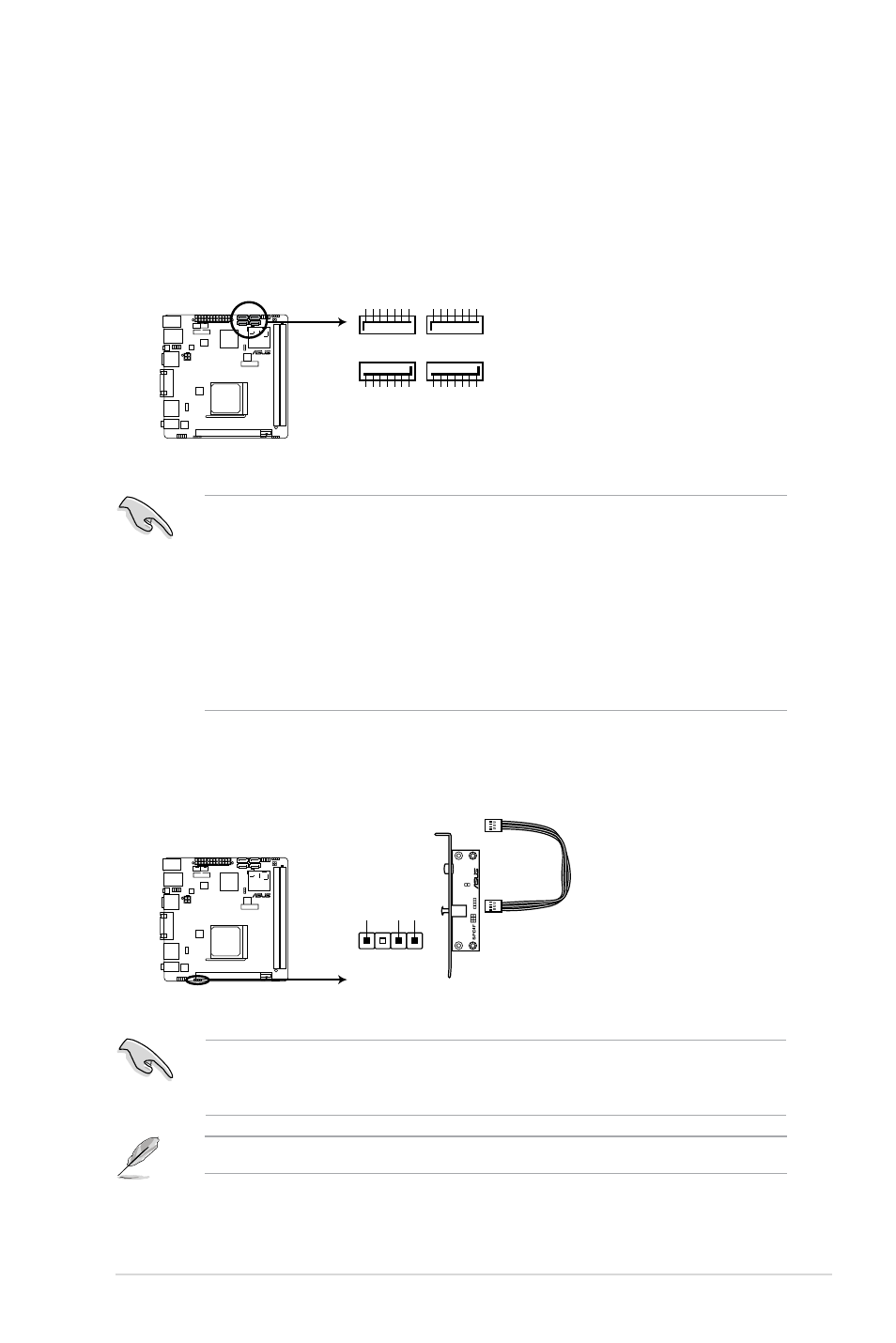

4. Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~4)
These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard
disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can
create a RAID 0, RAID 1, or RAID 10 configuration through the onboard controller.
• These connectors are set to IDE mode by default. In IDE mode, you can connect Serial
ATA boot/data hard disk drives to these connectors. If you intend to create a Serial ATA
RAID set using these connectors, set the type of the SATA connectors in the BIOS to
[RAID]. See section 2.5.2 SATA Configuration for details.
• You must install Windows ® XP Service Pack 3 or later version before using Serial
ATA hard disk drives. The Serial ATA RAID feature is available only if you are using
Windows ® XP SP3 or later version.
• When using hot-plug and NCQ, set the type of the SATA connectors in the BIOS to
[AHCI]. See section 2.5.2 SATA Configuration for details.
F1A75-I DELUXE
GN
D
RSATA_RXN3 RSATA_RXP3 RSATA_TXN3 RSATA_TXP3 GN
D
GN
D
SATA6G_3
GN
D
RSATA_RXN1 RSATA_RXP1 RSATA_TXN1 RSATA_TXP1 GN
D
GN
D
SATA6G_1
SATA6G_4
GN
D
RSATA_TXP4 RSATA_TXN
4
GN
D
RSATA_RXP4 RSATA_RXN4
GN
D
SATA6G_2
GN
D
RSATA_TXP2 RSATA_TXN
2
GN
D
RSATA_RXP2 RSATA_RXN2
GN
D
F1A75-I DELUXE SATA 6.0Gb/s connectors
5. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
Ensure that the audio device of Sound playback is Realtek High Definition Audio (the
name may be different based on the OS). Go to Start > Control Panel > Sounds and
Audio Devices > Sound Playback to configure the setting.
F1A75-I DELUXE
F1A75-I DELUXE Digital audio connector
SPDIF_OUT
+5
V
SPDIFOU
T
GND
The S/PDIF module is purchased separately.
ASUS F1A75-I DELUXE 1-25
